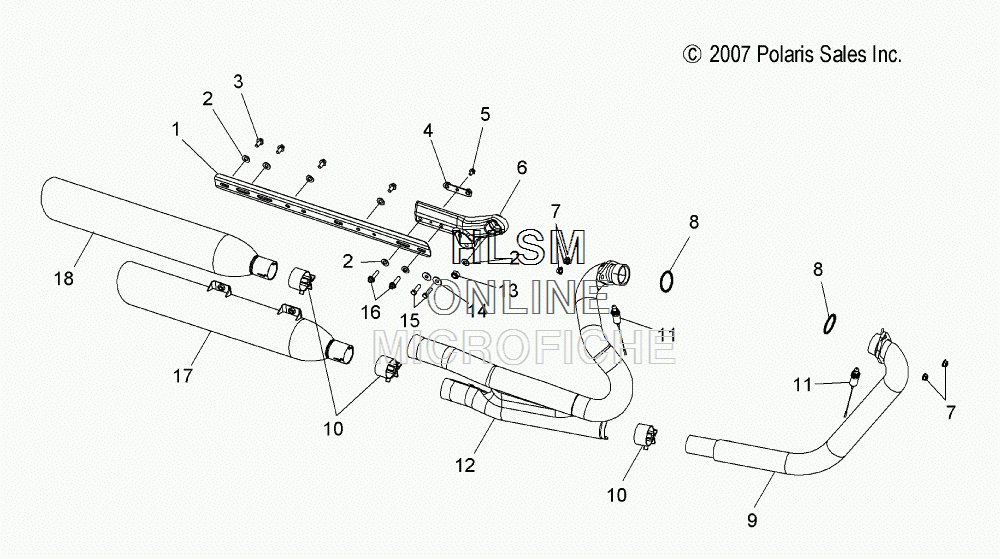

EXHAUST для Polaris VICTORY JUDGE [V14MB36] - 2014 года выпуска
-
№АртикулНазвание
-
15250030-408 BRACKET, MUFFLER TO MUFFLER, ZNBBRACKET, MUFFLER TO MUFFLER, ZNB
-
27556234 WASHER, FLATWASHER, FLAT
-
37519005 SCREWSCREW
-
41015173 PLATE, NUT, ZINCPLATE, NUT, ZINC
-
57518393 SCREWSCREW
-
65135691-468 SUPPORT, EXHAUST, BLACK AND ZSUPPORT, EXHAUST, BLACK AND Z
-
77547014 NUTNUT
-
85246008 GASKETGASKET
-
91262104-266 ASM., EXHAUST HEADPIPE, FRONT, BLACKASM., EXHAUST HEADPIPE, FRONT, BLACK
-
91261414-266 SHIELD, FRONT, BLACKSHIELD, FRONT, BLACK
-
97080774 CLAMP, HEAT SHIELDCLAMP, HEAT SHIELD
-
107081179 CLAMPCLAMP
-
114010430 SENSOR, OXYGENSENSOR, OXYGEN
-
121262012-266 ASM., EXHAUST HEAD PIPE, REAR, BLACKASM., EXHAUST HEAD PIPE, REAR, BLACK
-
121261394-266 SHIELD, MID REAR, BLACKSHIELD, MID REAR, BLACK
-
121261416-266 SHIELD, REAR, CYLINDER, UPPER, BLACKSHIELD, REAR, CYLINDER, UPPER, BLACK
-
121261417-266 SHIELD REAR, CYLINDER, LOWER, BLACKSHIELD REAR, CYLINDER, LOWER, BLACK
-
121261418-266 SHIELD, COLLECTOR, BLACKSHIELD, COLLECTOR, BLACK
-
127080774 CLAMP, HEAT SHIELDCLAMP, HEAT SHIELD
-
137547268 NUT, NYLOKNUT, NYLOK
-
147556352 WASHER, FLATWASHER, FLAT
-
157518443 SCREWSCREW
-
167518800 SCREWSCREW
-
171262242-266 MUFFLER, FRONT, BLACK (NORTH AMERICA)MUFFLER, FRONT, BLACK (NORTH AMERICA)
-
171262469-266 ASM., MUFFLER, FRONT, BLACK (INT'L)ASM., MUFFLER, FRONT, BLACK (INT'L)
-
181262241-266 MUFFLER, REAR, BLACK (NORTH AMERICA)MUFFLER, REAR, BLACK (NORTH AMERICA)
-
181262470-266 ASM., MUFFLER, REAR, BLACK (INT'L)ASM., MUFFLER, REAR, BLACK (INT'L)
