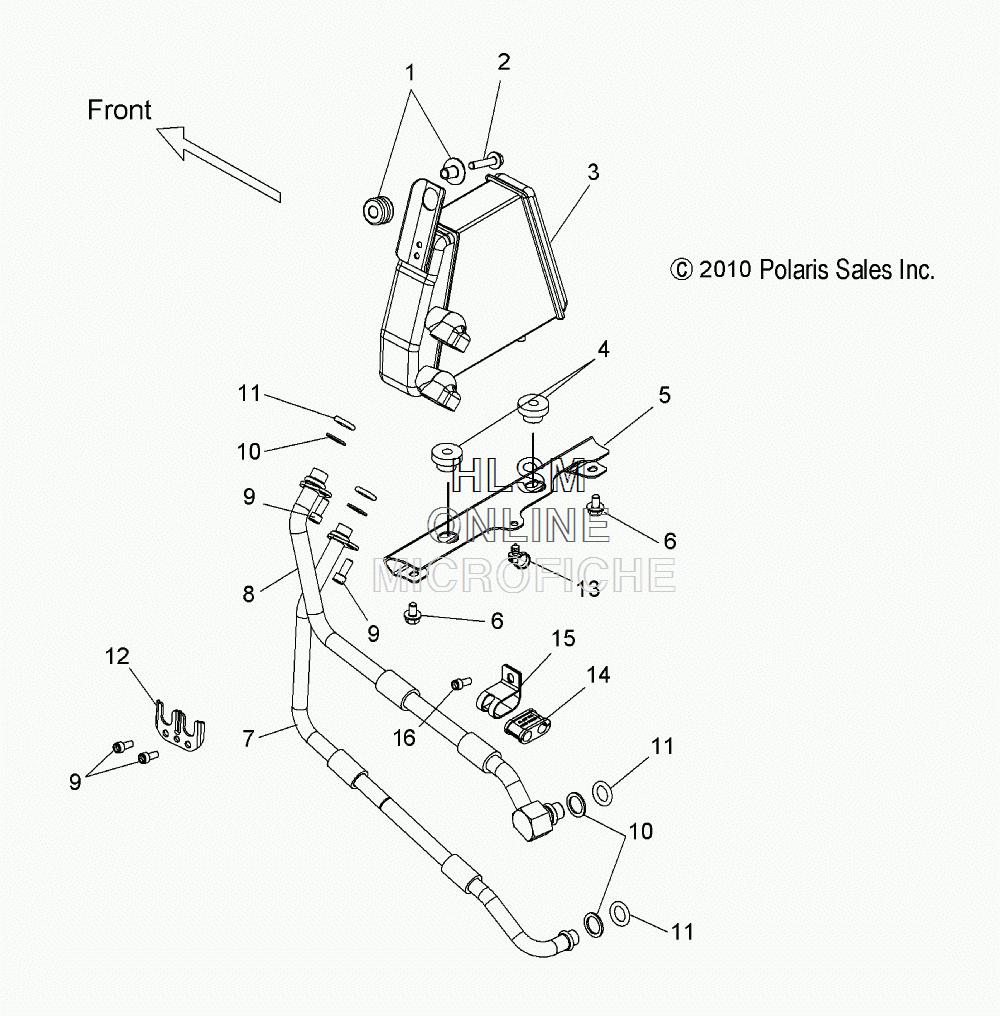

OIL COOLING SYSTEM для Polaris VICTORY JUDGE [V14MB36] - 2014 года выпуска
-
№АртикулНазвание
-
11016169 ASM., GROMMET AND INSERTASM., GROMMET AND INSERT
-
27518713 SCREWSCREW
-
31240266-266 COOLER, OIL, BLACK (INCL. 1)COOLER, OIL, BLACK (INCL. 1)
-
45410584 BUSHING, MOUNT, RADIATOR, LOWERBUSHING, MOUNT, RADIATOR, LOWER
-
55251230-266 BRACKET, OIL COOLER, LOWER, BLACKBRACKET, OIL COOLER, LOWER, BLACK
-
67518393 SCREWSCREW
-
72520780 ASM., OIL LINE, ENGINE OUTASM., OIL LINE, ENGINE OUT
-
82520781 ASM., OIL LINE, ENGINE INASM., OIL LINE, ENGINE IN
-
97517272 SCREWSCREW
-
107556380 RING, BACK-UPRING, BACK-UP
-
115411356 O-RINGO-RING
-
125135945 RETAINER, OIL LINERETAINER, OIL LINE
-
137081334 CABLE TIE, TREE MOUNTCABLE TIE, TREE MOUNT
-
145437099 GROMMET, OIL LINEGROMMET, OIL LINE
-
157081457 CLAMP, OIL LINECLAMP, OIL LINE
-
167519061 SCREWSCREW
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY AND FUSE BOX
- BRAKE LEVER AND MASTER CYLINDER
- BRAKE LINES AND RESERVOIR
- BRAKE PEDAL AND REAR MASTER CYLINDER
- CAMCHAIN
- CLUTCH
- CLUTCH LEVER
- CONTROLS AND MIRRORS
- CRANKCASE
- CRANKCASE BEARINGS
- CRANKSHAFT AND PISTON
- CYLINDER AND HEAD
- DECALS
- DRIVE SPROCKET W/ BELT- COVER- AND GUARD
- EXHAUST
- FENDER- FRONT
- FENDER- REAR
- FOOTPEGS LEFT AND RIGHT
- FOOTPEGS- PASSENGER
- FORK LOCK- INTL
- FRAME
- FRONT AND REAR CALIPER
- FRONT FORKS
- FUEL SYSTEM- EVAP SYSTEM (CA)
- FUEL TANK
- GAUGES AND INDICATORS
- HANDLEBAR MOUNTING
- HEADLIGHT
- IDLE AIR CONTROL
- IGNITION SYSTEM
- MOUNTING
- • OIL COOLING SYSTEM
- OIL PUMP ASM.
- OIL PUMP MOUNTING AND DIPSTICK
- PRIMARY DRIVE
- REAR ASM.
- REFERENCES- MANUALS AND INFORMATION
- SEAT
- SHIFT FORKS AND DRUM
- SHIFT LINKAGE
- SHOCK
- SIDE COVER
- SIDE COVERS
- SIDE STAND
- STARTING SYSTEM
- SWING ARM
- SWITCHES AND SENSORS AND COMPONENTS
- TAILLIGHT AND LICENSE PLATE LIGHT
- THROTTLE BODY ASM.
- TRANSMISSION (6 SPEED)
- TURN SIGNALS
- VALVE COVERS
- VALVE TRAIN
- WHEELS- FRONT
- WHEELS- REAR
- WIRE HARNESSES
