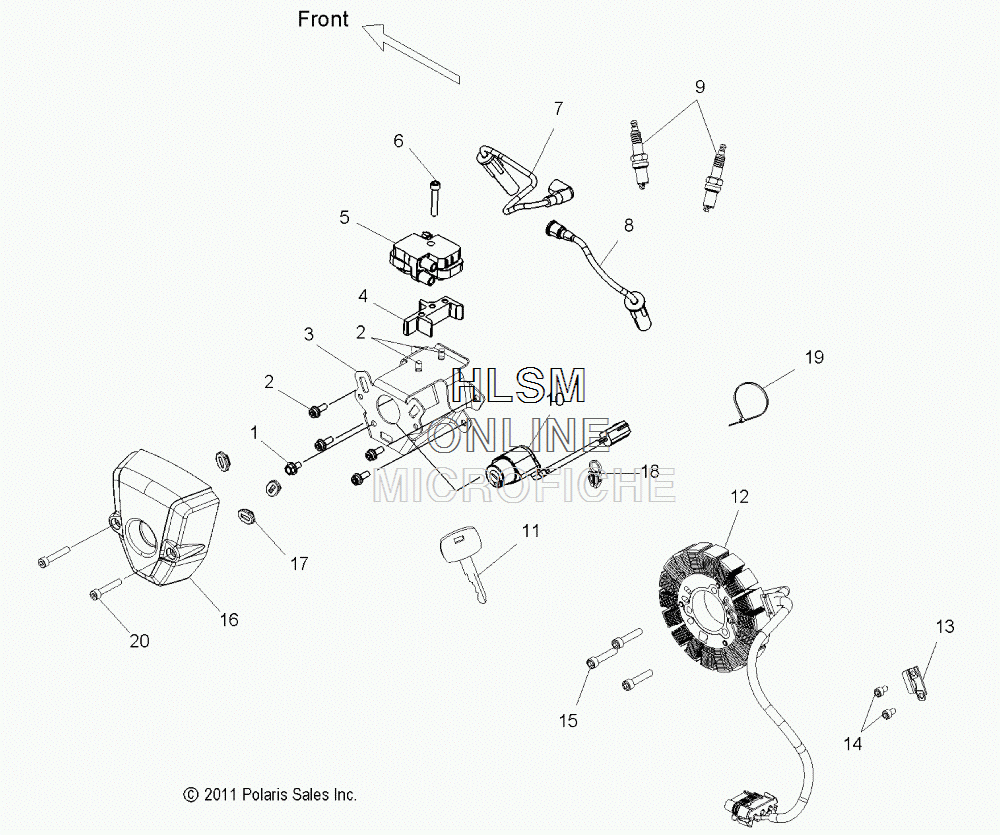

IGNITION SYSTEM для Polaris VICTORY JUDGE [V14MB36] - 2014 года выпуска
-
№АртикулНазвание
-
17517704 SCREWSCREW
-
27518803 SCREWSCREW
-
35255393 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
45510601 SPACER, IGNITION COILSPACER, IGNITION COIL
-
54010425 COIL, EFICOIL, EFI
-
67517259 SCREWSCREW
-
74012733 LEAD, SPARK PLUG (FRONT CYLINDER)LEAD, SPARK PLUG (FRONT CYLINDER)
-
84012746 LEAD, SPARK PLUG (REAR CYLINDER)LEAD, SPARK PLUG (REAR CYLINDER)
-
93070202 PLUG, SPARK, DCPR6EPLUG, SPARK, DCPR6E
-
104012376-266 ASM., IGNITION SWITCH/FUEL CAP, BLACKASM., IGNITION SWITCH/FUEL CAP, BLACK
-
104012377-266 ASM., IGNITION/FUEL/FORK LOCK, INT'L, BLACK (INTL)ASM., IGNITION/FUEL/FORK LOCK, INT'L, BLACK (INTL)
-
114110239 KEY, BLANKKEY, BLANK
-
124012715 STATOR, CHARGING, 20 MAGSTATOR, CHARGING, 20 MAG
-
135251115 CLIP, STATOR WIRECLIP, STATOR WIRE
-
147517847 SCREWSCREW
-
157517301 SCREWSCREW
-
165632602-463 COVER, IGNITION/COIL, LEFT HAND, FLAT BLACKCOVER, IGNITION/COIL, LEFT HAND, FLAT BLACK
-
175414353 BUSHING, RECTANGULARBUSHING, RECTANGULAR
-
187080756 CLIP, SNAP-INCLIP, SNAP-IN
-
197080138 CABLE TIECABLE TIE
-
207519370 SCREWSCREW
