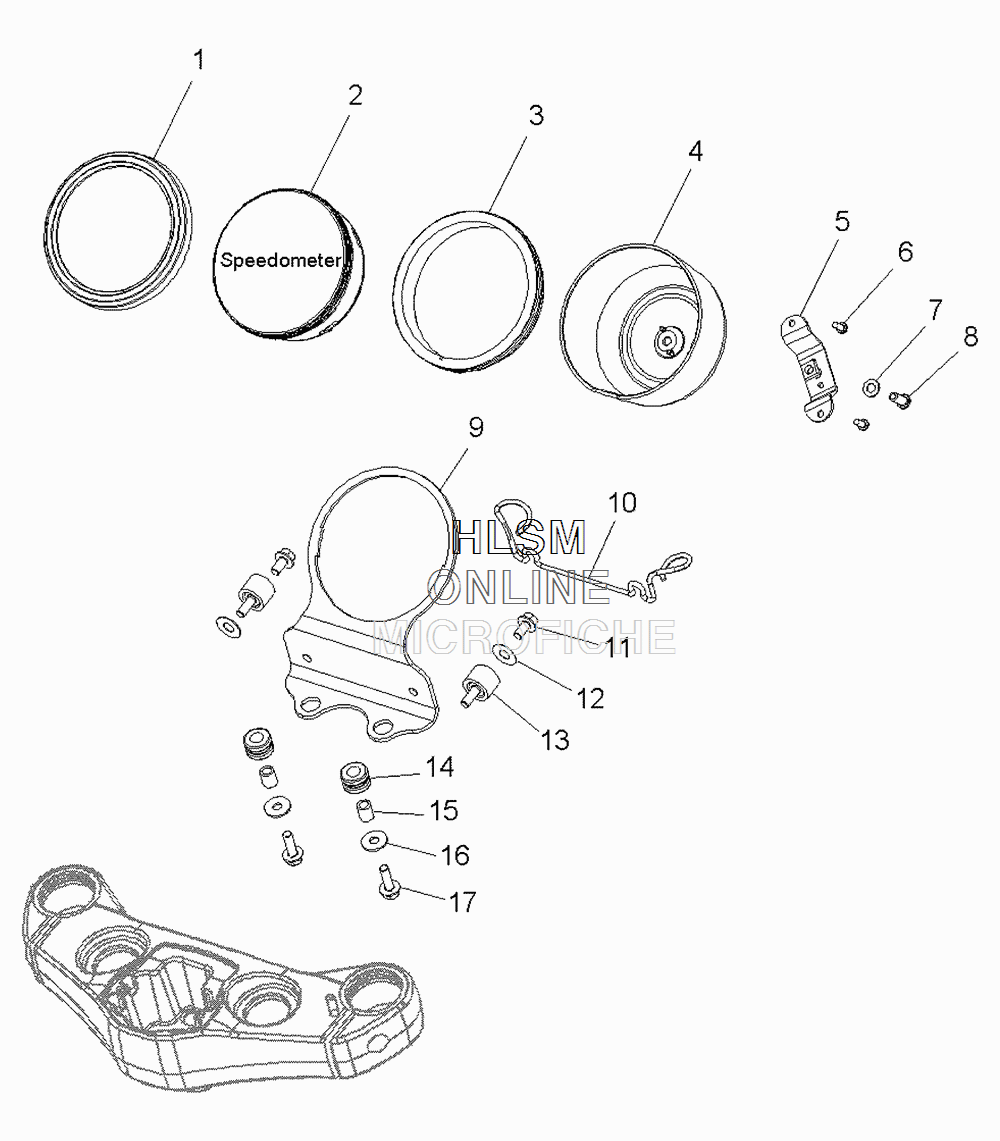

GAUGES AND INDICATORS для Polaris JUDGE [V16MW36ED] [INTERNATIONAL] - 2016 года выпуска
-
№АртикулНазвание
-
15438428-156 COVER, SPEEDOMETER BEVEL, CHROMECOVER, SPEEDOMETER BEVEL, CHROME
-
23280587 ASM., CLUSTERASM., CLUSTER
-
35438389 GROMMET, GAUGEGROMMET, GAUGE
-
45438621-156 COVER, SPEEDOMETER, CHROMECOVER, SPEEDOMETER, CHROME
-
51016677 BRACKET, GAUGE CUPBRACKET, GAUGE CUP
-
67518864 SCREWSCREW
-
77556088 WASHERWASHER
-
87519025 SCREWSCREW
-
95254043-156 BRACKET, SPEEDOMETER MOUNT, CHROMEBRACKET, SPEEDOMETER MOUNT, CHROME
-
105337979-266 LOOM, WIRE, BAR CABLE, SHRT (BLACK)LOOM, WIRE, BAR CABLE, SHRT (BLACK)
-
117517704 SCREWSCREW
-
127556379 WASHERWASHER
-
135412297 MOUNT, ISOLATORMOUNT, ISOLATOR
-
145412201 GROMMETGROMMET
-
155133550 SLEEVESLEEVE
-
167556064 WASHERWASHER
-
177518141 SCREWSCREW
