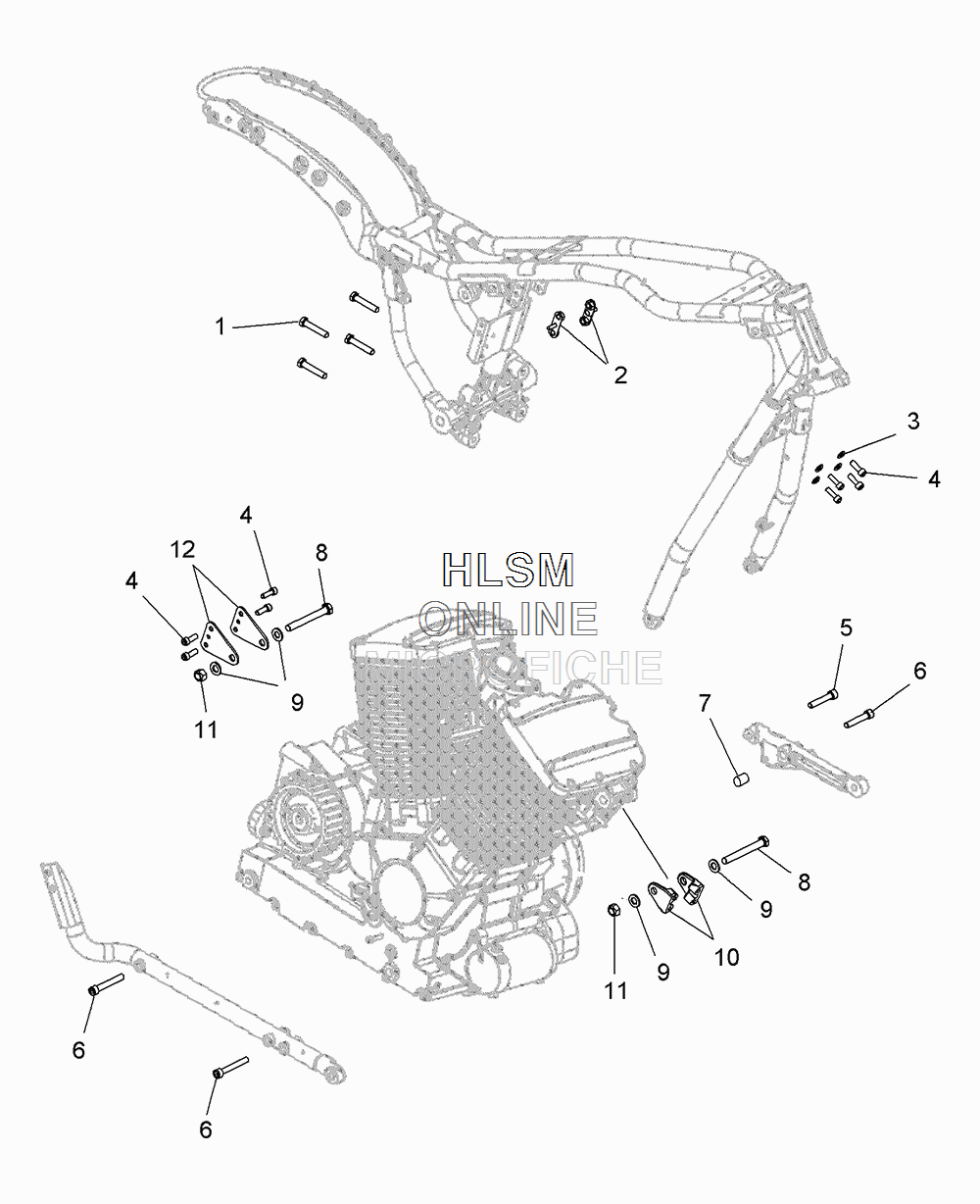

MOUNTING для Polaris JUDGE [V16MW36ED] [INTERNATIONAL] - 2016 года выпуска
-
№АртикулНазвание
-
17517365 SCREWSCREW
-
21013889 PLATE, NUTPLATE, NUT
-
37556305 WASHER, FLATWASHER, FLAT
-
47518053 SCREWSCREW
-
57518146 SCREWSCREW
-
67518099 SCREWSCREW
-
75133693 DOWELDOWEL
-
87518125 SCREWSCREW
-
97556287 WASHER, FLATWASHER, FLAT
-
105135455-408 MOUNT, ENGINE, FRONT, ZNB (BLACK)MOUNT, ENGINE, FRONT, ZNB (BLACK)
-
117547232 NUTNUT
-
125246366-408 BRACKET, ENGINE MOUNT, REAR, ZNB (BLACK)BRACKET, ENGINE MOUNT, REAR, ZNB (BLACK)
