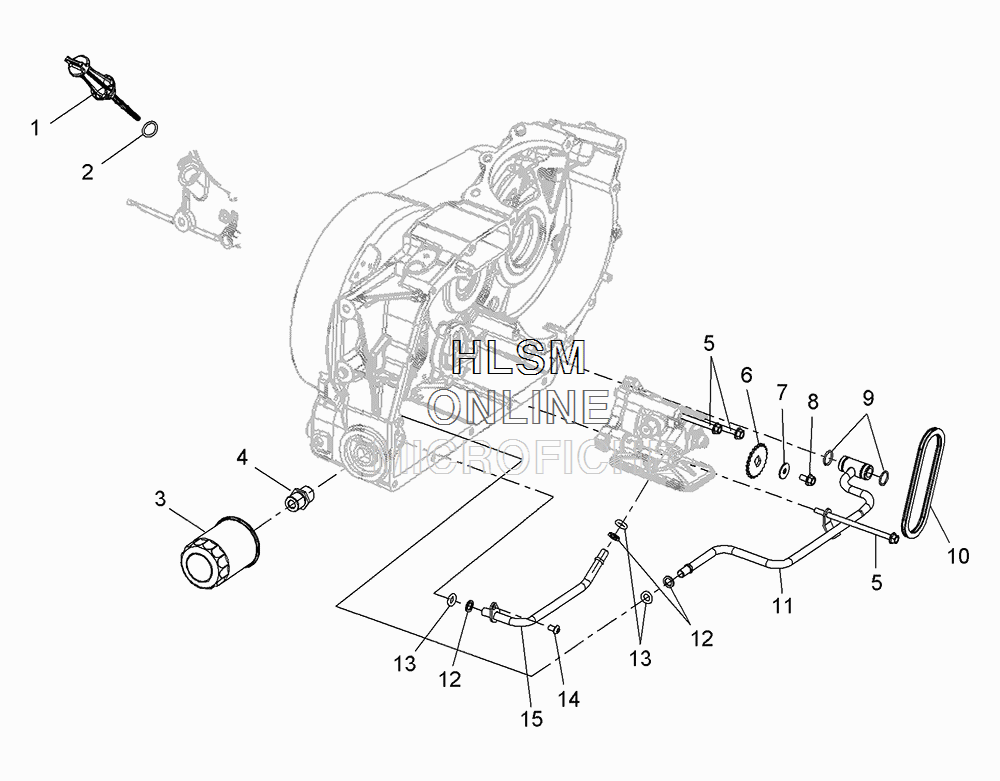

OIL PUMP MOUNTING AND DIPSTICK для Polaris JUDGE [V16MW36ED] [INTERNATIONAL] - 2016 года выпуска
-
№АртикулНазвание
-
15434349 DIPSTICK, OIL FILLDIPSTICK, OIL FILL
-
25411331 O-RINGO-RING
-
32540086 FILTER, OILFILTER, OIL
-
42521388 NIPPLENIPPLE
-
57517256 SCREWSCREW
-
63222150 SPROCKET, 23TSPROCKET, 23T
-
77556054 WASHER, FLATWASHER, FLAT
-
87517257 SCREWSCREW
-
95412002 O-RINGO-RING
-
103221173 CHAINCHAIN
-
112520790 TUBE, FILTER/CRANKCASETUBE, FILTER/CRANKCASE
-
127556026 WASHERWASHER
-
135411231 O-RINGO-RING
-
147519063 SCREW, TRXSCREW, TRX
-
152521074 TUBE, OIL, OUTLETTUBE, OIL, OUTLET
