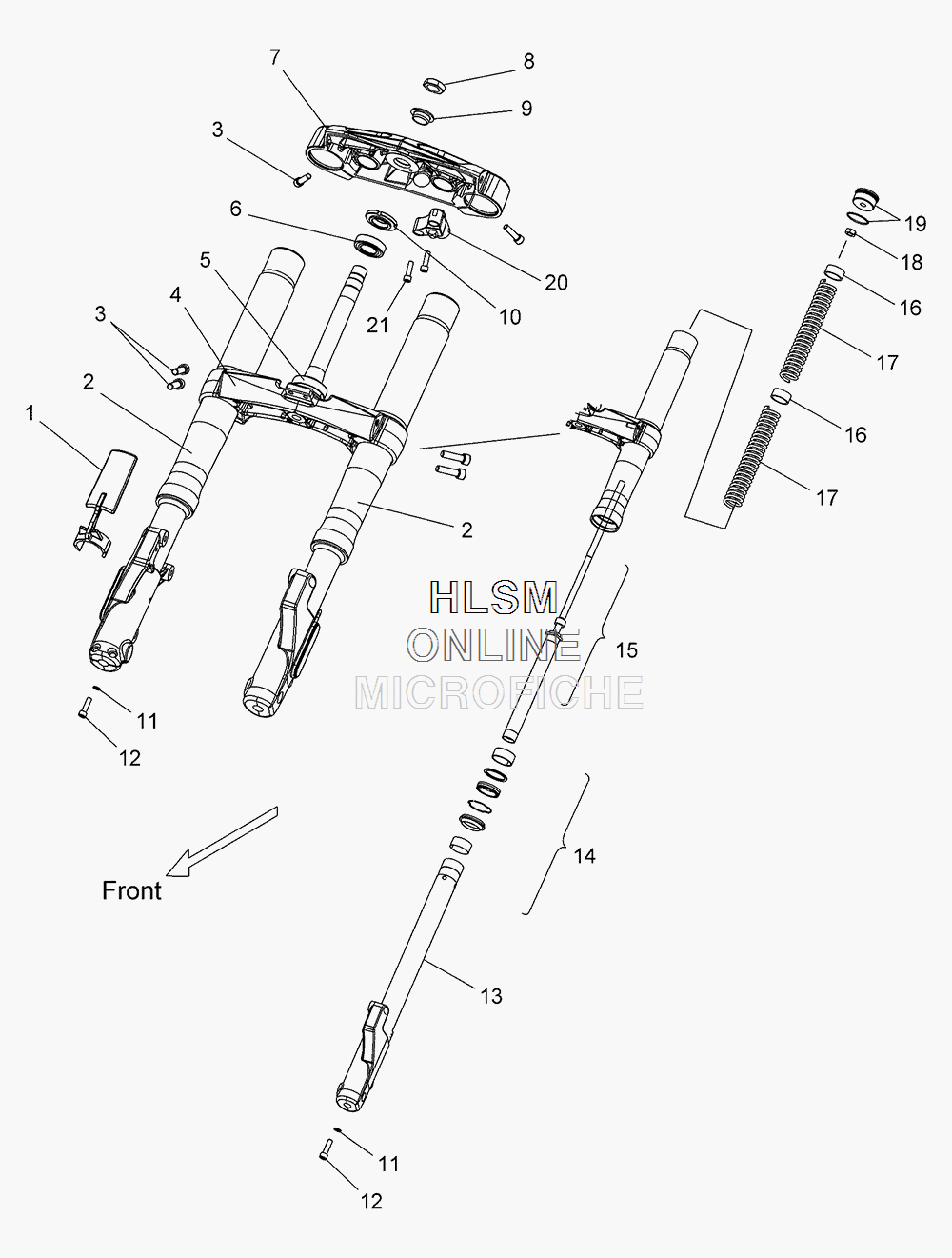

FRONT FORKS для Polaris MAGNUM [V16YW36NF] - 2016 года выпуска
-
№АртикулНазвание
-
15438283 GUARD, FORK, INV., CHROMEGUARD, FORK, INV., CHROME
-
21824167-067 ASM., FORK LEG, 21'' TIRE, LH, BLACKASM., FORK LEG, 21'' TIRE, LH, BLACK
-
21824168-067 ASM., FORK LEG, 21'' TIRE, RH, BLACKASM., FORK LEG, 21'' TIRE, RH, BLACK
-
37517361 SCREWSCREW
-
41823697-067 ASM., LOWER TRIPLE CLAMP, BLACKASM., LOWER TRIPLE CLAMP, BLACK
-
53514416 BEARING, NEEDLEBEARING, NEEDLE
-
63514549 BEARING, BALLBEARING, BALL
-
75136369-463 CLAMP, UPPER, FLAT BLACKCLAMP, UPPER, FLAT BLACK
-
85134148 NUT, TOP, TRIPLE CLAMPNUT, TOP, TRIPLE CLAMP
-
95137035 SPACER, STEERINGSPACER, STEERING
-
105134094 NUT, STEERING HEADNUT, STEERING HEAD
-
111500798 PACKINGPACKING
-
127519082 BOLTBOLT
-
135139845-067 TUBE, INNER, 21'', LH, BLACK (INCL. 3)TUBE, INNER, 21'', LH, BLACK (INCL. 3)
-
135139846-067 TUBE, INNER, 21'', RH, BLACK (INCL. 3)TUBE, INNER, 21'', RH, BLACK (INCL. 3)
-
142204214 KIT, SEALS AND BUSHINGKIT, SEALS AND BUSHING
-
155139847 CARTRIDGE, 21''CARTRIDGE, 21''
-
167556548 GUIDE, SPRING, LOWERGUIDE, SPRING, LOWER
-
167556549 GUIDE, SPRING, UPPERGUIDE, SPRING, UPPER
-
177044381 SPRING, UPPER, 21''SPRING, UPPER, 21''
-
177044380 SPRING, LOWER, 21''SPRING, LOWER, 21''
-
187547446 NUTNUT
-
195139848 CAP, BLACK (INCL. O-RING)CAP, BLACK (INCL. O-RING)
-
195413723 SEAL, O-RINGSEAL, O-RING
-
201016137 ASM., FORK LOCKASM., FORK LOCK
-
217518142 SCREWSCREW
