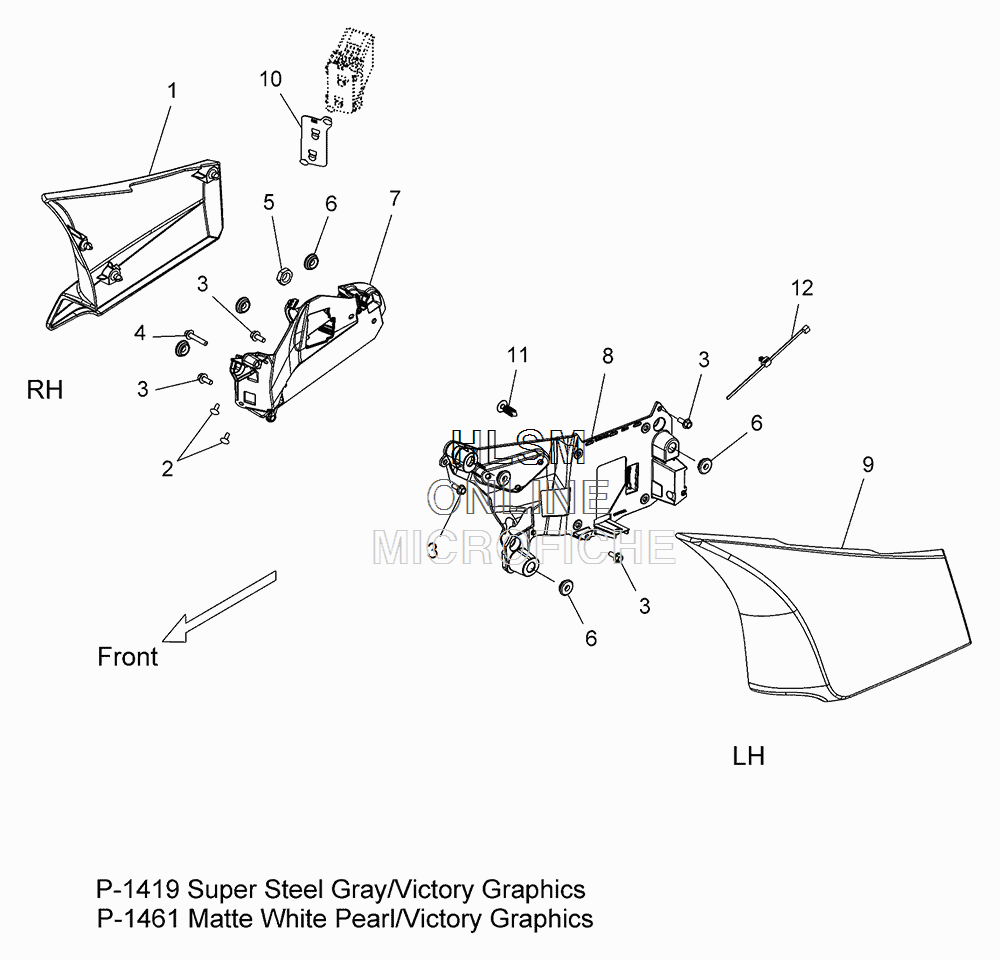

SIDE COVER для Polaris MAGNUM [V16YW36NF] - 2016 года выпуска
-
№АртикулНазвание
-
15437589-1419 COVER, SIDE, RH (STEEL GRAY W/ GRAPHICS)COVER, SIDE, RH (STEEL GRAY W/ GRAPHICS)
-
15437589-1461 COVER, SIDE, RH (WHITE PEAR W/ GRAPHICS)COVER, SIDE, RH (WHITE PEAR W/ GRAPHICS)
-
27661949 RIVETRIVET
-
37518591 SCREWSCREW
-
47516827 SCREWSCREW
-
57547148 NUT, JAMNUT, JAM
-
65413055 GROMMET, ROUNDGROMMET, ROUND
-
75437730 BRACKET, UNDER SEAT, RHBRACKET, UNDER SEAT, RH
-
85437729 BRACKET, UNDER SEAT, LHBRACKET, UNDER SEAT, LH
-
95437588-1419 COVER, SIDE, LH (STEEL GRAY W/ GRAPHICS)COVER, SIDE, LH (STEEL GRAY W/ GRAPHICS)
-
95437588-1461 COVER, SIDE, LH (WHITE PEAR W/ GRAPHICS)COVER, SIDE, LH (WHITE PEAR W/ GRAPHICS)
-
105252457 PLATE, FUSE BOXPLATE, FUSE BOX
-
117670141 CLIP, PLASTIC DART, BLACKCLIP, PLASTIC DART, BLACK
-
127081496 CLIP, ROUTINGCLIP, ROUTING
