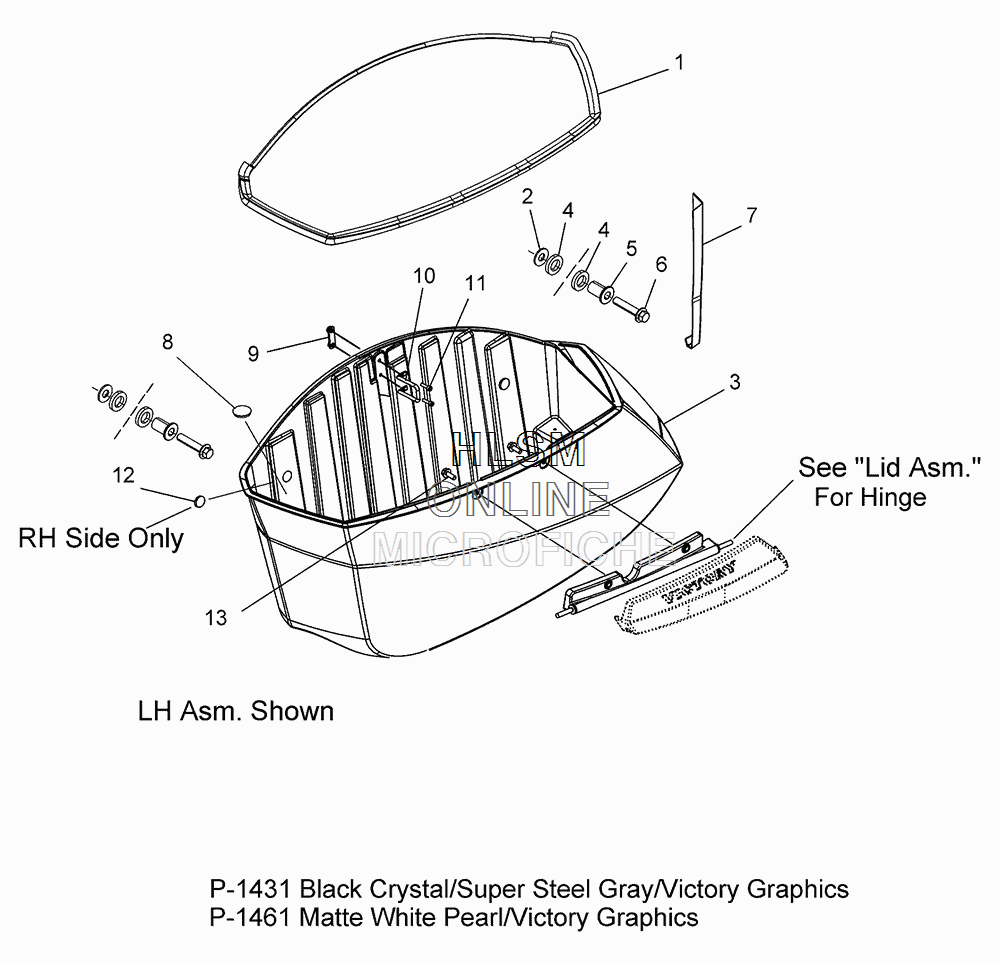

SADDLEBAG ASSEMBLY для Polaris MAGNUM [V16YW36NF] - 2016 года выпуска
-
№АртикулНазвание
-
15521994 SEAL, SADDLEBAGSEAL, SADDLEBAG
-
27555801 WASHERWASHER
-
35438372-1431 BIN, SADDLEBAG, LH (BLACK CRYSTAL/SUPER STEEL W/ GRAPHICS)BIN, SADDLEBAG, LH (BLACK CRYSTAL/SUPER STEEL W/ GRAPHICS)
-
35438373-1431 BIN, SADDLEBAG, RH (BLACK CRYSTAL/SUPER STEEL W/ GRAPHICS)BIN, SADDLEBAG, RH (BLACK CRYSTAL/SUPER STEEL W/ GRAPHICS)
-
35438372-1461 BIN, SADDLEBAG, LH (PEARL WHITE W/ GRAPHICS)BIN, SADDLEBAG, LH (PEARL WHITE W/ GRAPHICS)
-
35438373-1461 BIN, SADDLEBAG, RH (PEARL WHITE W/ GRAPHICS)BIN, SADDLEBAG, RH (PEARL WHITE W/ GRAPHICS)
-
45814123 WASHER, RUBBERWASHER, RUBBER
-
55139549 BUSHING, SADDLEBAGBUSHING, SADDLEBAG
-
67518591 SCREWSCREW
-
75438386 SEAL, BAG, CORNER, LHSEAL, BAG, CORNER, LH
-
75438387 SEAL, BAG, CORNER, RHSEAL, BAG, CORNER, RH
-
85413545 GROMMET, 12V, POWERLETGROMMET, 12V, POWERLET
-
91016590 ASM., BRACKET, HOOPASM., BRACKET, HOOP
-
105335316 HOOP, LATCH STRIKERHOOP, LATCH STRIKER
-
117520191 SCREWSCREW
-
125413122 GROMMET, TANK COVER (RH ONLY)GROMMET, TANK COVER (RH ONLY)
-
137520191 SCREWSCREW
