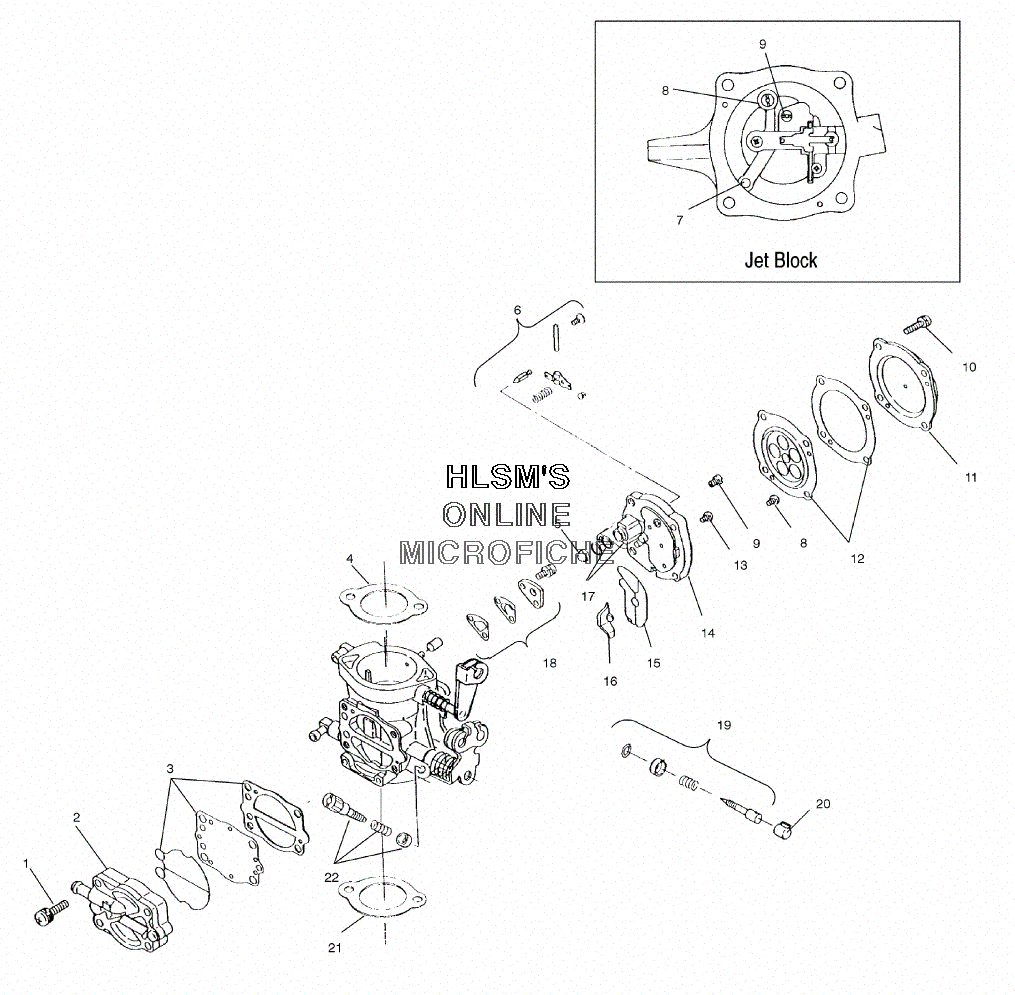

CARBURETOR для Polaris Virage 3-Pass Euro - 2000 года выпуска
-
№АртикулНазвание
-
1A1253334 CARBURETOR ASSY. (KEIHIN)CARBURETOR ASSY. (KEIHIN)
-
1B2200910 CARBURETOR REBUILD KIT (INCL. 8, 15, 21)CARBURETOR REBUILD KIT (INCL. 8, 15, 21)
-
13050136 SCREWSCREW
-
22200687 FUEL PUMP BODY KIT (KEIHIN)FUEL PUMP BODY KIT (KEIHIN)
-
32200686 GASKET KIT (FUEL PUMP)GASKET KIT (FUEL PUMP)
-
45830062 GASKET, CARBURETOR (UPPER)GASKET, CARBURETOR (UPPER)
-
53050144 SCREEN, FUELSTRAINERSCREEN, FUELSTRAINER
-
62200733 NDLE VLVE KIT (97DOM)NDLE VLVE KIT (97DOM)
-
73050117 JET MAIN, 120 KEIHINJET MAIN, 120 KEIHIN
-
83050193 JET MAIN, 158 KEIHINJET MAIN, 158 KEIHIN
-
93050133 JET PILOT, 78 KEIHINJET PILOT, 78 KEIHIN
-
103050135 SCREW, JET BLOCK COVERSCREW, JET BLOCK COVER
-
113050139 COVER, JET BLOCKCOVER, JET BLOCK
-
122200730 DIAPHRAGM JET BLOCK KITDIAPHRAGM JET BLOCK KIT
-
133050137 SCREW, JET BLOCKSCREW, JET BLOCK
-
143050204 BLOCK, JET (KEIHIN)BLOCK, JET (KEIHIN)
-
153050147 O-RING, JET BLOCKO-RING, JET BLOCK
-
163050138 COLLARCOLLAR
-
173050148 O-RING (VALVE SEAT)O-RING (VALVE SEAT)
-
182200688 CHECKVALVE, MAIN KIT (KEIHIN)CHECKVALVE, MAIN KIT (KEIHIN)
-
192200689 IDLE SCREW KIT (KEIHIN)IDLE SCREW KIT (KEIHIN)
-
203050140 CAP, LIMITERCAP, LIMITER
-
215830043 GASKET, CARBURETORGASKET, CARBURETOR
-
222200731 IDLE STOP SCREW KITIDLE STOP SCREW KIT
