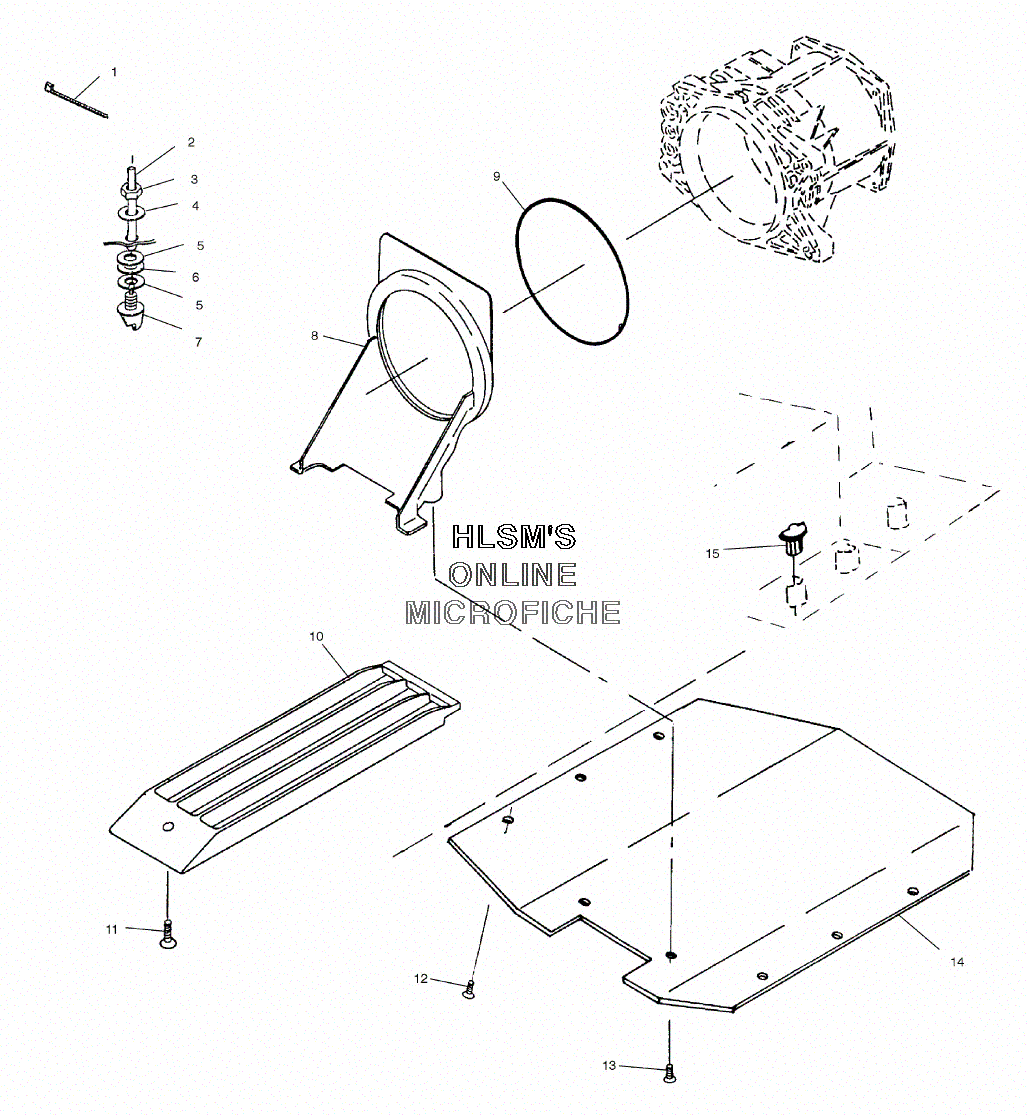

INTAKE GRATE W/ RIDE PLATE для Polaris Virage 3-Pass Euro - 2000 года выпуска
-
№АртикулНазвание
-
17080483 CABLE TIE (4 IN.)CABLE TIE (4 IN.)
-
28450070-190 PITOT LINE, FORMED (90 DEG) (345 CM)PITOT LINE, FORMED (90 DEG) (345 CM)
-
37547003 NUTNUT
-
47555873 WASHER, FLAT NYLONWASHER, FLAT NYLON
-
55810879 GASKET, PITOTGASKET, PITOT
-
67555848 WASHER, FLATWASHER, FLAT
-
75431634 FITTING, PILOT MOLDEDFITTING, PILOT MOLDED
-
85131602 SCOOP, INLETSCOOP, INLET
-
95410652 O-RINGO-RING
-
105630542-067 GRATE, INLET (BLACK)GRATE, INLET (BLACK)
-
117515155 BOLTBOLT
-
127517267 SCREWSCREW
-
137515126 BOLTBOLT
-
145630659 PLATE, RIDE (BLACK)PLATE, RIDE (BLACK)
