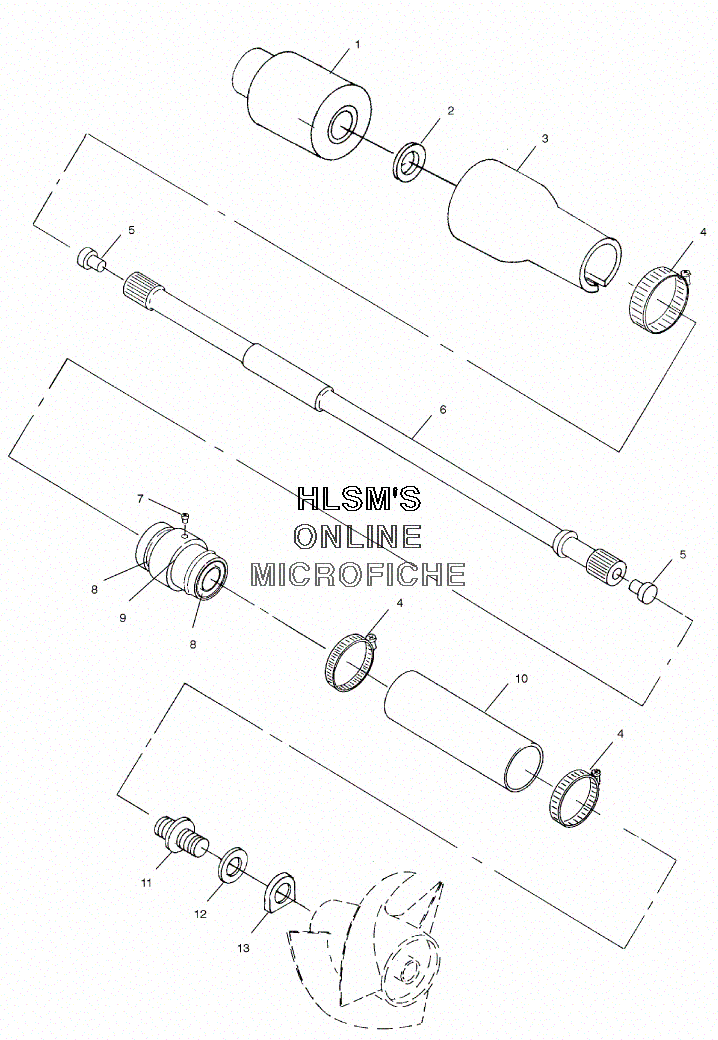

REVERSE для Polaris Virage i 3-Pass Euro - 2002 года выпуска
![](/wa-data/public/shop/sheme/polaris/pwc/1dc6b4b7-a52e-4f72-a10e-e1ff97d6ac47.gif)
-
№АртикулНазвание
-
15433677-070 CAP, REVERSE HANDLE (BLACK)CAP, REVERSE HANDLE (BLACK)
-
27516816 SCREWSCREW
-
37516805 SCREWSCREW
-
47517669 SCREWSCREW
-
57661040 RIVET POPRIVET POP
-
65434066 FLANGE, BASE REVERSEFLANGE, BASE REVERSE
-
75811982 GASKETGASKET
-
85433643 PLATE, BASE REVERSEPLATE, BASE REVERSE
-
95434067 REVERSE CAMSHAFT KITREVERSE CAMSHAFT KIT
-
107556094 WASHERWASHER
-
117546705 NUT (6 MM)NUT (6 MM)
-
125433955 REVERSE CAMSHAFT KITREVERSE CAMSHAFT KIT
-
137546704 NUT, NYLOKNUT, NYLOK
-
147555856 WASHER, FLATWASHER, FLAT
-
157516806 BOLTBOLT
-
167041888 SPRING, COMPRESSIONSPRING, COMPRESSION
-
175433676 ARM, REVERSE LOCKARM, REVERSE LOCK
-
187555837 WASHER, FLATWASHER, FLAT
-
197511882 SCREWSCREW
-
205412058 BRACKET, LOCK ARM SUPPORTBRACKET, LOCK ARM SUPPORT
-
217512049 SCREWSCREW
-
227555857 WASHERWASHER
-
232410241 SWITCH RVS, LIMIT SEALEDSWITCH RVS, LIMIT SEALED
-
245245180 BRACKET, REVERSE SUPPORTBRACKET, REVERSE SUPPORT
-
257661010 PIN, COTTERPIN, COTTER
-
265433871 ARM, REVERSEARM, REVERSE
-
275433647 BUSHING, FLANGEBUSHING, FLANGE
-
287041995 SPRING, COMPRESSIONSPRING, COMPRESSION
-
295433673 PLUNGER, DETENTPLUNGER, DETENT
-
305245634 BRACKET REVERSE PLATE W/STUD (REAR)BRACKET REVERSE PLATE W/STUD (REAR)
-
317661041 RIVETRIVET
-
325245635 BRACKET REVERSE PLATE, FORWARD W/STUDBRACKET REVERSE PLATE, FORWARD W/STUD
-
335433605-070 HANDLE REVERSE (BLACK)HANDLE REVERSE (BLACK)
-
347080899 CABLE, REVERSECABLE, REVERSE
-
354010051-100 CONDUIT CONVOLUTED (100 CM)CONDUIT CONVOLUTED (100 CM)
-
367080138 CABLE TIECABLE TIE
-
377542528 NUTNUT
-
387556232 WASHER FLATWASHER FLAT
-
397571625 WASHER, LOCKWASHER, LOCK
-
405411818 SEAL, RODSEAL, ROD
-
415412206 SEAL ROD, 1/4'' STEERING CABLESEAL ROD, 1/4'' STEERING CABLE
-
427542150 NUTNUT
-
437061062 ROD, END (1/4 28X.375)ROD, END (1/4 28X.375)
-
447555839 WASHER, FLATWASHER, FLAT
-
455434049 GATE REVERSE, DIRECTIONALGATE REVERSE, DIRECTIONAL
-
467661117 PIN, CLEVISPIN, CLEVIS
-
477555866 WASHERWASHER
-
485020683 COLLARCOLLAR
-
497555874 WASHER, FLATWASHER, FLAT
-
507515368 BOLTBOLT
-
515434272 BRACKET, REVERSE STOP PLASTIC GATEBRACKET, REVERSE STOP PLASTIC GATE
Все узлы модели:
- AIR INLET - ENGINE AND HULL
- AIR INTAKE SYSTEM
- BATTERY BOX
- BILGE PUMP
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTONS
- CYLINDER W/ INTAKE
- DECALS
- DRIVE SHAFT W/ COUPLER
- ELECTRICAL BOX
- ELECTRONIC MODULE
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL SYSTEM
- FUEL TANK
- HANDLEBAR ASSY. W/ STEERING COLUMN
- HULL
- INTAKE GRATE W/ RIDE PLATE
- MAGNETO
- OIL PUMP
- OIL TANK
- PROPULSION
- • REVERSE
- SEAT
- SHROUD W/ INSTRUMENTS AND MIRRORS
- STARTING MOTOR
- STEERING CABLE ASSY.
- STORAGE COMPARTMENT - FRONT
- THROTTLE BODY ASSY.
- TOOL KIT
