STEERING CABLE ASSY. для Polaris Virage i 3-Pass Euro - 2002 года выпуска

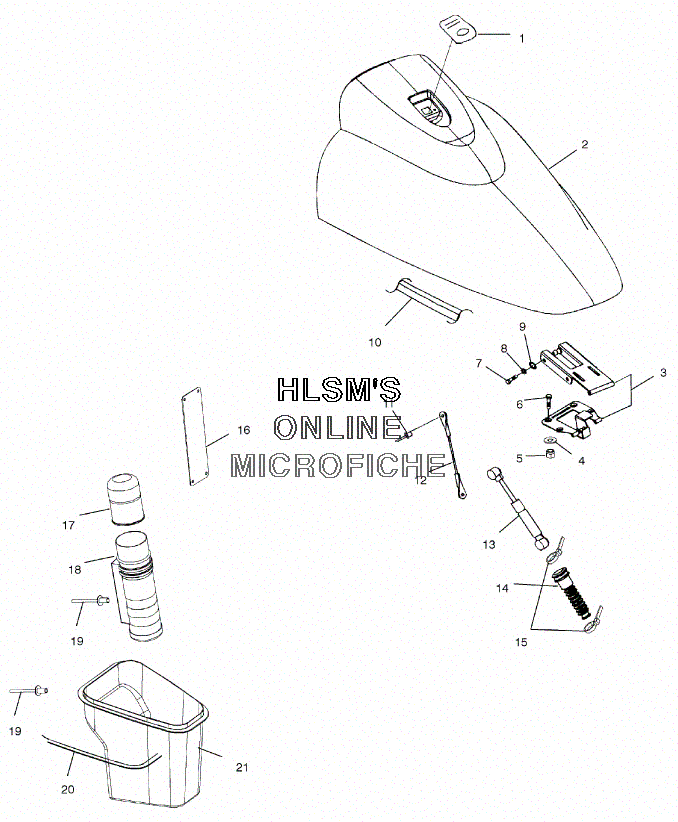

![](/wa-data/public/shop/sheme/polaris/pwc/fcf2f64d-73a3-4b67-a68e-a8fda76722a4.gif)
-
№АртикулНазвание
-
17542150 NUTNUT
-
27515120 BOLTBOLT
-
37555839 WASHER, FLATWASHER, FLAT
-
47060170 ROD ENDROD END
-
57542133 NUT, NYLOKNUT, NYLOK
-
61860115 SEAL, WASHER STEERINGSEAL, WASHER STEERING
-
71860117 WASHER, CLIP STEERING CABLEWASHER, CLIP STEERING CABLE
-
81860114 NUT, SPECIALNUT, SPECIAL
-
97080723 CABLE, STEERING EXT PUMPCABLE, STEERING EXT PUMP
-
107542528 NUTNUT
-
111860103 WASHERWASHER
-
127571625 WASHER, LOCKWASHER, LOCK
-
131860105 COVERCOVER
-
147080931 TUBE ASSY., GUIDE (5.2 INCH)TUBE ASSY., GUIDE (5.2 INCH)
-
157060154 ROD ENDROD END
-
167555837 WASHER, FLATWASHER, FLAT
-
177541931 NUT, HEXNUT, HEX
-
187512041 BOLTBOLT
-
195132317 COLUMN STEERING, W/PINCOLUMN STEERING, W/PIN
-
207516717 BOLTBOLT
-
211821143 WELD MOUNT, SHROUD STEERING CABLEWELD MOUNT, SHROUD STEERING CABLE
-
227546704 NUT, NYLOKNUT, NYLOK
