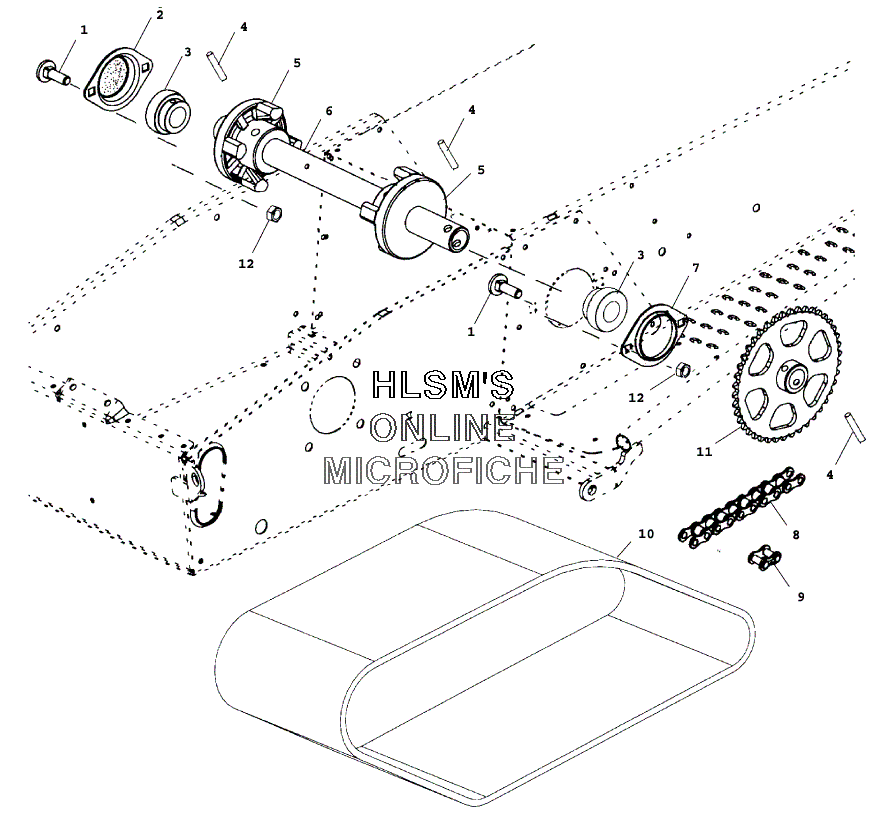

DRIVE TRAIN ASSEMBLY W/ TRACK для Polaris 120 XCR (S00WB1AS) - 2000 года выпуска
-
№АртикулНазвание
-
17517736 BOLT, CARR-5/16-18X1/2, GR5-YBOLT, CARR-5/16-18X1/2, GR5-Y
-
25244302 FLANGE, 2 BOLT, COVEREDFLANGE, 2 BOLT, COVERED
-
33514338 BEARING-1'', SET SCREWBEARING-1'', SET SCREW
-
47661913 PIN, SPRINGPIN, SPRING
-
55433455 SPROCKET-4-LUGSPROCKET-4-LUG
-
66230172 SHAFT, DRIVESHAFT, DRIVE
-
75222393 FLANGETTE (2-BOLT)FLANGETTE (2-BOLT)
-
83221116 CHAIN, ROLLER #40CHAIN, ROLLER #40
-
93221122 LINK, CONNECTING #40 DLLINK, CONNECTING #40 DL
-
105411751-070 TRACK, TRI-STAR 10X68 (BLACK)TRACK, TRI-STAR 10X68 (BLACK)
-
111013095 SPROCKET 1'' SHAFT (42 TEETH)SPROCKET 1'' SHAFT (42 TEETH)
-
127542344 NUT, NYLOCNUT, NYLOC
