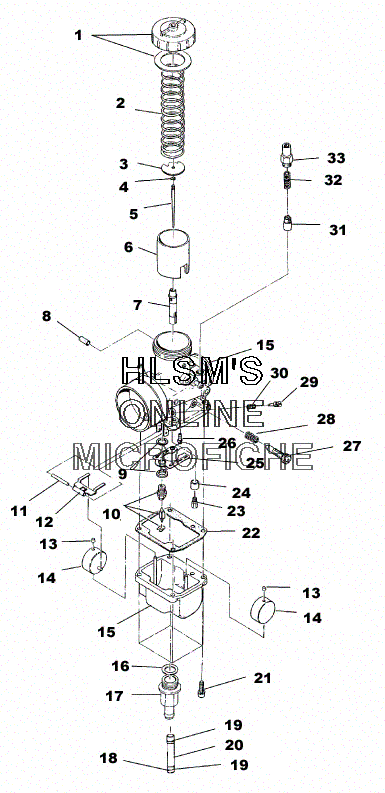

CARBURETOR ASSEMBLY для Polaris 500 INDY (S00SB4BS) - 2000 года выпуска
-
№АртикулНазвание
-
13130184 TOP ASSY. (INCL. GASKET)TOP ASSY. (INCL. GASKET)
-
23130444 SPRING, THROTTLESPRING, THROTTLE
-
33130054 PLATE, THROTTLEPLATE, THROTTLE
-
43130508 E-RINGE-RING
-
53130378 NEEDLE, JET (6F9-3)NEEDLE, JET (6F9-3)
-
63130454 VALVE, THROTTLE (2.5)VALVE, THROTTLE (2.5)
-
73130733 NEEDLE, JET (P-6)NEEDLE, JET (P-6)
-
83130479 CAPCAP
-
93130047 WASHERWASHER
-
103130942 VALVE, NEEDLE ASSY. (1.5)VALVE, NEEDLE ASSY. (1.5)
-
113130361 PIN, FLOATPIN, FLOAT
-
123130048 ARM, FLOATARM, FLOAT
-
133130237 CAPCAP
-
143130021 FLOAT ASSY.FLOAT ASSY.
-
153130941 CARBURETOR, ASSY. (INCL. 2, 17, 21, 33)CARBURETOR, ASSY. (INCL. 2, 17, 21, 33)
-
163130239 O-RINGO-RING
-
175020476 FITTING, SEDIMENTFITTING, SEDIMENT
-
185431893 PLUG, TRAPPLUG, TRAP
-
197080003 CLAMP, HOSECLAMP, HOSE
-
208350017-600 FUEL LINE (RED) (5/16'')FUEL LINE (RED) (5/16'')
-
213130056 SCREWSCREW
-
223130236 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
233130138 JET, MAIN, HEXAGON HD (#350)JET, MAIN, HEXAGON HD (#350)
-
243130232 RING, CARBURETORRING, CARBURETOR
-
253130243 PLATEPLATE
-
263130068 JET, PILOT (#45)JET, PILOT (#45)
-
273130009 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
283130010 SPRING, THROTTLE ADJUSTSPRING, THROTTLE ADJUST
-
293130011 SCREW, AIRSCREW, AIR
-
303130012 SPRING, AIR ADJUSTSPRING, AIR ADJUST
-
313130328 PLUNGER ASSY., STARTERPLUNGER ASSY., STARTER
-
323130006 SPRING, PLUNGERSPRING, PLUNGER
-
333130199 HOLDER, GUIDEHOLDER, GUIDE
