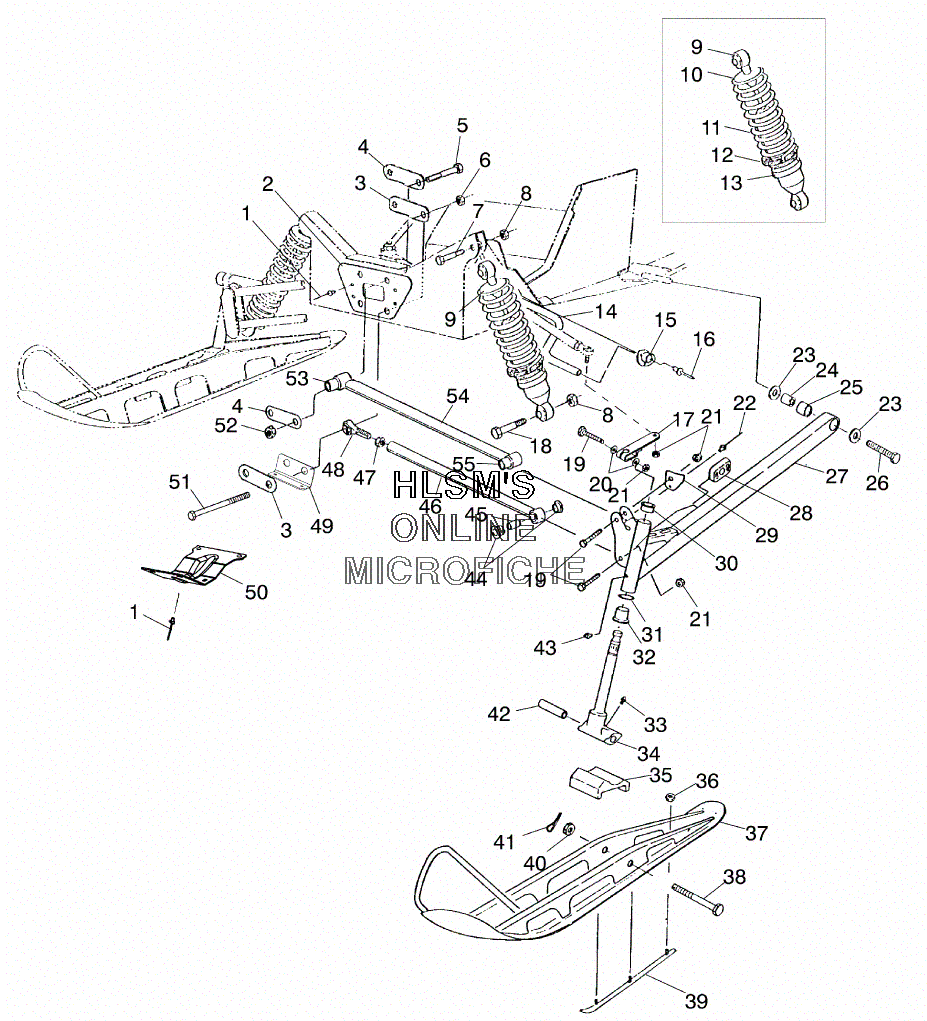

SUSPENSION - FRONT W/ SKI для Polaris 500 INDY (S00SB4BS) - 2000 года выпуска
-
№АртикулНазвание
-
17661638 RIVET, INTERLOCK BRIVET, INTERLOCK B
-
25242117 BRACE, BULKHEAD (FRONT)BRACE, BULKHEAD (FRONT)
-
35211345 STRAP, SPACER (BOTTOM)STRAP, SPACER (BOTTOM)
-
45211344 STRAP, SPACER (TOP)STRAP, SPACER (TOP)
-
57512582 BOLTBOLT
-
67542703 NUT, FLEXNUT, FLEX
-
77515415 BOLTBOLT
-
87542439 NUT, NYLOKNUT, NYLOK
-
97041539 SHOCK, GAS (IFS)SHOCK, GAS (IFS)
-
105630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
117041552-067 SPRING, COMP (IFS)SPRING, COMP (IFS)
-
125431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
131500063 RETAINER, SPRING, BODY, THREADEDRETAINER, SPRING, BODY, THREADED
-
145224749-067 BAR, SWAY (9/16) (X, 12) (BLK)BAR, SWAY (9/16) (X, 12) (BLK)
-
155432412 BUSHING, SWAY BARBUSHING, SWAY BAR
-
167621433 RIVETRIVET
-
175241560-067 ARM, STEERING (BLK)ARM, STEERING (BLK)
-
187515433 BOLTBOLT
-
197517583 SCREWSCREW
-
207555832 WASHERWASHER
-
217542403 NUT, LOCKNUT, LOCK
-
227661643 RIVET (-3/16-.214-.420)RIVET (-3/16-.214-.420)
-
237555721 WASHERWASHER
-
245010310 TUBE, BUSHINGTUBE, BUSHING
-
255410872 PIVOT, TRAILING ARM, RUBBERPIVOT, TRAILING ARM, RUBBER
-
267512557 BOLTBOLT
-
271822506 TRAILING, ARM ASSY. (LEFT) (BLK) (INCL. 24, 25)TRAILING, ARM ASSY. (LEFT) (BLK) (INCL. 24, 25)
-
271822507 TRAILING, ARM ASSY. (RIGHT) (BLK) (INCL. 24, 25)TRAILING, ARM ASSY. (RIGHT) (BLK) (INCL. 24, 25)
-
285432674 SLIDE, SWAYBAR (9/16)SLIDE, SWAYBAR (9/16)
-
295241569-067 STOP, STEERING (LEFT) (BLK)STOP, STEERING (LEFT) (BLK)
-
295241570-067 STOP, STEERING (RIGHT) (BLK)STOP, STEERING (RIGHT) (BLK)
-
303573909 BUSHING, FLANGEBUSHING, FLANGE
-
317556509 WASHER SPECIALWASHER SPECIAL
-
323574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
337080306 FITTING, LUBE.W/BALL CHECKFITTING, LUBE.W/BALL CHECK
-
346230102-067 SHAFT, SPINDLE, TRAILING (BLK)SHAFT, SPINDLE, TRAILING (BLK)
-
355411083 STOP, RUBBERSTOP, RUBBER
-
367542324 NUTNUT
-
371820430-067 SKI WELDSKI WELD
-
387515462 BOLTBOLT
-
392870693 SKAG, CARBIDE (PAIR)SKAG, CARBIDE (PAIR)
-
407542438 NUT, CASTLENUT, CASTLE
-
417661209 PIN, COTTERPIN, COTTER
-
425010158 BUSHING, PIVOT,BUSHING, PIVOT,
-
437080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
445431486 BUSH, RADIUS ROD PIVOT (OUTER)BUSH, RADIUS ROD PIVOT (OUTER)
-
455010127 BUSHING, RADIUS RODBUSHING, RADIUS ROD
-
461822383-067 ROD, RADIUS (LOWER) (BLK)ROD, RADIUS (LOWER) (BLK)
-
477542711 NUT, JAMNUT, JAM
-
487061027 RADIUS, ROD END (RIGHT) (LOWER)RADIUS, ROD END (RIGHT) (LOWER)
-
495242578 BRACKET RADIUS ROD (BOTTOM)BRACKET RADIUS ROD (BOTTOM)
-
517512684 BOLTBOLT
-
527542503 NUT, LOCK,NUT, LOCK,
-
535411095 BUSHING, PIVOT (7/16)BUSHING, PIVOT (7/16)
-
541822510 ROD, RADIUS, FIXED (UPPER)ROD, RADIUS, FIXED (UPPER)
-
555411099 BUSHING, RADIUS ROD PIVOT (3/80BUSHING, RADIUS ROD PIVOT (3/80
