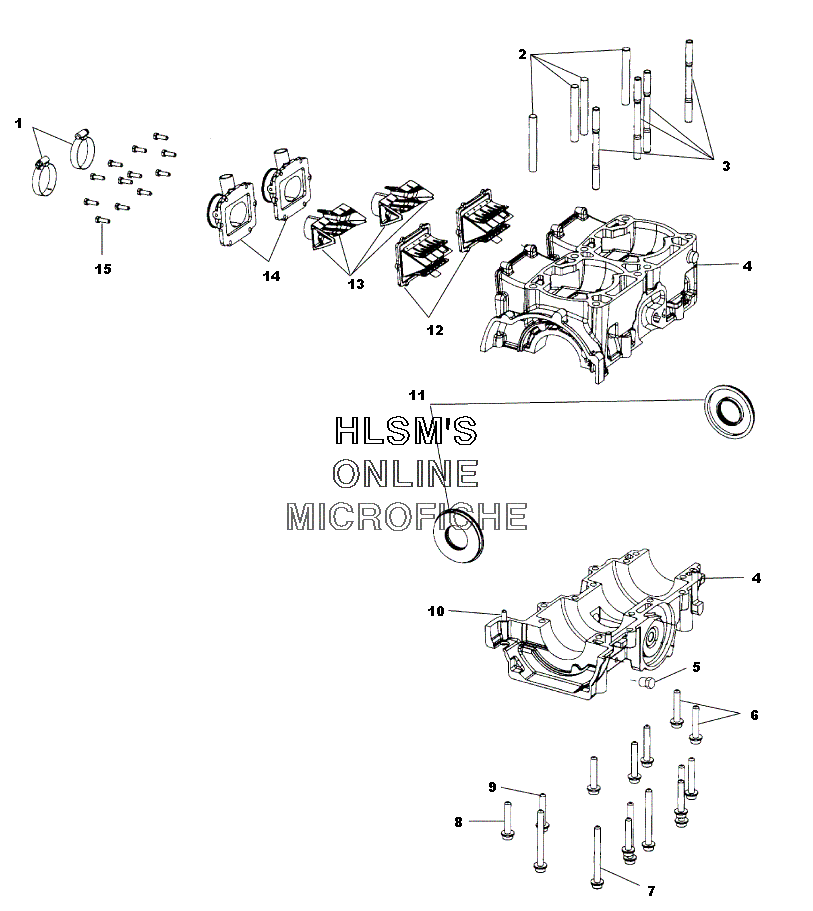

CRANKCASE ASSEMBLY для Polaris 600 TOURING (S00ST6ES) - 2000 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSE, SS,CLAMP, HOSE, SS,
-
25131767 STUD, CYLINDER FLANGE (81.0MM)STUD, CYLINDER FLANGE (81.0MM)
-
35131766 STUD, CYLINDER FLANGE (118.5MM)STUD, CYLINDER FLANGE (118.5MM)
-
42201556 CRANKCASE, TWN (INCL. 2, 3, 5, 10)CRANKCASE, TWN (INCL. 2, 3, 5, 10)
-
57051529 PLUGPLUG
-
67517448 SCREWSCREW
-
77517244 SCREWSCREW
-
87516825 SCREWSCREW
-
97517214 SCREWSCREW
-
107663001 PIN, DOWELPIN, DOWEL
-
115411394 SEAL, FLANGEDSEAL, FLANGED
-
121201825 VALVE, REED, ASSY.VALVE, REED, ASSY.
-
135432852 STUFFER, REED (75.5MM) (38MM. CARBURETOR)STUFFER, REED (75.5MM) (38MM. CARBURETOR)
-
141253217 ADAPTER, CARBURETOR, TM/RACK, 440 BASEADAPTER, CARBURETOR, TM/RACK, 440 BASE
-
157517398 SCREWSCREW
