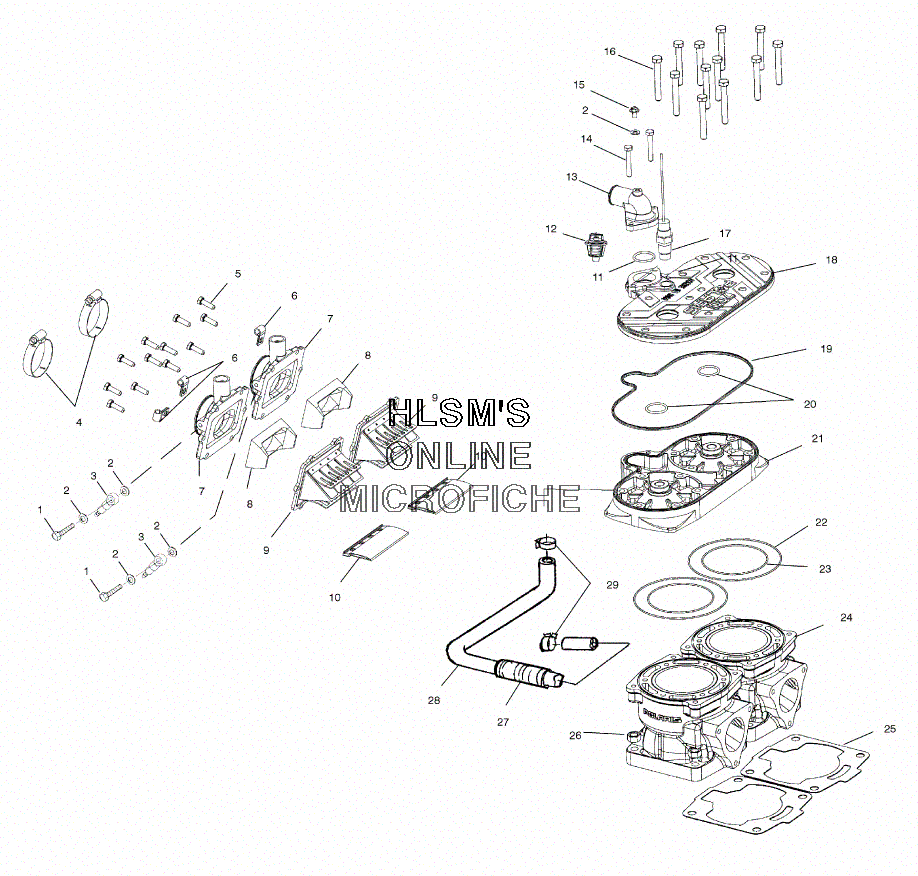

CYLINDER ASSEMBLY для Polaris 700 XC DELUXE (S00SD7AS) - 2000 года выпуска
-
№АртикулНазвание
-
17517578 SCREWSCREW
-
27555998 WASHER, FLATWASHER, FLAT
-
37052160 VALVE, CHECK OIL PUMPVALVE, CHECK OIL PUMP
-
47080681 CLAMP, HOSECLAMP, HOSE
-
57517398 SCREWSCREW
-
67080683 CLAMP, HOSECLAMP, HOSE
-
71253259 ADAPTOR, CARBURETOR OIL INJECTION (40MM)ADAPTOR, CARBURETOR OIL INJECTION (40MM)
-
85433151 STUFFER, REED BLOCKSTUFFER, REED BLOCK
-
91201831 VALVE, REEDVALVE, REED
-
105411251 STUFFERSTUFFER
-
115411521 O-RING, LIPSEALO-RING, LIPSEAL
-
127052224 THERMOSTAT (60Ш C)THERMOSTAT (60Ш C)
-
135630910 COVER, THERMOSTAT (M6 BLEED) (LARGE)COVER, THERMOSTAT (M6 BLEED) (LARGE)
-
147516818 SCREWSCREW
-
157517266 SCREWSCREW
-
167517534 SCREWSCREW
-
174110254 SENSOR, TEMP (93 DEG.)SENSOR, TEMP (93 DEG.)
-
185631009-093 COVER, HEAD T/BYPASS (FIRE RED)COVER, HEAD T/BYPASS (FIRE RED)
-
195411294 SEAL, RUBBER, HEADSEAL, RUBBER, HEAD
-
205410917 O-RINGO-RING
-
213021022 HEAD, CYLINDER BYPASS (81MM)HEAD, CYLINDER BYPASS (81MM)
-
225410931 O-RINGO-RING
-
235410932 O-RINGO-RING
-
245131824 CYLINDER (81 MM)CYLINDER (81 MM)
-
255811538 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
267547013 NUTNUT
-
275521398-96 CONDUIT, FLEX (.75''ID) (OPT)CONDUIT, FLEX (.75''ID) (OPT)
-
285411536 HOSE, BYPASSHOSE, BYPASS
-
297080810 CLAMP, 3 TONGCLAMP, 3 TONG
