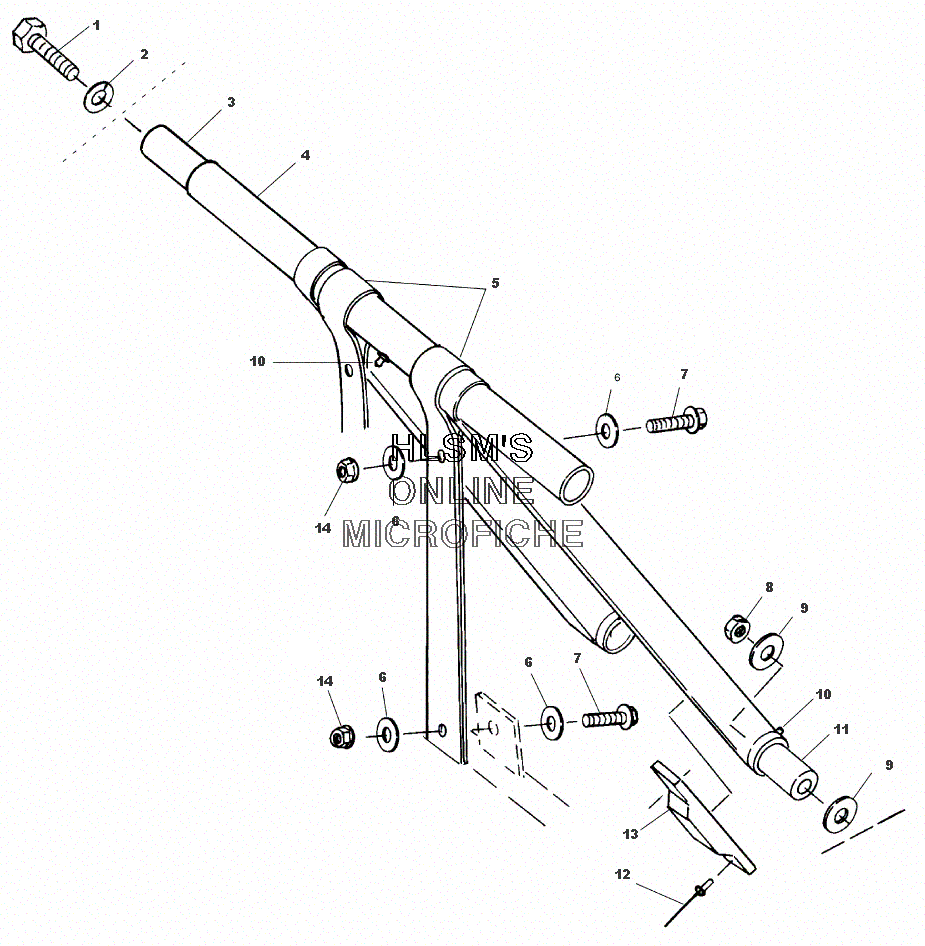

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 700 XC DELUXE (S00SD7AS) - 2000 года выпуска
-
№АртикулНазвание
-
17517436 SCREWSCREW
-
27552614 WASHER, LOCKWASHER, LOCK
-
35020812 SHAFTSHAFT
-
41540969-067 WELD, TORQUE ARM (FRONT/BLACK)WELD, TORQUE ARM (FRONT/BLACK)
-
55410938 STRAP, LIMITERSTRAP, LIMITER
-
67555716 WASHERWASHER
-
77512310 SCREWSCREW
-
87542403 NUT, LOCKNUT, LOCK
-
97555743 WASHERWASHER
-
107080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
115020813 SHAFTSHAFT
-
127621418 POP RIVETPOP RIVET
-
135432166 BUMPER, TORQUE ARM (XTRA 12) (FRONT)BUMPER, TORQUE ARM (XTRA 12) (FRONT)
-
147542324 NUTNUT
