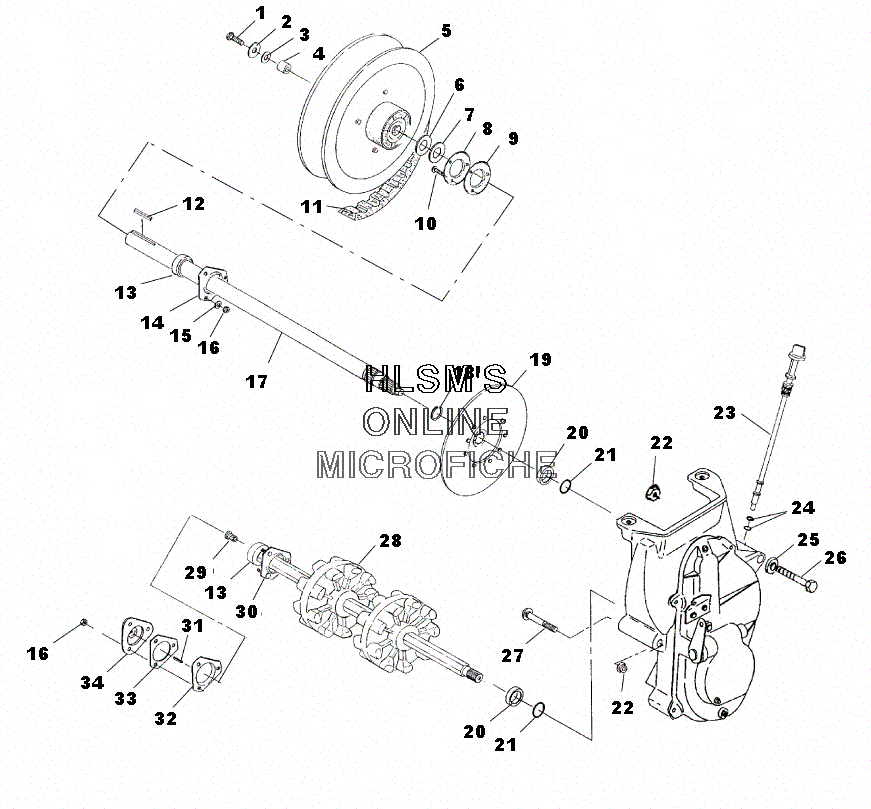

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 700 XC DELUXE (S00SD7AS) - 2000 года выпуска
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER (OPT)WASHER (OPT)
-
45020291 SPACERSPACER
-
67555864 BUSHING (OPT)BUSHING (OPT)
-
77556509 WASHER, SPECIAL (OPT)WASHER, SPECIAL (OPT)
-
85241359 FLANGE, RELUBE W/ZERKFLANGE, RELUBE W/ZERK
-
87080561 FITTING, LUB/VENFITTING, LUB/VEN
-
95811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
107512377 BOLTBOLT
-
113211065 BELT, DRIVEBELT, DRIVE
-
127721116 KEYKEY
-
133514525 BEARINGBEARING
-
145222751 FLANGETTEFLANGETTE
-
157558402 WASHER, STEELWASHER, STEEL
-
167542324 NUTNUT
-
171332207 JACKSHAFT ASSY. (15 SPLINE) (INCL. 13, 18)JACKSHAFT ASSY. (15 SPLINE) (INCL. 13, 18)
-
187710422 RING, RETAININGRING, RETAINING
-
191910403 BRAKE DISC, SNOWBRAKE DISC, SNOW
-
205020588 SLEEVE, SEALSLEEVE, SEAL
-
215410613 O-RINGO-RING
-
227542423 NUTNUT
-
235431419 DIPSTICK ASSY.DIPSTICK ASSY.
-
245410675 O-RINGO-RING
-
257558403 WASHER, WROUGHTWASHER, WROUGHT
-
267515485 BOLTBOLT
-
277515428 BOLTBOLT
-
281590284 DRIVESHAFT ASSY. 2 DR WIDE XHS (INCL. 13, 29, 30)DRIVESHAFT ASSY. 2 DR WIDE XHS (INCL. 13, 29, 30)
-
293280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
301012945 FLANGETTE, W/SCREWS ASSY.FLANGETTE, W/SCREWS ASSY.
-
313280017 SQUARE KEY SPEEDOMETERSQUARE KEY SPEEDOMETER
-
325243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
335830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
343280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
