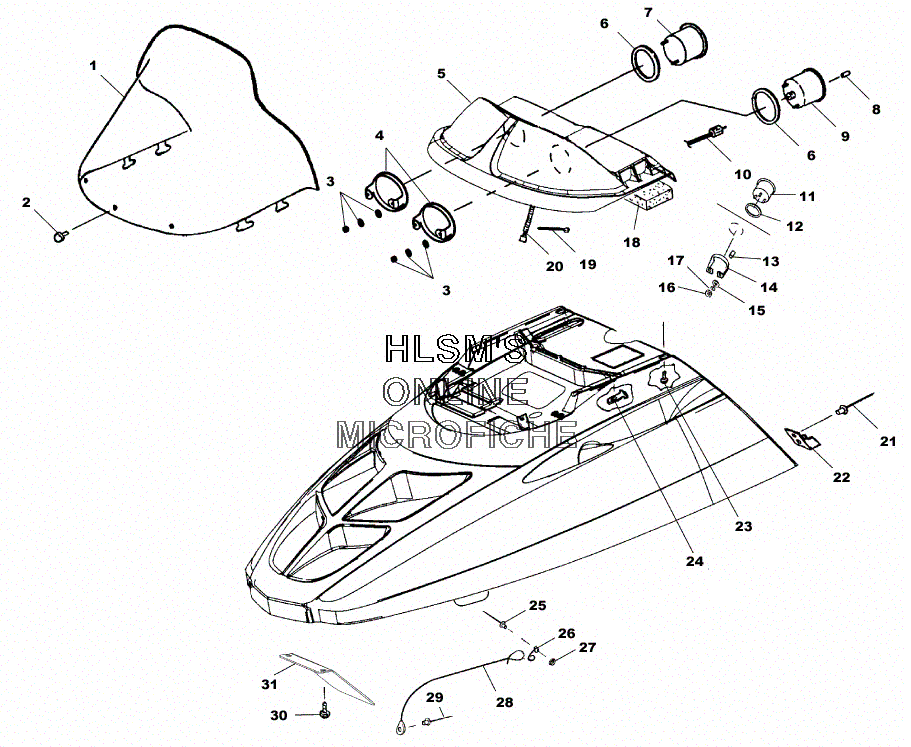

HOOD ASSEMBLY W/ WINDSHIELD для Polaris CLASSIC TOURING (S00ST4BS) - 2000 года выпуска`
-
№АртикулНазвание
-
15433167 WINDSHIELD GEN 2, FLR (18'' CLEAR)WINDSHIELD GEN 2, FLR (18'' CLEAR)
-
27621509 RIVET, PLASTI LOC.RIVET, PLASTI LOC.
-
33280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
33280157 WASHER, FLATWASHER, FLAT
-
33280158 NUTNUT
-
43280210 BRACKET, TACH/SPEEDOMETER (5'')BRACKET, TACH/SPEEDOMETER (5'')
-
52632079 INSTRUMENT, HOUSING MID LEVEL W/REV (INCL. WARNING DECALS)INSTRUMENT, HOUSING MID LEVEL W/REV (INCL. WARNING DECALS)
-
63280209 CUSHION, TACH/SPEEDOMETER, RUBBERCUSHION, TACH/SPEEDOMETER, RUBBER
-
73280293 TACH ASSY., 2 PULSE (5'')TACH ASSY., 2 PULSE (5'')
-
74030015 BULB TAILLIGHT/TACH/SPEEDOMETERBULB TAILLIGHT/TACH/SPEEDOMETER
-
83280186 KNOB, TRIPODOMETER (LEFT THREADED)KNOB, TRIPODOMETER (LEFT THREADED)
-
93280303 SPEEDOMETER (5'') (100MPH) (90 ANGLE)SPEEDOMETER (5'') (100MPH) (90 ANGLE)
-
94030015 BULB TAILLIGHT/TACH/SPEEDOMETERBULB TAILLIGHT/TACH/SPEEDOMETER
-
103280341 CABLE, SPEEDOMETER (90 IN)CABLE, SPEEDOMETER (90 IN)
-
113280226 FUELGAUGE, BACKLIT (2'')FUELGAUGE, BACKLIT (2'')
-
114060139 FUSEFUSE
-
123280230 CUSHION, FUEL GAUGE RUBBER (2'')CUSHION, FUEL GAUGE RUBBER (2'')
-
133280228 SPACER, BRACKETSPACER, BRACKET
-
143280229 BRACKET, FUELGAUGE (2'')BRACKET, FUELGAUGE (2'')
-
153280231 WASHERWASHER
-
163280232 NUTNUT
-
173280233 WASHER, SPLITLOCKWASHER, SPLITLOCK
-
185811625 FOAM, PREFILTERFOAM, PREFILTER
-
197080138 STRAP, PANDUITSTRAP, PANDUIT
-
202460732 HARNESS, HEADLIGHT, G2 COMMONHARNESS, HEADLIGHT, G2 COMMON
-
217621334 RIVETRIVET
-
225430733 CUP, HOOD LATCHCUP, HOOD LATCH
-
237517441 SCREWSCREW
-
245410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
257621467 RIVET, BLINDRIVET, BLIND
-
265242893 CLIP, PIGTAILCLIP, PIGTAIL
-
277555904 BURR, RIVETBURR, RIVET
-
287080764 CABLE, HOODCABLE, HOOD
-
297621402 POP, RIVETPOP, RIVET
-
307512068 SCREWSCREW
-
315243393 DEFLECTOR, AIRDEFLECTOR, AIR
