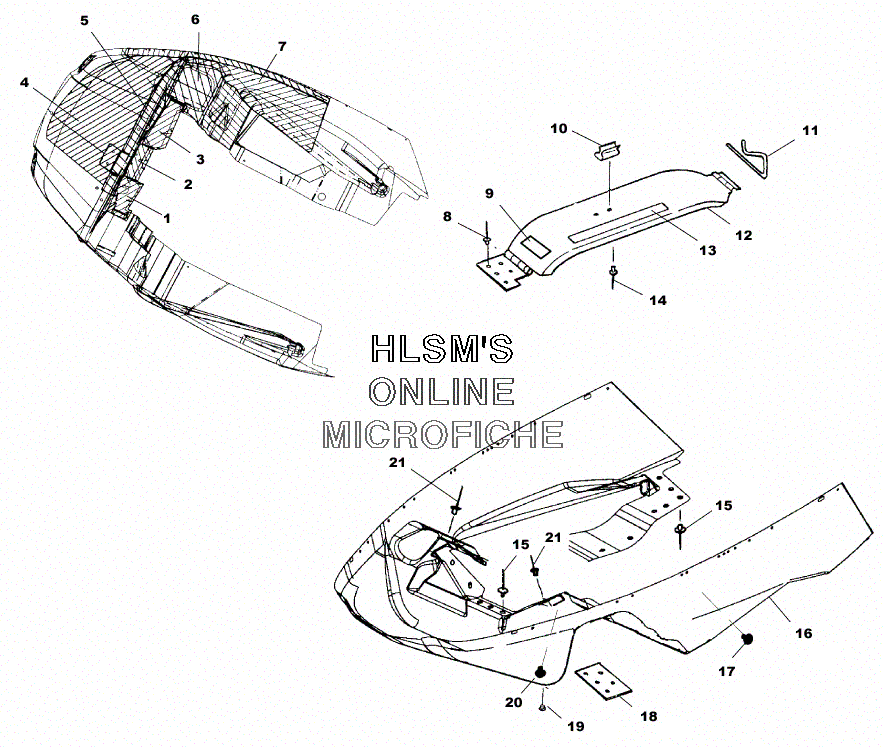

NOSEPAN ASSEMBLY #1 для Polaris CLASSIC TOURING (S00ST4BS) - 2000 года выпуска
-
№АртикулНазвание
-
15810494 TAPE, FOIL PAN #4TAPE, FOIL PAN #4
-
25810495 TAPE, FOIL PAN #5TAPE, FOIL PAN #5
-
35810493 TAPE, FOIL PAN #3TAPE, FOIL PAN #3
-
45811604 FOIL, TAPE PANFOIL, TAPE PAN
-
55810492 TAPE, FOIL PAN #2TAPE, FOIL PAN #2
-
65811723 FOIL TAPE PAN #6FOIL TAPE PAN #6
-
75810497 TAPE, FOIL PAN #7TAPE, FOIL PAN #7
-
87621402 POP, RIVETPOP, RIVET
-
97077762 DECAL TROUBLE SHOOT (XTRA 12) (133)DECAL TROUBLE SHOOT (XTRA 12) (133)
-
105222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
117080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
121012412 GUARD ASSY., CLUTCHGUARD ASSY., CLUTCH
-
137075350 DECAL 97 99 ENGINE/CLUTCHDECAL 97 99 ENGINE/CLUTCH
-
147621429 RIVETRIVET
-
157621467 RIVET, BLINDRIVET, BLIND
-
165411639 NOSEPAN LIQ W/SIDE COOLERNOSEPAN LIQ W/SIDE COOLER
-
175410344 PLUGPLUG
-
185211722 PLATE, BACKER CLUTCH GUARDPLATE, BACKER CLUTCH GUARD
-
197080399 BUSHING, OPEN/CLOSEBUSHING, OPEN/CLOSE
-
205410820 PLUG, NOSEPAN HOLEPLUG, NOSEPAN HOLE
-
217621418 POP, RIVETPOP, RIVET
