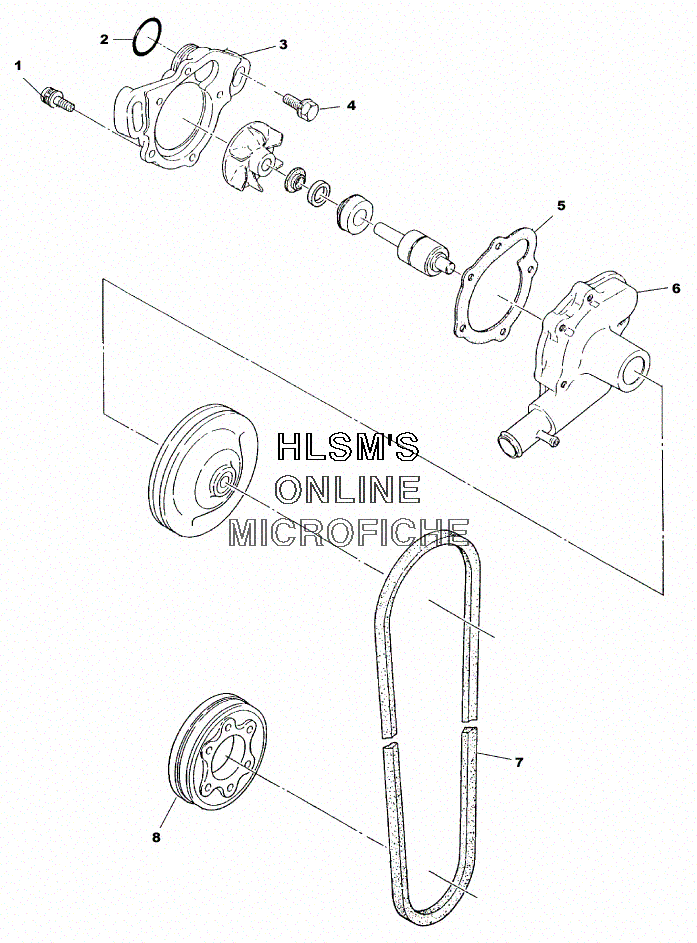

WATER PUMP для Polaris CLASSIC TOURING (S00ST4BS) - 2000 года выпуска
-
№АртикулНазвание
-
13084221 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
23082746 O-RINGO-RING
-
33083683 CASING, PUMP 2CASING, PUMP 2
-
43083370 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
53083367 GASKET, WATER PUMPGASKET, WATER PUMP
-
63083471 PUMP, WATER (INCL. 1 3, 5)PUMP, WATER (INCL. 1 3, 5)
-
73082747 BELTBELT
