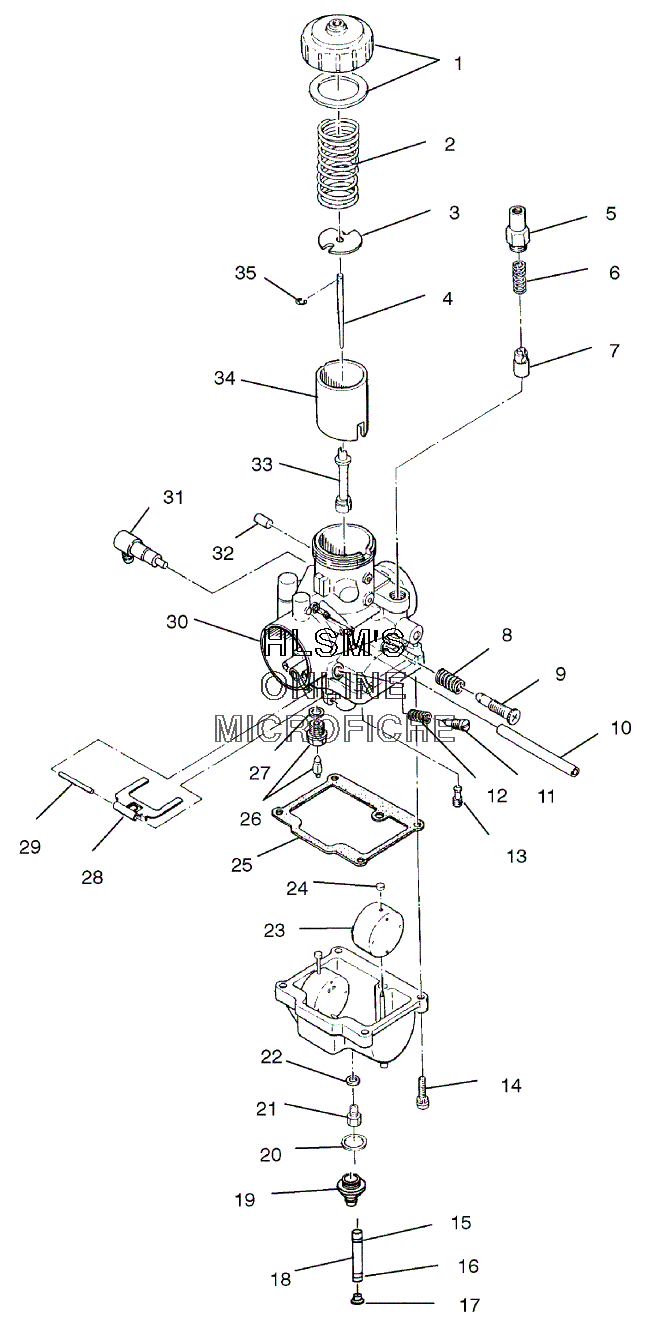

CARBURETOR ASSEMBLY для Polaris EURO WIDETRAK LX (E01SU4BU) - 2000 года выпуска
-
№АртикулНазвание
-
13130184 TOP ASSY.TOP ASSY.
-
23130439 SPRING, THROTTLESPRING, THROTTLE
-
33130027 PLATEPLATE
-
43130329 JET NEEDLE (6DH7, 3)JET NEEDLE (6DH7, 3)
-
53130199 CAP, PLUNGERCAP, PLUNGER
-
63130006 SPRING, PLUNGERSPRING, PLUNGER
-
73130328 PLUNGER ASSY., STARTERPLUNGER ASSY., STARTER
-
83130010 SPRING, THROTTLE ADJUSTSPRING, THROTTLE ADJUST
-
93130437 SCREW, THROT.STOPSCREW, THROT.STOP
-
103085932 HOSEHOSE
-
113130011 SCREW, AIRSCREW, AIR
-
123130012 SPRING, AIR ADJUSTSPRING, AIR ADJUST
-
133130066 JET, PILOT #35JET, PILOT #35
-
143130025 SCREW AND WASHERSCREW AND WASHER
-
157080534 CLAMP, SPRINGCLAMP, SPRING
-
167080544 CLAMP, HOSECLAMP, HOSE
-
175431893 PLUG, TRAPPLUG, TRAP
-
188450045-153 FUEL LINE (5 FT.) (OPT)FUEL LINE (5 FT.) (OPT)
-
195020476 FITTING, SEDIMENTFITTING, SEDIMENT
-
203130239 O-RINGO-RING
-
213130133 JET, MAIN #300JET, MAIN #300
-
223130014 WASHERWASHER
-
233130430 FLOAT ASSY.FLOAT ASSY.
-
243130237 CAPCAP
-
253130020 PACKING, FLOAT CHAMBERPACKING, FLOAT CHAMBER
-
263131146 VALVE, NEEDLE (1.5)VALVE, NEEDLE (1.5)
-
273130017 PACKINGPACKING
-
283130018 ARM, FLOATARM, FLOAT
-
293130361 PIN, FLOATPIN, FLOAT
-
303130954 CARBURETOR (INCL. 1, 14, 19, 35)CARBURETOR (INCL. 1, 14, 19, 35)
-
313086785 VALVE, CHECK ASSY.VALVE, CHECK ASSY.
-
323130479 CAPCAP
-
333130894 JET, NEEDLE #480JET, NEEDLE #480
-
343130372 VALVE, THROTTLE 3.0VALVE, THROTTLE 3.0
-
353130508 E-RINGE-RING
