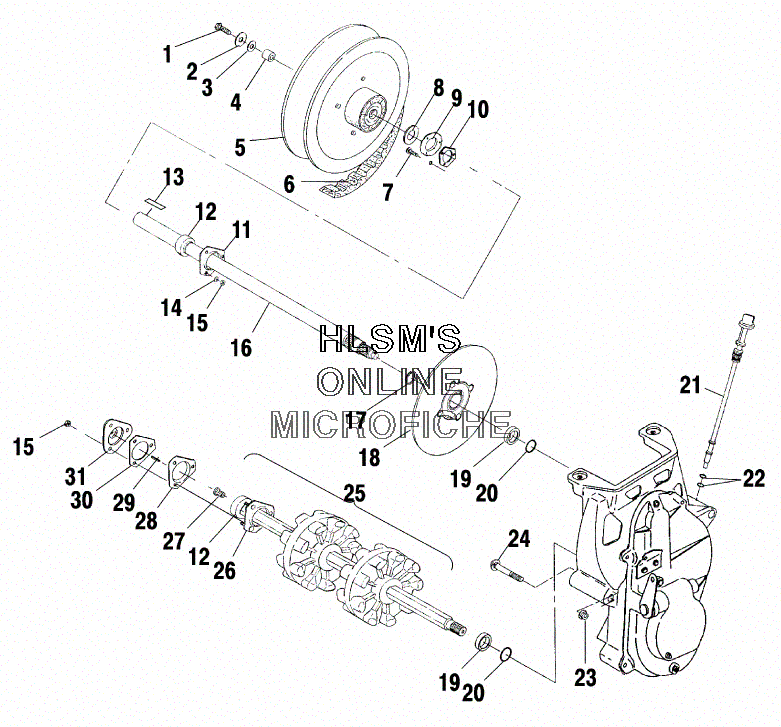

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris EURO WIDETRAK LX (E01SU4BU) - 2000 года выпуска
-
№АртикулНазвание
-
17515301 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER (OPT)WASHER (OPT)
-
45020291 SPACERSPACER
-
63211070 BELT, DRIVE (28 DEGREE)BELT, DRIVE (28 DEGREE)
-
77512377 BOLTBOLT
-
87556509 WASHER, SPECIAL (OPT)WASHER, SPECIAL (OPT)
-
95241359 FLANGE, RELUBE W/ZERKFLANGE, RELUBE W/ZERK
-
105811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
115222751 FLANGETTEFLANGETTE
-
123514525 BEARINGBEARING
-
137721116 KEYKEY
-
147558402 WASHER, STEELWASHER, STEEL
-
157542324 NUTNUT
-
161332207 JACKSHAFT ASSY., 15 SPLINE (INCL. 12, 17)JACKSHAFT ASSY., 15 SPLINE (INCL. 12, 17)
-
177710422 RING, RETAININGRING, RETAINING
-
181910403 BRAKE DISCBRAKE DISC
-
195020588 SLEEVE, SEALSLEEVE, SEAL
-
205410613 O-RINGO-RING
-
211332143 DIPSTICK ASSY.DIPSTICK ASSY.
-
225410675 O-RINGO-RING
-
237542423 NUTNUT
-
247515428 BOLTBOLT
-
251590283 DRIVESHAFT ASSY., 2 DR W/BEARING (INCL. 26, 27)DRIVESHAFT ASSY., 2 DR W/BEARING (INCL. 26, 27)
-
261012945 FLANGETTE ASSY., W/SCREWSFLANGETTE ASSY., W/SCREWS
-
273280019 BUSHING, METAL SPEEDOBUSHING, METAL SPEEDO
-
285243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
293280017 SQ. KEY SPEEDOMETERSQ. KEY SPEEDOMETER
-
305830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
313280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
