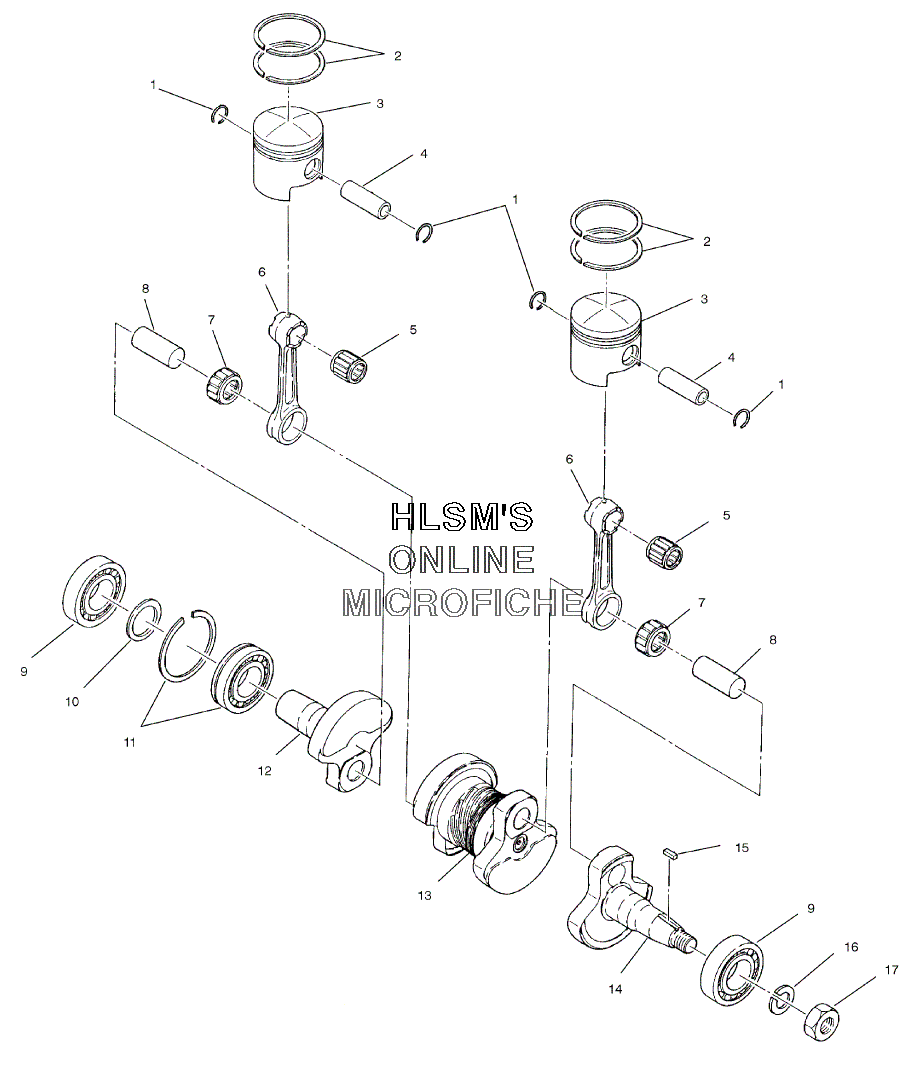

PISTON AND CRANKSHAFT для Polaris INDY 340 DELUXE (S00LD3AS) - 2000 года выпуска
-
№АртикулНазвание
-
13084456 CLIP, PISTON PINCLIP, PISTON PIN
-
23083587 RING, PISTON (STANDARD)RING, PISTON (STANDARD)
-
23083719 RING (.50MM/.020'' OVERSIZE)RING (.50MM/.020'' OVERSIZE)
-
23084319 RING, PISTON (.25MM/.010'' OVERSIZE)RING, PISTON (.25MM/.010'' OVERSIZE)
-
33085840 PISTON (STANDARD) (INCL. 1)PISTON (STANDARD) (INCL. 1)
-
33085841 PISTON (0.25 O/S) (INCL. 1)PISTON (0.25 O/S) (INCL. 1)
-
33085842 PISTON (0.50 O/S) (INCL. 1)PISTON (0.50 O/S) (INCL. 1)
-
43084455 PIN, PISTONPIN, PISTON
-
53080998 BEARING, END (SMALL)BEARING, END (SMALL)
-
63083581 ROD, CONNECTINGROD, CONNECTING
-
73083583 BEARING, END (LARGE)BEARING, END (LARGE)
-
83083582 PIN, CRANKPIN, CRANK
-
93084580 BEARING, BALLBEARING, BALL
-
103083399 SPACERSPACER
-
113084602 BEARING, BALLBEARING, BALL
-
123083580 CRANKSHAFT #3 (PTO SIDE)CRANKSHAFT #3 (PTO SIDE)
-
133083579 CRANKSHAFT #2 (INCL. 8)CRANKSHAFT #2 (INCL. 8)
-
143083577 CRANKSHAFT (INCL. 6-14)CRANKSHAFT (INCL. 6-14)
-
143083578 CRANKSHAFT #1 (MAG SIDE)CRANKSHAFT #1 (MAG SIDE)
-
153081447 KEYKEY
-
163083094 WASHER-SPRINGWASHER-SPRING
-
173083093 NUTNUT
