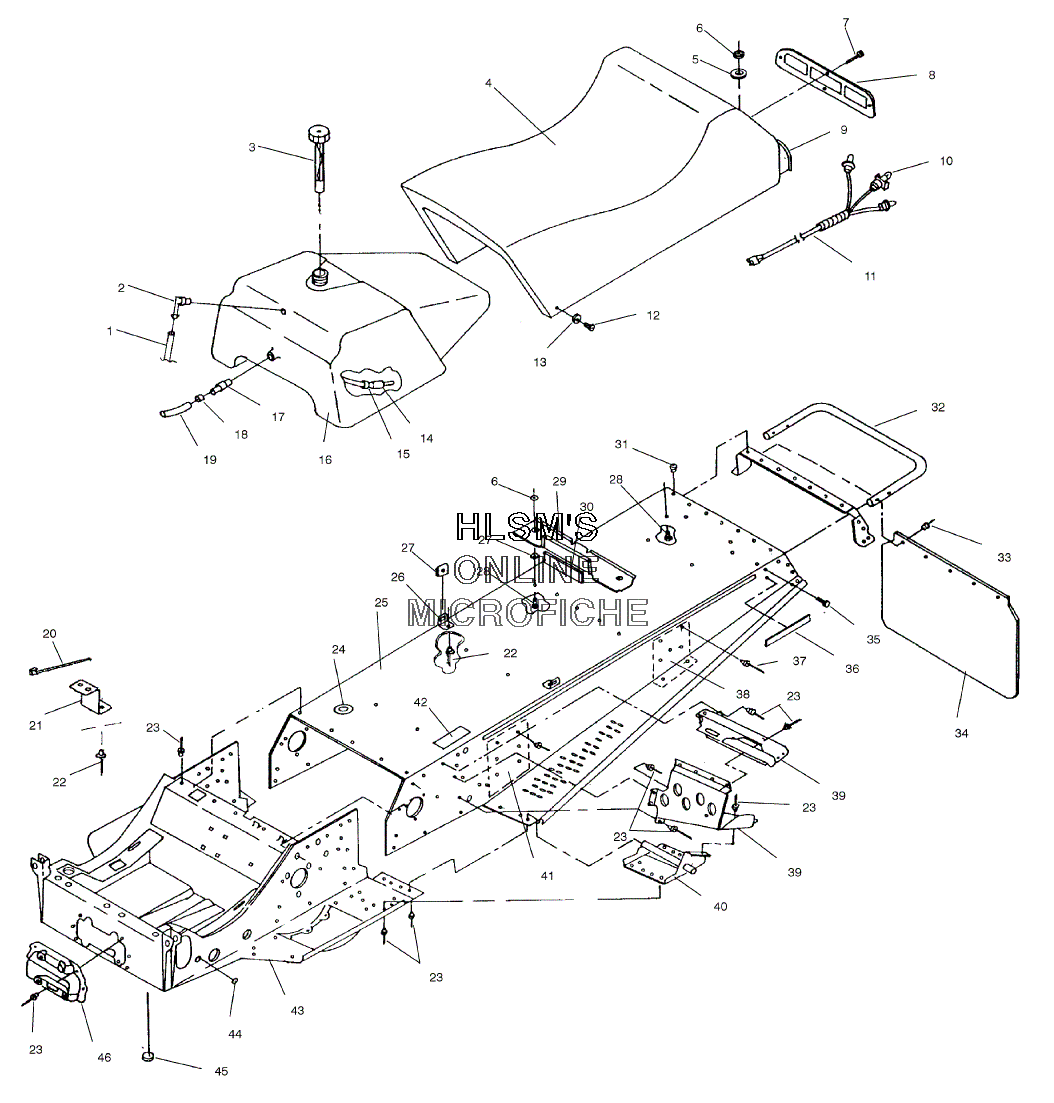

SEAT W/ TUNNEL ASSEMBLY для Polaris INDY 340 DELUXE (S00LD3AS) - 2000 года выпуска
-
№АртикулНазвание
-
18450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
-
27052095 FITTING (90 DEG, 1/8)FITTING (90 DEG, 1/8)
-
32511245 CAP, GAS, W/GAUGECAP, GAS, W/GAUGE
-
42682512 CUSHION, SEAT, ASSY. (INCL. 7-11)CUSHION, SEAT, ASSY. (INCL. 7-11)
-
42682513 COVER, SEAT ASSY.COVER, SEAT ASSY.
-
57558302 WASHER, WROUGHTWASHER, WROUGHT
-
67542122 NUT, LOCKNUT, LOCK
-
77511840 SCREWSCREW
-
85430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
95433341 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
104030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
104030045 BULB, BRAKELIGHTBULB, BRAKELIGHT
-
112460399 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
127515111 SCREWSCREW
-
137555798 WASHERWASHER
-
147052243 FUEL PICKUP, W/FILTERFUEL PICKUP, W/FILTER
-
157080402 RING, COMPRESSIONRING, COMPRESSION
-
162520179 TANK, FUEL, ASSY. (INCL. 1, 2, 14-17)TANK, FUEL, ASSY. (INCL. 1, 2, 14-17)
-
177052023 FITTING, OUTLETFITTING, OUTLET
-
187080307 CLAMPCLAMP
-
198350019-600 FUEL LINE, ESTERFUEL LINE, ESTER
-
207080138 STRAP PANDUITSTRAP PANDUIT
-
215220520-067 BRACKET STAND (BLACK)BRACKET STAND (BLACK)
-
227621453 RIVETRIVET
-
237661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
245410021 GROMMET RUBBERGROMMET RUBBER
-
251012939 TUNNEL, SPORT LITE (INCL. 38, 41)TUNNEL, SPORT LITE (INCL. 38, 41)
-
265222452-067 BRACKET CONSOLE/SEAT MOUNTBRACKET CONSOLE/SEAT MOUNT
-
277670021 SPEED NUTSPEED NUT
-
287512193 BOLTBOLT
-
295222330-067 STRAP, GAS TANK (BLACK)STRAP, GAS TANK (BLACK)
-
305420126 CUSHION, TANK H.D.CUSHION, TANK H.D.
-
317661836 RIVETRIVET
-
325224766-067 BUMPER, XL (BLACK) (REAR)BUMPER, XL (BLACK) (REAR)
-
337621418 POP RIVETPOP RIVET
-
345410394 FLAP, SNOW MOLDED (BLACK W/SILVER)FLAP, SNOW MOLDED (BLACK W/SILVER)
-
357512252 SCREWSCREW
-
362670133 REFLECTOR ASSY. (RED)REFLECTOR ASSY. (RED)
-
377661837 RIVETRIVET
-
385241670-067 PAD, SUSPENSION MOUNT (LEFT) (REAR)PAD, SUSPENSION MOUNT (LEFT) (REAR)
-
385241671-067 PAD, SUSPENSION MOUNT (RIGHT) (REAR)PAD, SUSPENSION MOUNT (RIGHT) (REAR)
-
391011826 FOOTREST ASSY. (RIGHT) (STARLITE)FOOTREST ASSY. (RIGHT) (STARLITE)
-
391011830 FOOTREST ASSY. (LEFT)FOOTREST ASSY. (LEFT)
-
401011792-067 SUPPORT, TRAILING ARM (LEFT) (BLACK)SUPPORT, TRAILING ARM (LEFT) (BLACK)
-
401011793-067 SUPPORT, TRAILING ARM (RIGHT) (BLACK)SUPPORT, TRAILING ARM (RIGHT) (BLACK)
-
415211705-067 PAD, SUSPENSION MOUNT (FRONT) (XL)PAD, SUSPENSION MOUNT (FRONT) (XL)
-
425810502 PAD, AIR BOXPAD, AIR BOX
-
431012587-067 BULKHEAD (BLACK)BULKHEAD (BLACK)
-
447080416 PLUG, HOLEPLUG, HOLE
-
457080399 BUSHING, OPEN/CLOSEBUSHING, OPEN/CLOSE
