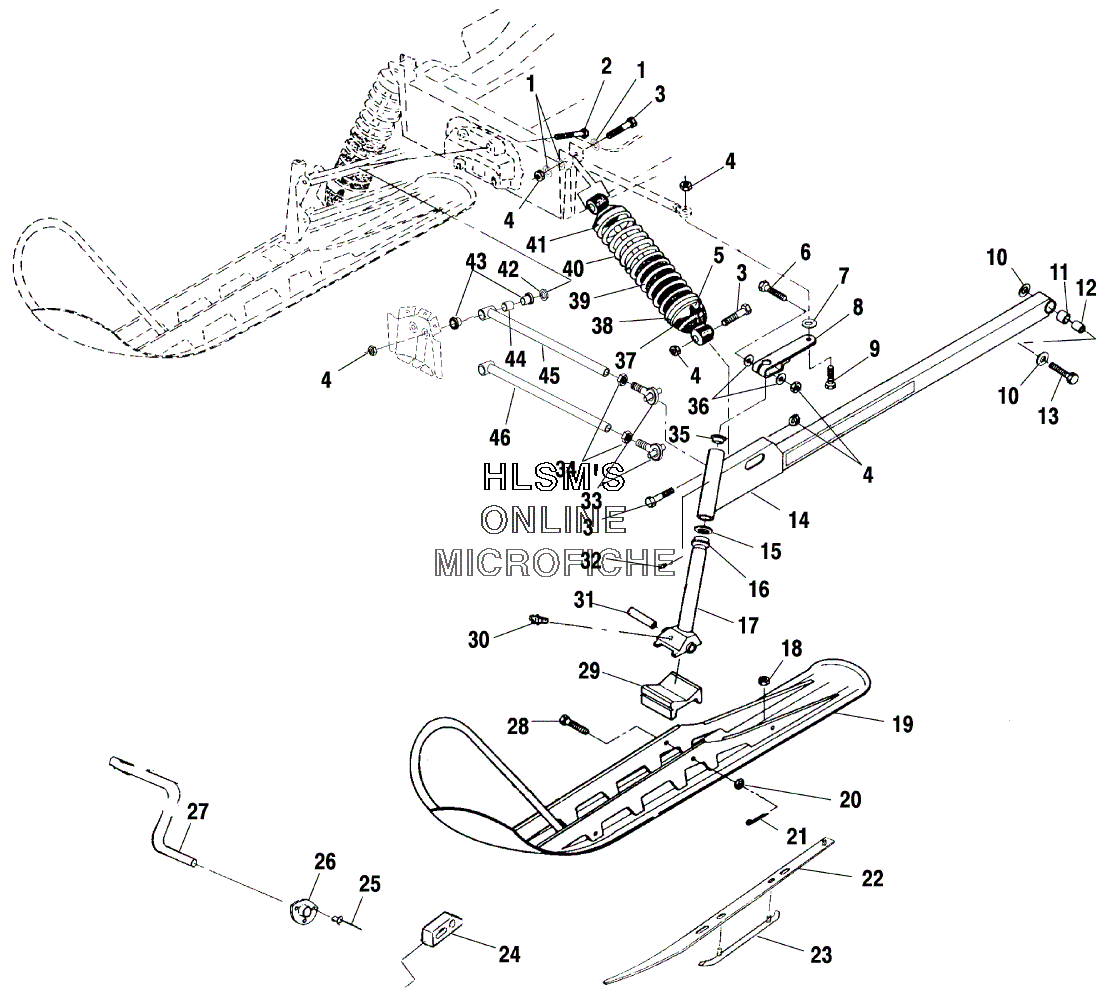

SUSPENSION - FRONT W/ SKI для Polaris INDY 340 DELUXE (S00LD3AS) - 2000 года выпуска
-
№АртикулНазвание
-
17555806 WASHERWASHER
-
27515417 BOLTBOLT
-
37515415 BOLTBOLT
-
47542439 NUT, NYLOKNUT, NYLOK
-
57041788 SHOCK, NITREX (IFS)SHOCK, NITREX (IFS)
-
67517583 SCREWSCREW
-
77555976 WASHERWASHER
-
85220326-067 ARM, STEERINGARM, STEERING
-
97515528 BOLTBOLT
-
107555721 WASHERWASHER
-
115410382 PIVOT, TRAILING ARMPIVOT, TRAILING ARM
-
125010187 TUBE, TRAILING ARMTUBE, TRAILING ARM
-
137512557 BOLTBOLT
-
141823136-067 ARM, TRAILING (LEFT) (BLACK)ARM, TRAILING (LEFT) (BLACK)
-
141823137-067 ARM, TRAILING (RIGHT) (BLACK)ARM, TRAILING (RIGHT) (BLACK)
-
157556509 WASHER SPECIALWASHER SPECIAL
-
163574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
176230073-067 SPINDLE (BLACK)SPINDLE (BLACK)
-
187542324 NUTNUT
-
191820333-067 SKI (BLACK)SKI (BLACK)
-
207542438 NUT, CASTLENUT, CASTLE
-
217661209 PIN, COTTERPIN, COTTER
-
221011829-067 PLATE, SKAGPLATE, SKAG
-
231820318-067 SKAG (BLACK)SKAG (BLACK)
-
245410384 SLIDE, SWAYBARSLIDE, SWAYBAR
-
257621477 RIVETRIVET
-
265410383 BUSHING, SWAYBARBUSHING, SWAYBAR
-
275243397-067 SWAY BAR (9/16) (BLACK)SWAY BAR (9/16) (BLACK)
-
287515462 BOLTBOLT
-
295521231 STOP, RUBBERSTOP, RUBBER
-
307080306 FITTING, LUBE.W/BALL CHECKFITTING, LUBE.W/BALL CHECK
-
315010158 BUSHING, PIVOTBUSHING, PIVOT
-
327080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
337060157 ROD END (RIGHT) (1.41''WD)ROD END (RIGHT) (1.41''WD)
-
347542520 NUT JAMNUT JAM
-
353573909 BUSHING-FLANGEBUSHING-FLANGE
-
367555832 WASHERWASHER
-
371500063 RETAINER, SPRING, BODY, THREADEDRETAINER, SPRING, BODY, THREADED
-
385431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
395210953 SPACER, SHOCK RETAINERSPACER, SHOCK RETAINER
-
407041261-067 SPRING, COMP. (BLACK)SPRING, COMP. (BLACK)
-
415220225 RETAINER (TOP)RETAINER (TOP)
-
427555797 WASHERWASHER
-
435431486 BUSH, RADIUS ROD PIVOT (OUTER)BUSH, RADIUS ROD PIVOT (OUTER)
-
445010252 BUSHINGBUSHING
-
451820658-067 RADIUS ROD (UPPER) (BLACK)RADIUS ROD (UPPER) (BLACK)
-
461820660-067 RADIUS ROD (LOWER) (BLACK)RADIUS ROD (LOWER) (BLACK)
