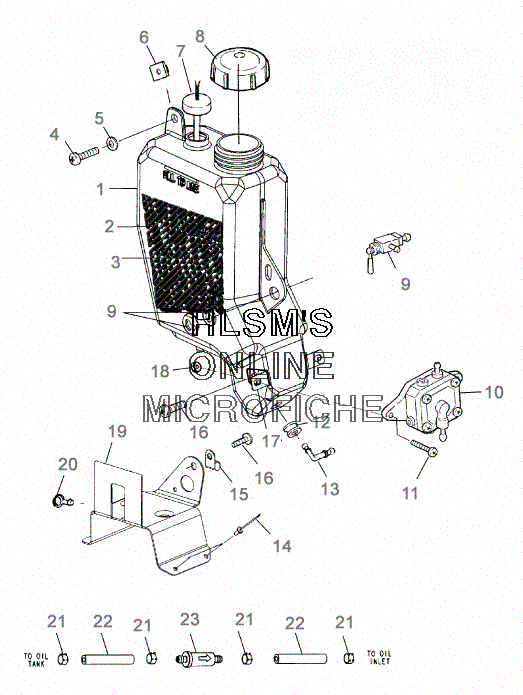

OIL TANK ASSEMBLY для Polaris SPORT TOURING (S00SD5BS) - 2000 года выпуска
-
№АртикулНазвание
-
11253313 TANK, OIL W/FOILTANK, OIL W/FOIL
-
25811934 FOIL, OIL TANKFOIL, OIL TANK
-
37077442 DECAL, FUEL SHUT OFFDECAL, FUEL SHUT OFF
-
47512276 BOLTBOLT
-
57558302 WASHER, WROUGHTWASHER, WROUGHT
-
67670096 NUTNUT
-
74110134 SENSOR, OIL LEVELSENSOR, OIL LEVEL
-
81240094 CAP, OIL, VENTED/CUSTOM COLORCAP, OIL, VENTED/CUSTOM COLOR
-
117517264 SCREWSCREW
-
127052028 GROMMET, TANK FITTINGGROMMET, TANK FITTING
-
137052208 FTTNG, 90 D.PRESSFTTNG, 90 D.PRESS
-
147661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
157080367 CLAMP, CABLECLAMP, CABLE
-
167517615 SCREWSCREW
-
175242680 BRACKET, FUEL PUMP MOUNT ZBRACKET, FUEL PUMP MOUNT Z
-
187542122 NUT, LOCKNUT, LOCK
-
195243636 BRACKET, OIL/COOLANT TANKBRACKET, OIL/COOLANT TANK
-
204020139 CLIP, PLASTICCLIP, PLASTIC
-
217080307 CLAMPCLAMP
-
228450003-1525 FUEL LINE, (1/4 ID 1525 CM.) (OPT)FUEL LINE, (1/4 ID 1525 CM.) (OPT)
-
232530009 FILTER, IN-LINEFILTER, IN-LINE
