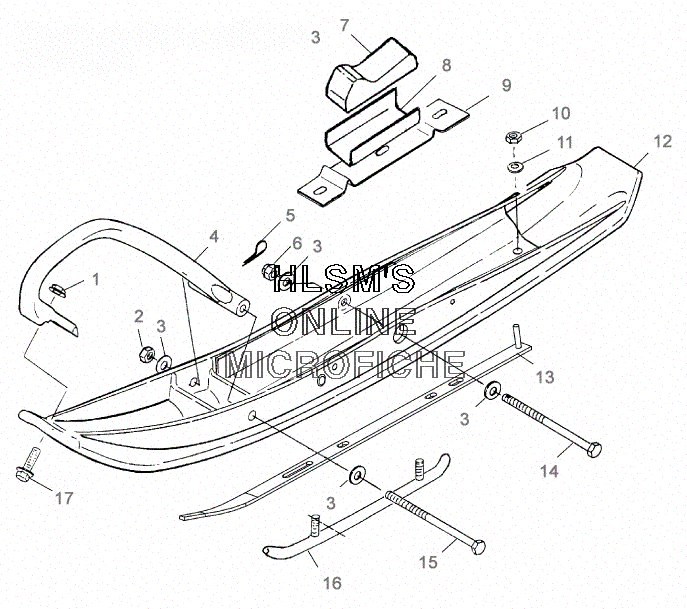

SKI ASSEMBLY для Polaris SPORT TOURING (S00SD5BS) - 2000 года выпуска
-
№АртикулНазвание
-
17542321 NUT, LOCKNUT, LOCK
-
27542411 NUT, LOCKNUT, LOCK
-
37555832 WASHERWASHER
-
45432209-070 TOE, PLASTIC SKI (BLACK)TOE, PLASTIC SKI (BLACK)
-
57661205 PIN, COTTERPIN, COTTER
-
67542438 NUT, CASTLENUT, CASTLE
-
75412018 STOP, SKI RUBBERSTOP, SKI RUBBER
-
85243824 RETAINER, SKI RUBBERRETAINER, SKI RUBBER
-
95241912-067 SUPPORT, SKI RUBBER (BLACK)SUPPORT, SKI RUBBER (BLACK)
-
107542324 NUTNUT
-
117558302 WASHER, WROUGHTWASHER, WROUGHT
-
121820610-070 COMP.SKIBLANK, W/RK SDL (BLACK)COMP.SKIBLANK, W/RK SDL (BLACK)
-
131012748-067 PLATE, SKAG (1.375 STUD) (BLACK)PLATE, SKAG (1.375 STUD) (BLACK)
-
132872019 SKAG KIT, E/Z 3'' CO W/WR/ST (PAIR)SKAG KIT, E/Z 3'' CO W/WR/ST (PAIR)
-
147512596 SCREWSCREW
-
157515514 BOLTBOLT
-
162872018 SKAG KIT, EZ, 3'' COMP. SKI (PAIR)SKAG KIT, EZ, 3'' COMP. SKI (PAIR)
-
177515307 BOLTBOLT
