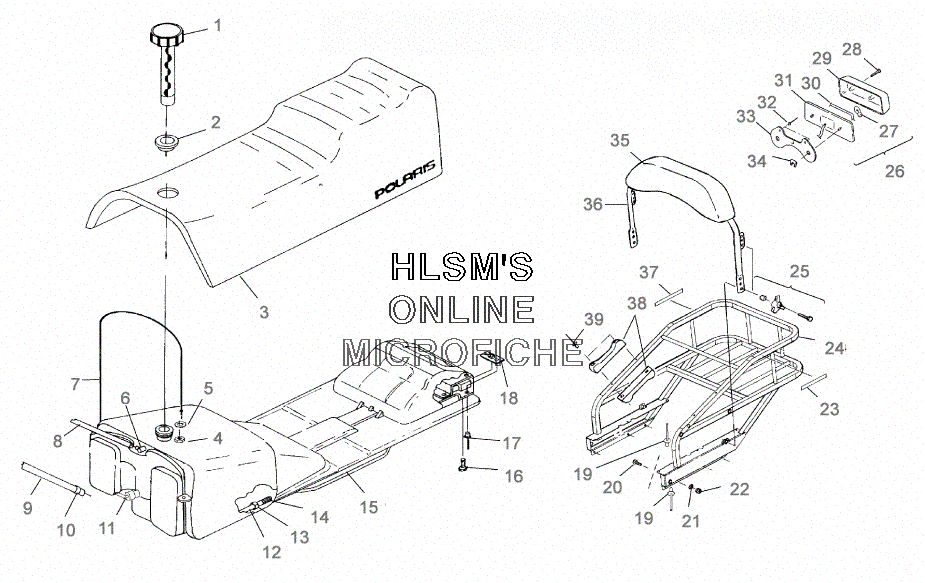

SEAT W/ GAS TANK ASSEMBLY для Polaris SPORT TOURING (S00SD5BS) - 2000 года выпуска
-
№АртикулНазвание
-
12511248 CAP, GAS W/GAUGECAP, GAS W/GAUGE
-
15810513 GASKET, GAS CAPGASKET, GAS CAP
-
25410842 GROMMET, FUELTANKGROMMET, FUELTANK
-
32682504 CUSHION, SEAT ASSY. (INCL. 2,3,5,6,7,8,11,13,14,15,17)CUSHION, SEAT ASSY. (INCL. 2,3,5,6,7,8,11,13,14,15,17)
-
32682505 COVER, SEAT ASSY.COVER, SEAT ASSY.
-
47541925 NUTNUT
-
57555904 BURR, RIVETBURR, RIVET
-
67052095 FITTING (90 DEG 1/8)FITTING (90 DEG 1/8)
-
77080559 CABLE, TANK RETENTIONCABLE, TANK RETENTION
-
88450061-600 FUEL LINE (3MMX7MM) (OPT)FUEL LINE (3MMX7MM) (OPT)
-
98350018-160 TUBING, ETHER ERETHNE, (160CM) (OPT)TUBING, ETHER ERETHNE, (160CM) (OPT)
-
107080307 CLAMPCLAMP
-
117052143 FITTING, OUT (90 DEG DOUBLE)FITTING, OUT (90 DEG DOUBLE)
-
128350019-160 FUEL LINE, ESTER (OPT)FUEL LINE, ESTER (OPT)
-
137080402 RING, COMPRESSIONRING, COMPRESSION
-
147052243 FUEL PICKUP, W/FILTERFUEL PICKUP, W/FILTER
-
152460808 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
167512242 SCREWSCREW
-
177621301 RIVETRIVET
-
187542147 NUT, RETAINERNUT, RETAINER
-
197661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
207515363 BOLTBOLT
-
217558402 WASHER, STEELWASHER, STEEL
-
227542324 NUTNUT
-
237072225 DECAL, CARRIER (ENG.)DECAL, CARRIER (ENG.)
-
241012964-067 WELD, RACK W/GRAB HANDLE (BLACK)WELD, RACK W/GRAB HANDLE (BLACK)
-
252670130 KNOB ASSY., BACKRESTKNOB ASSY., BACKREST
-
262410180 TAILLIGHT ASSY. (INCL. 27, 31)TAILLIGHT ASSY. (INCL. 27, 31)
-
274030043 BULB, TAILLIGHTBULB, TAILLIGHT
-
287512088 SCREW, TAILLIGHTSCREW, TAILLIGHT
-
294032085 LENS, STOP AND TAILLIGHTLENS, STOP AND TAILLIGHT
-
304032086 GASKET, TAILLIGHT AND STOPLIGHTGASKET, TAILLIGHT AND STOPLIGHT
-
314032087 BACKING, STOP AND TAILBACKING, STOP AND TAIL
-
327621472 RIVETRIVET
-
335811832 MOUNT, TAILLIGHTMOUNT, TAILLIGHT
-
347670093 CLIP, RETAINERCLIP, RETAINER
-
352681265 COVER, BACKRESTCOVER, BACKREST
-
362681356 BACKREST ASSY. (INCL. 35)BACKREST ASSY. (INCL. 35)
-
377072266 DECAL, CARRIERDECAL, CARRIER
-
385433383 GRIP, HAND W/INSERTGRIP, HAND W/INSERT
-
397661059 RIVET (5MMX35MM)RIVET (5MMX35MM)
