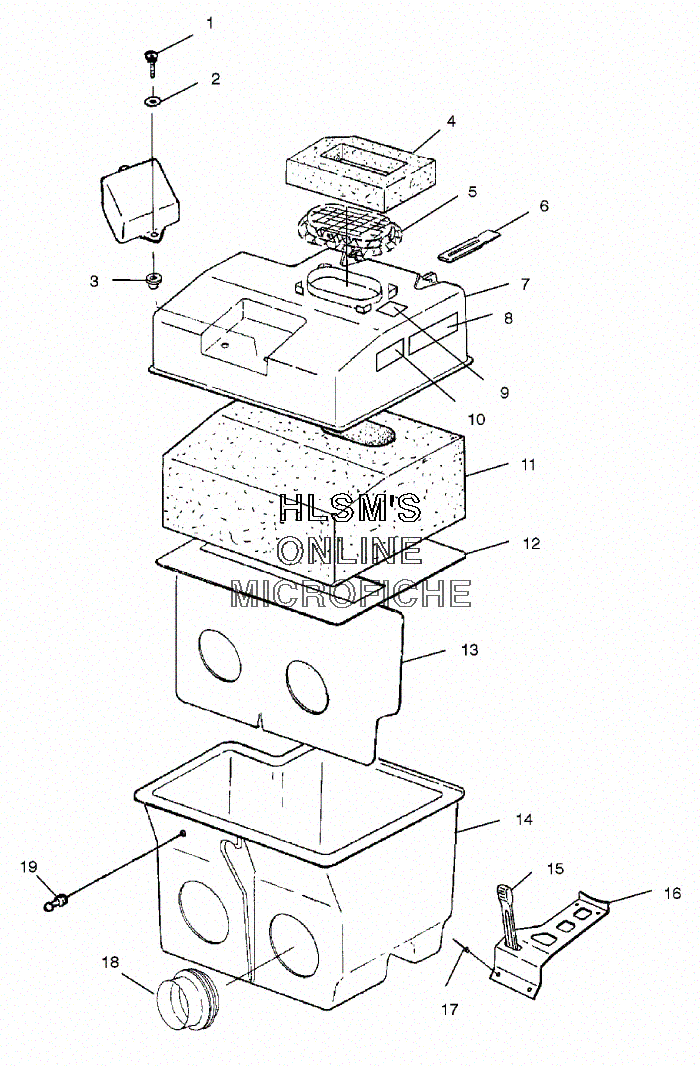

AIR BOX для Polaris TRAIL TOURING (S00ST5BS) - 2000 года выпуска
-
№АртикулНазвание
-
17512222 SCREWSCREW
-
27552604 WASHERWASHER
-
37541923 NUT, WELLNUT, WELL
-
45811606 FOAM, AIRBOX CHIMNEYFOAM, AIRBOX CHIMNEY
-
55243219 MESH, WIRE FORMEDMESH, WIRE FORMED
-
65411075 RETAINER, TABRETAINER, TAB
-
75433565 TOP, SILENCER INTAKETOP, SILENCER INTAKE
-
87073820 DECAL, ADJUST DRIVEN CLUTCHDECAL, ADJUST DRIVEN CLUTCH
-
97075351 DECAL, CAUTION AIRBOXDECAL, CAUTION AIRBOX
-
107073426 DECAL, GREASINGDECAL, GREASING
-
115811564 FOAM, AIRBOX INTERNAL (TOP)FOAM, AIRBOX INTERNAL (TOP)
-
125850134 PLATE, SILENCER INTAKEPLATE, SILENCER INTAKE
-
135850139 PLATE, SILENCER INTAKE VERT.PLATE, SILENCER INTAKE VERT.
-
145432932 SILENCER, INTAKESILENCER, INTAKE
-
155411129 STRAP, TIE DOWNSTRAP, TIE DOWN
-
165243729 BRACKET, SILENCER MOUNT (LOWER)BRACKET, SILENCER MOUNT (LOWER)
-
177661638 RIVET, INTERLOCK BRIVET, INTERLOCK B
-
185411467 BOOT, CARBBOOT, CARB
-
197052127 FITTING, HOSEFITTING, HOSE
