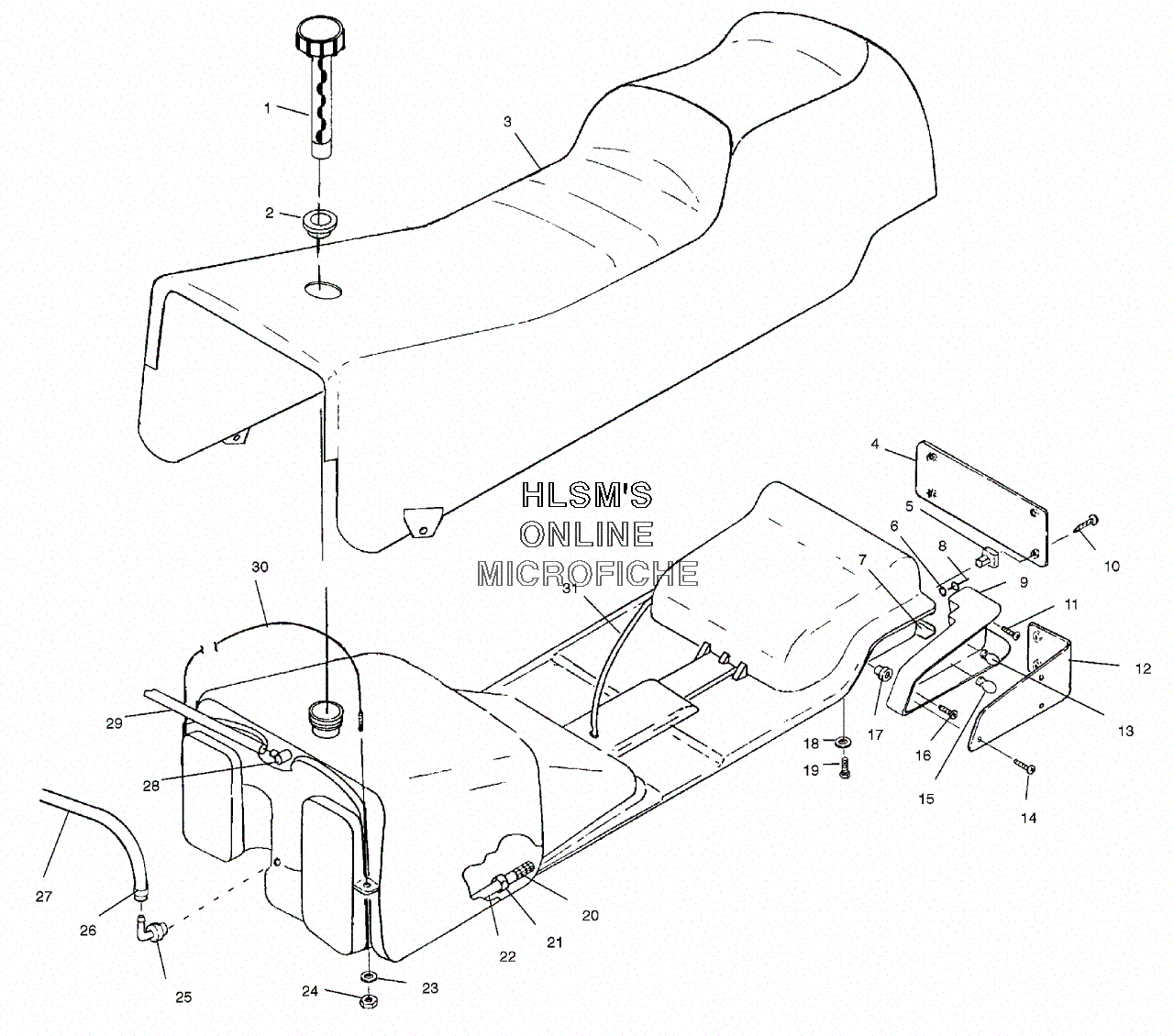

SEAT W/ GAS TANK ASSEMBLY для Polaris TRAIL TOURING (S00ST5BS) - 2000 года выпуска
-
№АртикулНазвание
-
12511248 CAP, GAS W/GAUGECAP, GAS W/GAUGE
-
15810513 GASKET, GAS CAPGASKET, GAS CAP
-
25410815 GROMMET, FUELTANKGROMMET, FUELTANK
-
32682498 CUSHION, SEAT TOUR ASSY. (INCL. 3, 17, 20, 25)CUSHION, SEAT TOUR ASSY. (INCL. 3, 17, 20, 25)
-
32682368 COVER ASSY., SEAT TOURCOVER ASSY., SEAT TOUR
-
45432008 REFLECTOR, SEAT (CENTER)REFLECTOR, SEAT (CENTER)
-
57546908 NUTNUT
-
67555904 BURR, RIVETBURR, RIVET
-
71012838-067 BRACKET, SEAT MOUNT ASSY. W/CLIP (BLACK)BRACKET, SEAT MOUNT ASSY. W/CLIP (BLACK)
-
87621433 RIVETRIVET
-
95432002 HOUSING, LENS (LEFT)HOUSING, LENS (LEFT)
-
95432003 HOUSING, LENS (RIGHT)HOUSING, LENS (RIGHT)
-
107511840 SCREWSCREW
-
117522004 SCREW, SELF TAPSCREW, SELF TAP
-
125432031 LENS (LEFT)LENS (LEFT)
-
125432032 LENS (RIGHT)LENS (RIGHT)
-
134030045 BULB, BRAKELIGHTBULB, BRAKELIGHT
-
147512054 SCREWSCREW
-
154032084 BULB, TAILLIGHTBULB, TAILLIGHT
-
167511954 SCREWSCREW
-
177541901 NUT, WELLNUT, WELL
-
187558302 WASHER, WROUGHTWASHER, WROUGHT
-
197512242 SCREWSCREW
-
207052243 FUEL PICKUP, W/FILTERFUEL PICKUP, W/FILTER
-
217080402 RING, COMPRESSIONRING, COMPRESSION
-
228350019-1525 HOSE (OPT)HOSE (OPT)
-
237555904 BURR, RIVETBURR, RIVET
-
247541925 NUTNUT
-
257052143 FITTING, OUTER (90 DEGREE DOUBLE)FITTING, OUTER (90 DEGREE DOUBLE)
-
267080307 CLAMPCLAMP
-
278350018-160 TUBING, ETHER ERETHNE (160CM) (OPT)TUBING, ETHER ERETHNE (160CM) (OPT)
-
287052095 FITTING (90 DEG, 1/8)FITTING (90 DEG, 1/8)
-
298450061-600 FUEL LINE (3MMX7MM) (OPT)FUEL LINE (3MMX7MM) (OPT)
-
307080559 CABLE, TANK, RETENTIONCABLE, TANK, RETENTION
-
312460524 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
