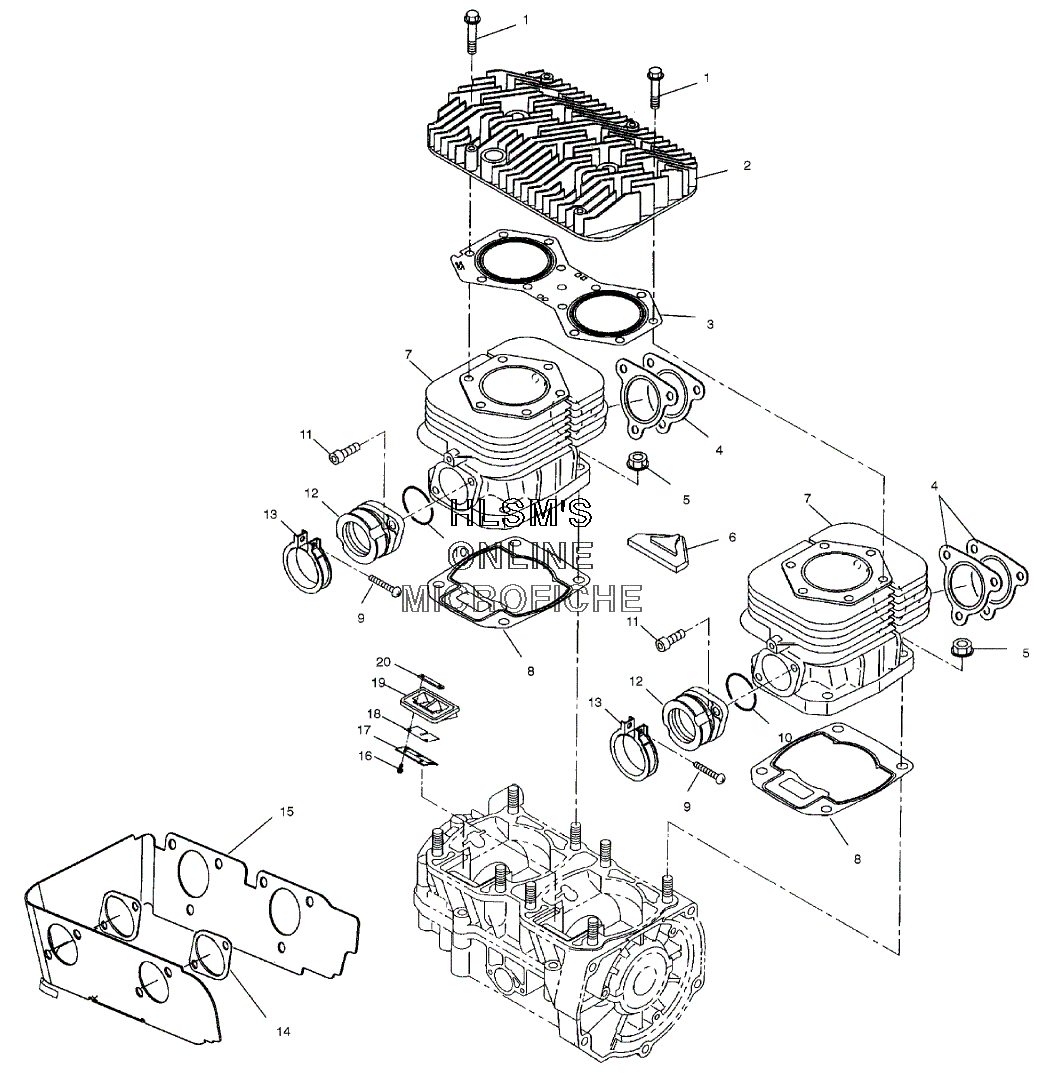

CYLINDER ASSEMBLY для Polaris TRAIL TOURING (S00ST5BS) - 2000 года выпуска
-
№АртикулНазвание
-
13084271 BOLT, FLANGEBOLT, FLANGE
-
23085703 HEAD, CYLINDERHEAD, CYLINDER
-
33085704 GASKET, HEADGASKET, HEAD
-
43085714 GASKET, EXHAUSTGASKET, EXHAUST
-
53082911 NUT, FLANGENUT, FLANGE
-
63085692 COVER, CYLINDER BAFFLECOVER, CYLINDER BAFFLE
-
73085936 CYLINDER UNITCYLINDER UNIT
-
83085666 GASKET, CYLINDERGASKET, CYLINDER
-
93081497 SCREWSCREW
-
103085619 O-RINGO-RING
-
113081330 BOLT, ALLENBOLT, ALLEN
-
123085670 ADAPTER (INCL. 10)ADAPTER (INCL. 10)
-
133083166 BAND ASSY. (INCL. 9)BAND ASSY. (INCL. 9)
-
145411614 GASKET, INTAKEGASKET, INTAKE
-
155243221 BAFFLE, CYLINDERBAFFLE, CYLINDER
-
163085717 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
173085716 STOPPERSTOPPER
-
183085715 VALVE, REEDVALVE, REED
-
193086386 VALVE, REED ASSY.VALVE, REED ASSY.
-
203085718 PLATEPLATE
