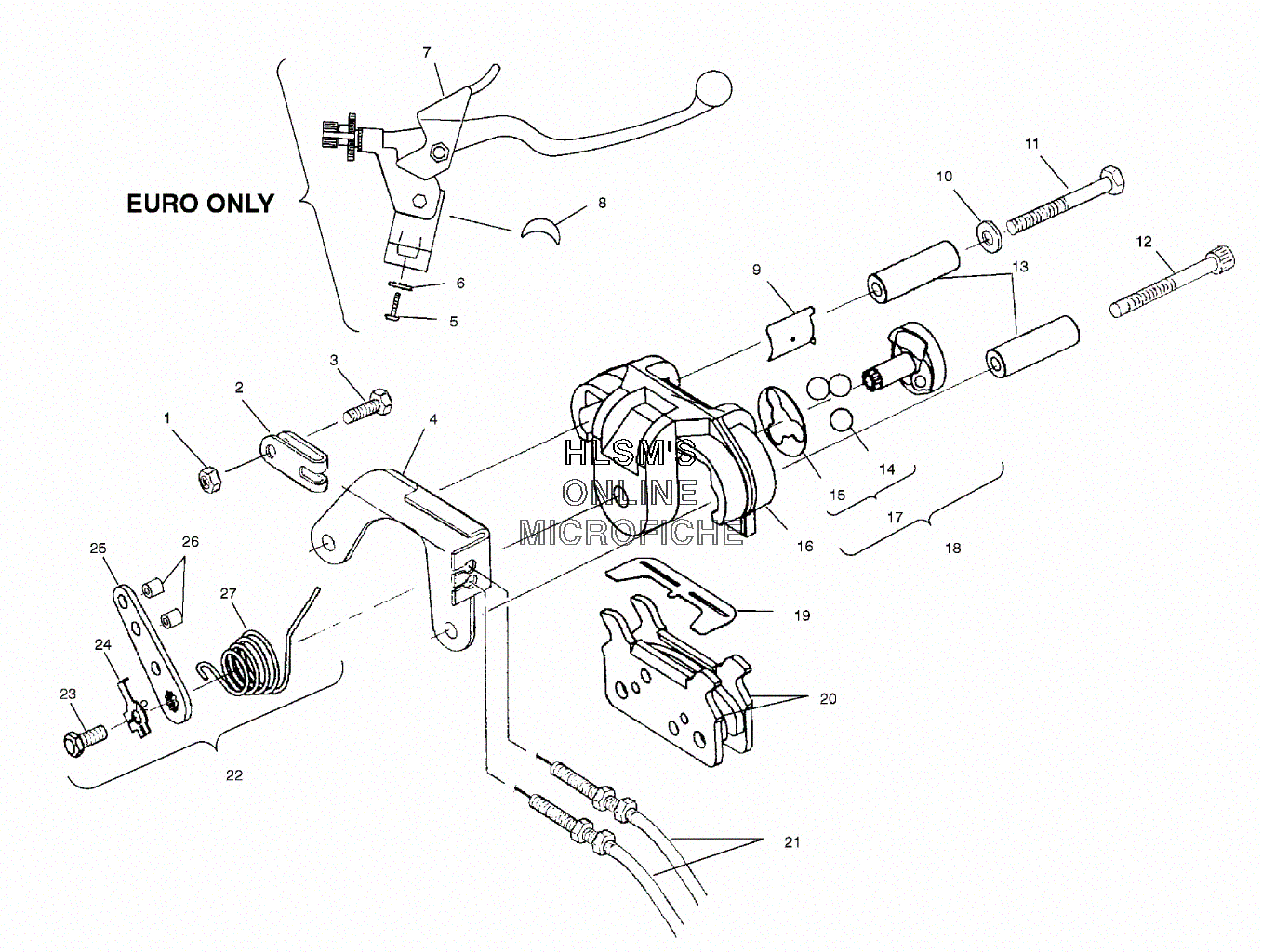

BRAKE ASSEMBLY для Polaris EURO WIDETRAK LX (E01SU4BS) - 2001 года выпуска

№

Артикул

Название
21

1910399 CALIPER, M10A TYPE 81, WIDETRAK (INCL. 9, 13-15, 18-20, 22, 27)

CALIPER, M10A TYPE 81, WIDETRAK (INCL. 9, 13-15, 18-20, 22, 27)

54 080 ₽
1

7542103 NUT, LOCK

NUT, LOCK

830 ₽
2

7080316 PIN, CLEVIS

PIN, CLEVIS

1 670 ₽
3

7512240 BOLT

BOLT

460 ₽
4

5241868-067 BRACKET, BRAKE (BLK)

BRACKET, BRAKE (BLK)

7 070 ₽
5

7512040 SCREW

SCREW

710 ₽
6

7555780 WASHER, TOOTH LOCK

WASHER, TOOTH LOCK

0 ₽
7

2050039 LEVER ASSY., BRAKE

LEVER ASSY., BRAKE

0 ₽
8

5130860 SPACER, BRAKE LEVER

SPACER, BRAKE LEVER

3 540 ₽
10

7555734 WASHER

WASHER

110 ₽
11

7517346 SCREW

SCREW

670 ₽
12

7517340 SCREW

SCREW

2 910 ₽
13

2200992 BUSHING MOUNT KIT

BUSHING MOUNT KIT

10 460 ₽
16

2200993 CALIPER CASTING KIT

CALIPER CASTING KIT

39 520 ₽
17

2200994 BALL BEARING KIT (INCL. 14, 15)

BALL BEARING KIT (INCL. 14, 15)

5 830 ₽
18

2200989 CW.ROTOR KIT (INCL. 14, 15)

CW.ROTOR KIT (INCL. 14, 15)

18 720 ₽
19

2200990 PAD KIT, SPRING AND CLIP KIT (INCL. 9)

PAD KIT, SPRING AND CLIP KIT (INCL. 9)

8 110 ₽
20

2201567 BRAKE PAD, TYPE 81 MECH KIT (SET OF 2/INCL. 9, 19, 24)

BRAKE PAD, TYPE 81 MECH KIT (SET OF 2/INCL. 9, 19, 24)

25 590 ₽
21

7080667 CABLE, BRAKE, PARKING

CABLE, BRAKE, PARKING

11 440 ₽
22

2200991 LEVER AND SPRING KIT (INCL. 23, 24, 25, 27)

LEVER AND SPRING KIT (INCL. 23, 24, 25, 27)

8 740 ₽
26

5332795 BUSHING

BUSHING

0 ₽
