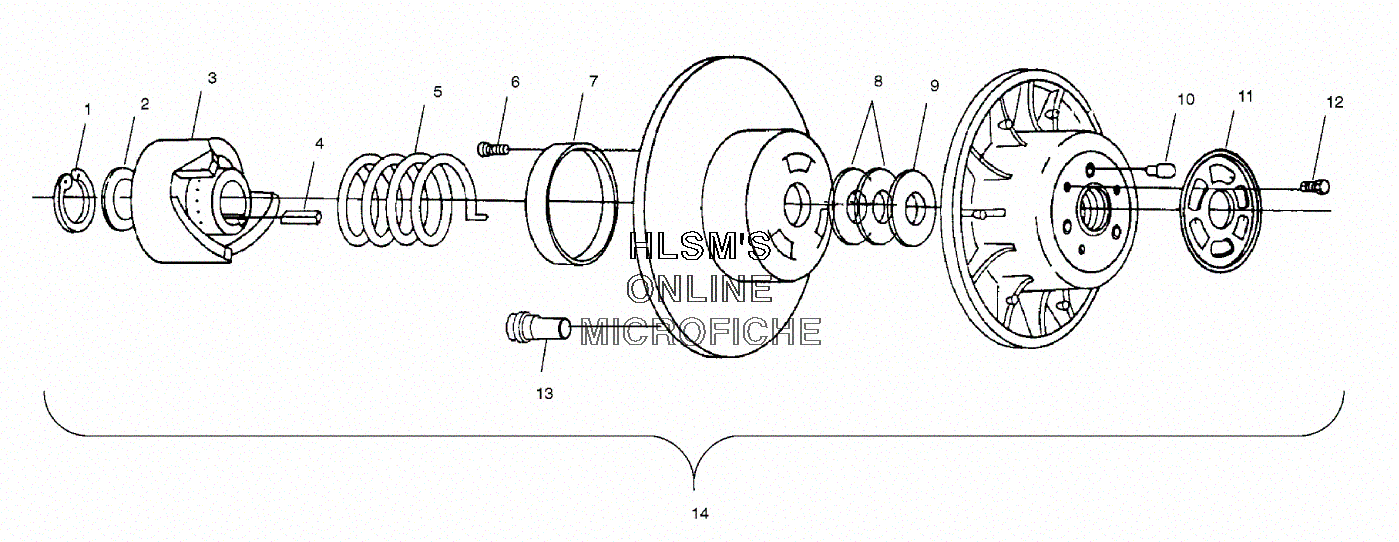

CLUTCH - DRIVEN для Polaris EURO WIDETRAK LX (E01SU4BS) - 2001 года выпуска
-
№АртикулНазвание
-
17714804 RING, RETAININGRING, RETAINING
-
27556804 WASHERWASHER
-
35130895 RAMP, DRIVEN (36 DEG)RAMP, DRIVEN (36 DEG)
-
47721103 KEY SQUAREKEY SQUARE
-
57041499 SPRING, CLUTCH (SILVER)SPRING, CLUTCH (SILVER)
-
67512048 SCREWSCREW
-
73569803 BUSHING, D.U.BUSHING, D.U.
-
87556804 WASHER (.03)WASHER (.03)
-
87556076 WASHER (.025)WASHER (.025)
-
87555898 WASHER (.02)WASHER (.02)
-
97555865 WASHER, DRIVE CLUTCHWASHER, DRIVE CLUTCH
-
105020653 PIN, CLUTCHPIN, CLUTCH
-
115222878 CAM, DRIVEN, ADJUSTABLECAM, DRIVEN, ADJUSTABLE
-
127515133 SCREWSCREW
-
135430466 BUTTON, RAMPBUTTON, RAMP
-
141322196 DRIVEN CLUTCH ASSY., BASIC (203 N/B) (INCL. 1-13)DRIVEN CLUTCH ASSY., BASIC (203 N/B) (INCL. 1-13)
