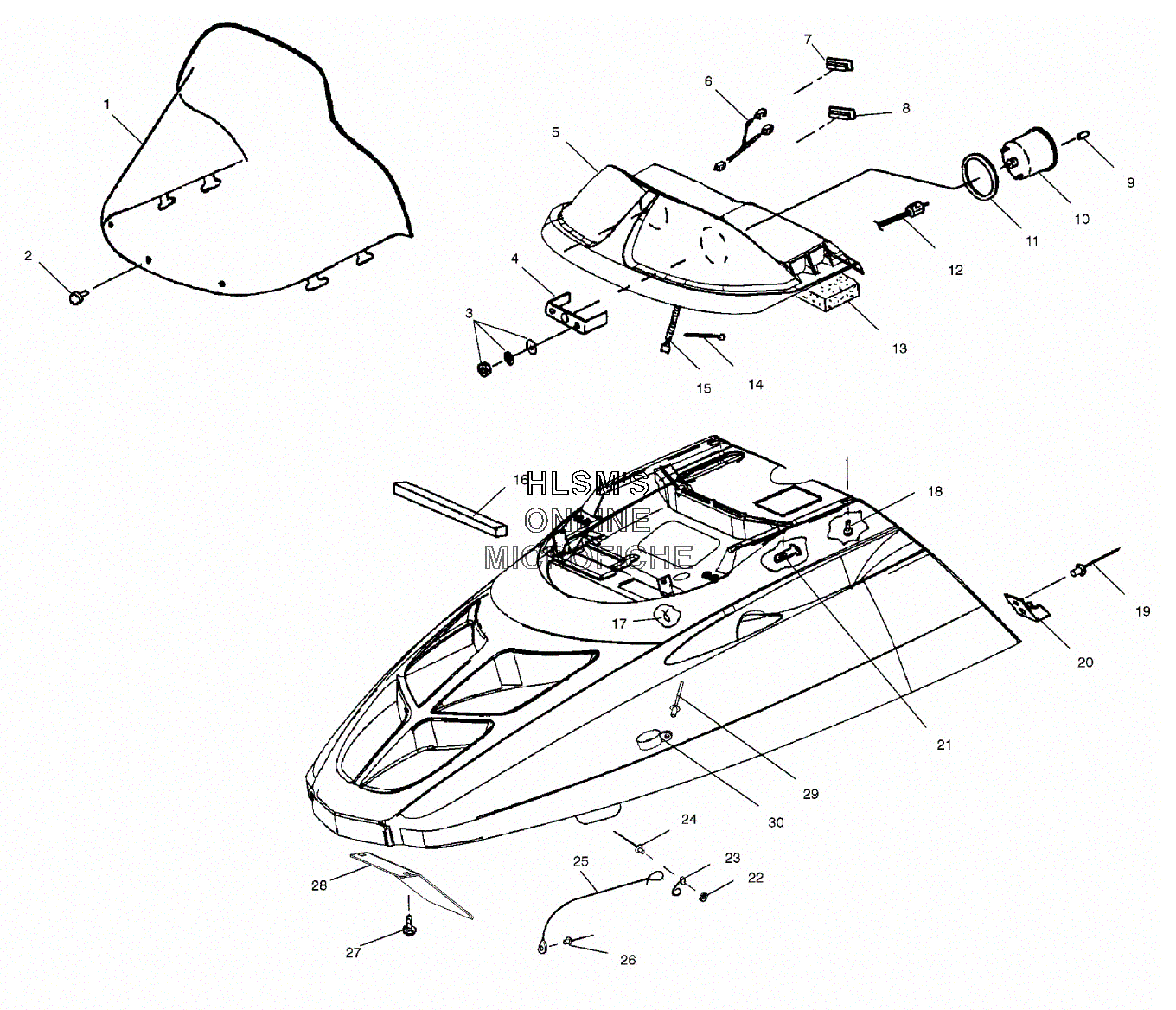

HOOD ASSEMBLY W/ WINDSHIELD для Polaris EURO WIDETRAK LX (E01SU4BS) - 2001 года выпуска
-
№АртикулНазвание
-
15433168 WINDSHIELD, GEN 2, FLR, 20'' CLEARWINDSHIELD, GEN 2, FLR, 20'' CLEAR
-
27621509 RIVET, PLASTI-LOC.RIVET, PLASTI-LOC.
-
33280158 NUTNUT
-
33280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
33280157 WASHER, FLATWASHER, FLAT
-
43280210 BRACKET, TACH/SPEEDOMETER (5'')BRACKET, TACH/SPEEDOMETER (5'')
-
52632238 HOUSING, INSTRUMENT, W/T (INCL. WARNING DECALS)HOUSING, INSTRUMENT, W/T (INCL. WARNING DECALS)
-
62460877 HARNESS, JUMPER TEMP/REV W/THARNESS, JUMPER TEMP/REV W/T
-
74040011 INDICATOR 'TEMP' WARNINGINDICATOR 'TEMP' WARNING
-
84040019 INDICATOR'REVERSE'WARN.INDICATOR'REVERSE'WARN.
-
93280186 KNOB, TRIPODOMETER, THREADED (LEFT)KNOB, TRIPODOMETER, THREADED (LEFT)
-
103280304 SPEEDOMETER ASSY., 5'' (120MPH) (90DEG)SPEEDOMETER ASSY., 5'' (120MPH) (90DEG)
-
104030015 BULB TAILLIGHT/TACH/SPEEDOMETERBULB TAILLIGHT/TACH/SPEEDOMETER
-
113280209 CUSHION, TACH/SPEEDOMETER, RUBBERCUSHION, TACH/SPEEDOMETER, RUBBER
-
123280341 CABLE, SPEEDOMETER (90 IN)CABLE, SPEEDOMETER (90 IN)
-
135811625 FOAM, PREFILTERFOAM, PREFILTER
-
147080138 STRAP PANDUITSTRAP PANDUIT
-
152460909 HARNESS-HEADLIGHTHARNESS-HEADLIGHT
-
155811765 FOIL (4X5 3M#1430PSA5.5MIL)FOIL (4X5 3M#1430PSA5.5MIL)
-
165811687 FOAM, HEADLIGHT SEAL W/PSAFOAM, HEADLIGHT SEAL W/PSA
-
177080886 CLIP, ROSEBUD (GRAY)CLIP, ROSEBUD (GRAY)
-
187517441 SCREWSCREW
-
197621334 RIVETRIVET
-
205430733 CUP, HOOD LATCHCUP, HOOD LATCH
-
215410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
227555904 BURR, RIVETBURR, RIVET
-
235242893 CLIP, PIGTAILCLIP, PIGTAIL
-
247661084 RIVET (3/16 .251-.375)RIVET (3/16 .251-.375)
-
257080764 CABLE, HOOD, HYBRIDCABLE, HOOD, HYBRID
-
267621402 POP RIVETPOP RIVET
-
277512068 SCREWSCREW
-
285243393 DEFLECTOR, AIRDEFLECTOR, AIR
-
297621485 RIVETRIVET
-
307080833 CLAMP, 1''UMPC O#AN735016CLAMP, 1''UMPC O#AN735016
