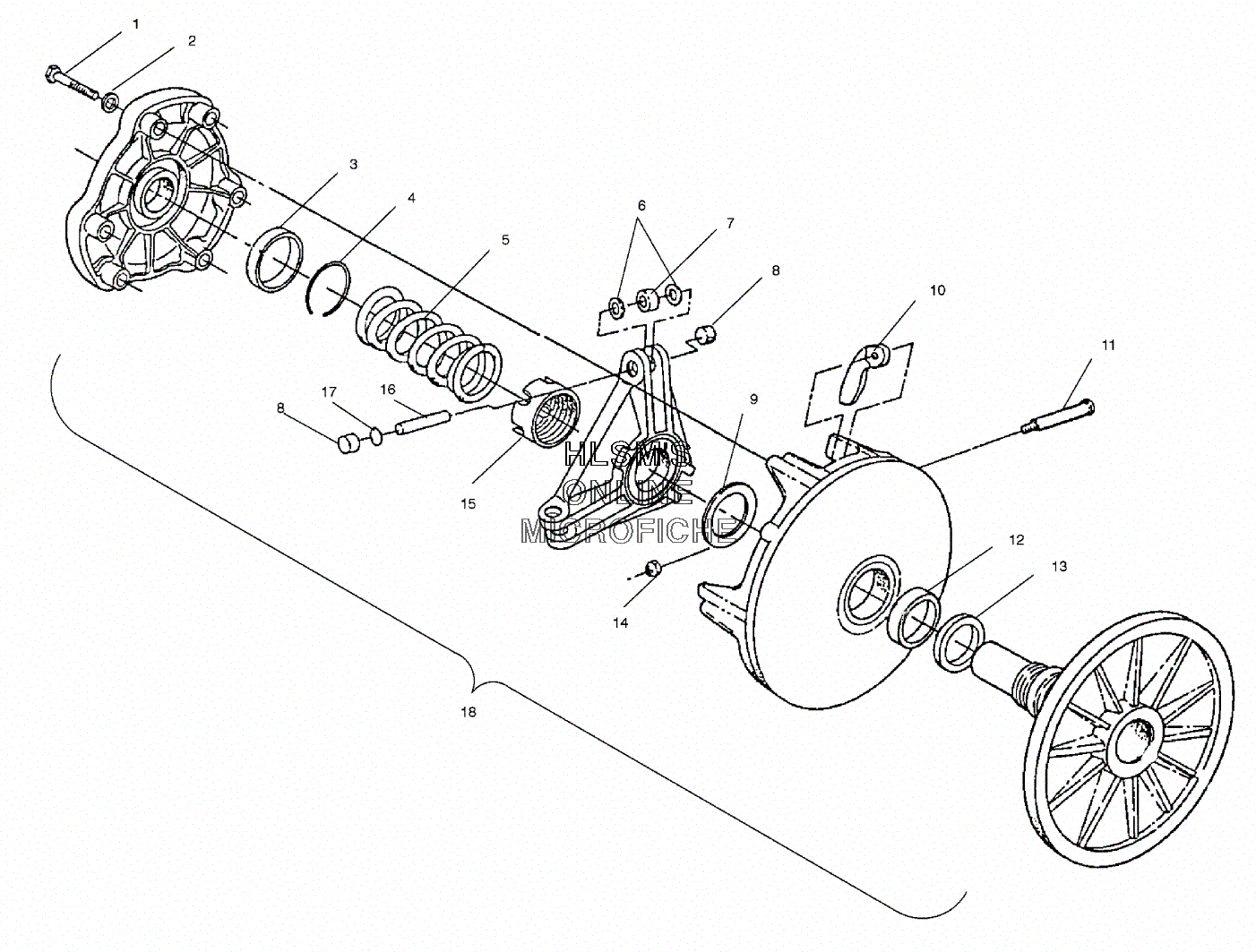

CLUTCH - DRIVE для Polaris TRAIL RMK (S01SR5BS) - 2001 года выпуска

№

Артикул

Название
1

7512265 BOLT

BOLT

630 ₽
2

7552801 LOCK WASHER

LOCK WASHER

460 ₽
3

3576516 COVER, BEARING GARMAX

COVER, BEARING GARMAX

4 160 ₽
4

7710417 RING, RETAINING BOLT

RING, RETAINING BOLT

150 ₽
5

7041781 SPRING, CLUTCH (DARK BLUE/WHITE)

SPRING, CLUTCH (DARK BLUE/WHITE)

9 780 ₽
6

5430945 WASHER

WASHER

420 ₽
7

1321622 ROLLER AND BUSHING ASSY.

ROLLER AND BUSHING ASSY.

8 110 ₽
8

5430445 BUTTON, GUIDE

BUTTON, GUIDE

1 460 ₽
9

5210752 SPACER (.020'')

SPACER (.020'')

110 ₽
9

5210753 SPACER (.032'')

SPACER (.032'')

420 ₽
9

5210754 SPACER (.050'')

SPACER (.050'')

580 ₽
9

5242981 SPACER (.025'')

SPACER (.025'')

260 ₽
10

1321684 WT/BUSH.ASSY., 10-56 (6) (10-56)

WT/BUSH.ASSY., 10-56 (6) (10-56)

6 240 ₽
11

7515105 PIN, WT., HARDENED

PIN, WT., HARDENED

1 870 ₽
12

3576502 SLEEVE, BEARING

SLEEVE, BEARING

4 990 ₽
13

5010188 BUSHING, RETAINER

BUSHING, RETAINER

1 520 ₽
14

7541906 NUT FLEX LOC

NUT FLEX LOC

250 ₽
15

5020425 NUT, JAM

NUT, JAM

4 370 ₽
16

5020422 PIN-ROLLER

PIN-ROLLER

670 ₽
17

2200387 SHIM, DRIVE CLUTCH KIT

SHIM, DRIVE CLUTCH KIT

2 910 ₽
18

1321768 CLUTCH, BASIC#94 (DRIVE) (INCL. ALL LESS 5, 10)

CLUTCH, BASIC#94 (DRIVE) (INCL. ALL LESS 5, 10)

0 ₽
18

2200386 CLUTCH UPDATE KIT (INCL. 6-8, 11, 16, 17)

CLUTCH UPDATE KIT (INCL. 6-8, 11, 16, 17)

31 200 ₽
