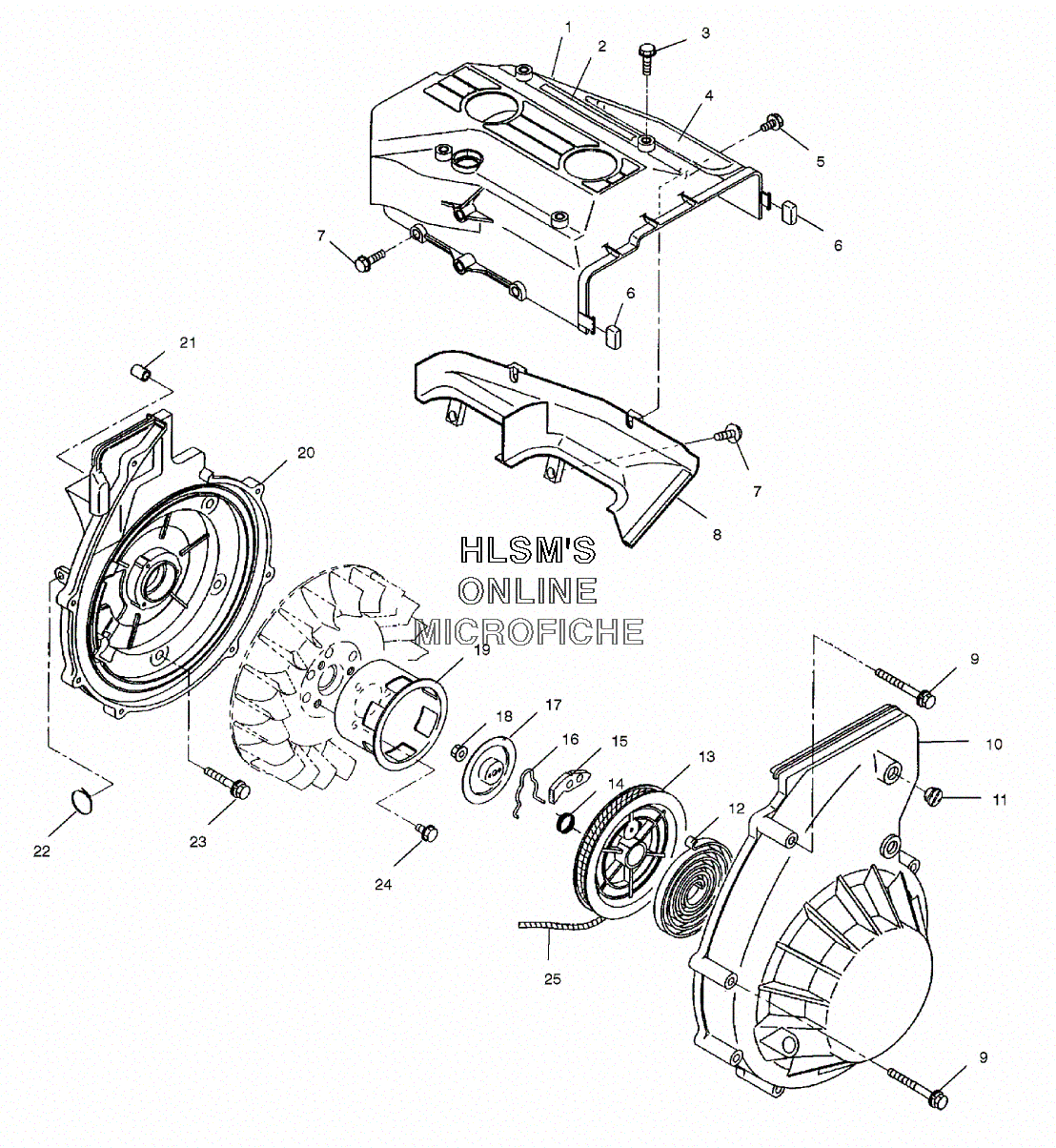

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris TRAIL RMK (S01SR5BS) - 2001 года выпуска`
-
№АртикулНазвание
-
13086991 BAFFLE-1 CYLINDERBAFFLE-1 CYLINDER
-
27077754 DECAL, ''POLARIS'' ENGINE SHROUD (BLUE)DECAL, ''POLARIS'' ENGINE SHROUD (BLUE)
-
33084566 BOLT, FLANGEBOLT, FLANGE
-
47077753 DECAL, ''550'' ENGINE SHROUDDECAL, ''550'' ENGINE SHROUD
-
53085693 BOLT, FLANGEBOLT, FLANGE
-
63085690 CAP, CYL. BAFFLECAP, CYL. BAFFLE
-
73085694 BOLT, FLANGEBOLT, FLANGE
-
83085691 BAFFLE #2, CYL.BAFFLE #2, CYL.
-
93083550 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
103085684 STARTER, RECOIL (INCL. 12-18, 25)STARTER, RECOIL (INCL. 12-18, 25)
-
103085722 STARTER CASE COMPL.STARTER CASE COMPL.
-
113086792 PLUG, RUBBERPLUG, RUBBER
-
123083376 SPRING, SPIRALSPRING, SPIRAL
-
133083377 REEL, REWINDREEL, REWIND
-
143083463 SPRING, RETURNSPRING, RETURN
-
153083378 RATCHETRATCHET
-
163083379 SPRING, FRICTIONSPRING, FRICTION
-
173083464 PLATE, FRICTIONPLATE, FRICTION
-
183083381 NUT, FLANGENUT, FLANGE
-
193085685 PULLEY, STARTINGPULLEY, STARTING
-
203085913 HOUSING, BLOWERHOUSING, BLOWER
-
213084857 PIN, STRAIGHTPIN, STRAIGHT
-
223084823 BAND, WIREBAND, WIRE
-
233084225 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
243085688 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
253085723 ROPE, STARTERROPE, STARTER
