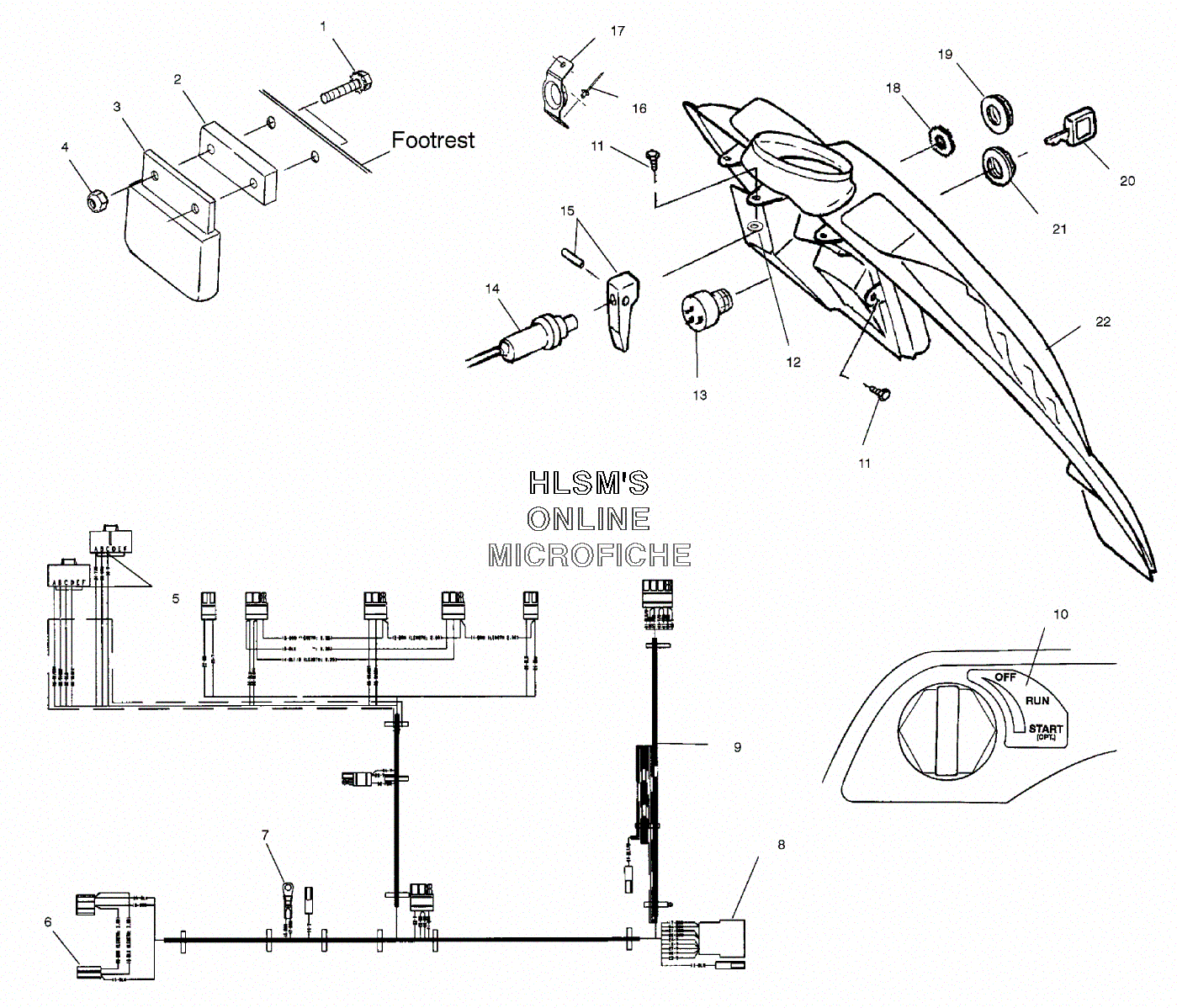

CONSOLE для Polaris TRAIL RMK (S01SR5BS) - 2001 года выпуска
-
№АртикулНазвание
-
17512031 BOLTBOLT
-
25211573 SPACER, REGULATORSPACER, REGULATOR
-
34060123 REGULATOR, (14.3VAC) LR-7REGULATOR, (14.3VAC) LR-7
-
47541925 NUTNUT
-
54010192 SOCKET PACKARD#12047767SOCKET PACKARD#12047767
-
64020063 HOUSINGHOUSING
-
74020092 TERMINAL, RINGTERMINAL, RING
-
84020057 HOUSING W/RECEPTACLEHOUSING W/RECEPTACLE
-
92460799 HARNESS, MAINWIRE STAR COMHARNESS, MAINWIRE STAR COM
-
107078603 DECAL, IGN, OFF/RUN/STARTDECAL, IGN, OFF/RUN/START
-
117515199 SCREWSCREW
-
127555932 WASHER, NYLONWASHER, NYLON
-
132200358 IGN.SWITCH KITIGN.SWITCH KIT
-
147080290 CABLE, CHOKE (INCL. 15, 19)CABLE, CHOKE (INCL. 15, 19)
-
155432943 CHOKE LEVER KIT (INCL. PIN)CHOKE LEVER KIT (INCL. PIN)
-
167621330 RIVET, POPRIVET, POP
-
175243049 GUIDE, RECOILGUIDE, RECOIL
-
187571610 WASHER, LOCKWASHER, LOCK
-
195432944 NUT, CHOKENUT, CHOKE
-
205410611 IGN. KEYIGN. KEY
-
217547035 NUT, IGNITIONNUT, IGNITION
-
225433693 CONSOLE, HYB, RACER, BASICCONSOLE, HYB, RACER, BASIC
