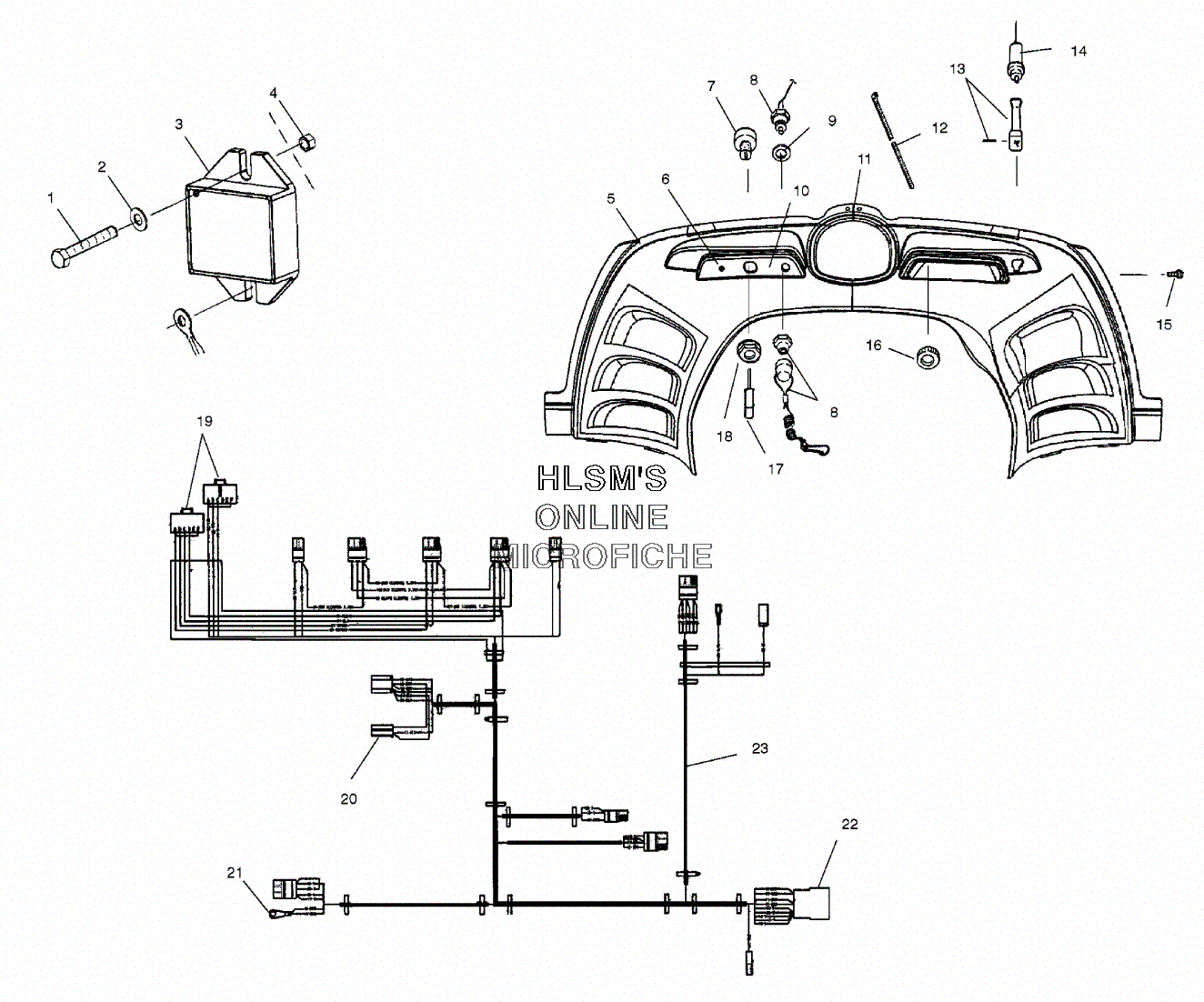

CONSOLE для Polaris XCF SP EDGE (S01NX4FS) - 2001 года выпуска
-
№АртикулНазвание
-
17512031 BOLTBOLT
-
27555746 BURR, RIVETBURR, RIVET
-
34010301 REGULATOR (AC, 14.3 V)REGULATOR (AC, 14.3 V)
-
47541925 NUTNUT
-
55434103 CONSOLE, EDGE, RACER SRPCONSOLE, EDGE, RACER SRP
-
64110263 SWITCH, HEATER (HI/LO)SWITCH, HEATER (HI/LO)
-
72201614 IGNITION SWITCH KIT, ES, FUELIGNITION SWITCH KIT, ES, FUEL
-
84010187 SWITCH, TETHER, HYBRIDSWITCH, TETHER, HYBRID
-
97558707 BUSHING, MACH.BUSHING, MACH.
-
107078318 DECAL, CONSOLE, IGNITIONDECAL, CONSOLE, IGNITION
-
117670082 SPEEDCLIP, 'U'TYPESPEEDCLIP, 'U'TYPE
-
127080138 STRAP PANDUITSTRAP PANDUIT
-
135432943 CHOKE LEVER KIT (INCL. PIN)CHOKE LEVER KIT (INCL. PIN)
-
147080290 CABLE, CHOKE (INCL. 13, 16)CABLE, CHOKE (INCL. 13, 16)
-
157515199 SCREWSCREW
-
165432944 NUT, CHOKENUT, CHOKE
-
175410611 IGNITION KEYIGNITION KEY
-
187547035 NUT, IGNITIONNUT, IGNITION
-
194010193 HOUSING, CONNECTOR, PAC #12186213HOUSING, CONNECTOR, PAC #12186213
-
204020063 HOUSINGHOUSING
-
214020092 TERMINAL, RINGTERMINAL, RING
-
224020057 HOUSING W/RECEPTACLEHOUSING W/RECEPTACLE
-
232460920 HARNESS, MAINWIRE TPSHARNESS, MAINWIRE TPS
