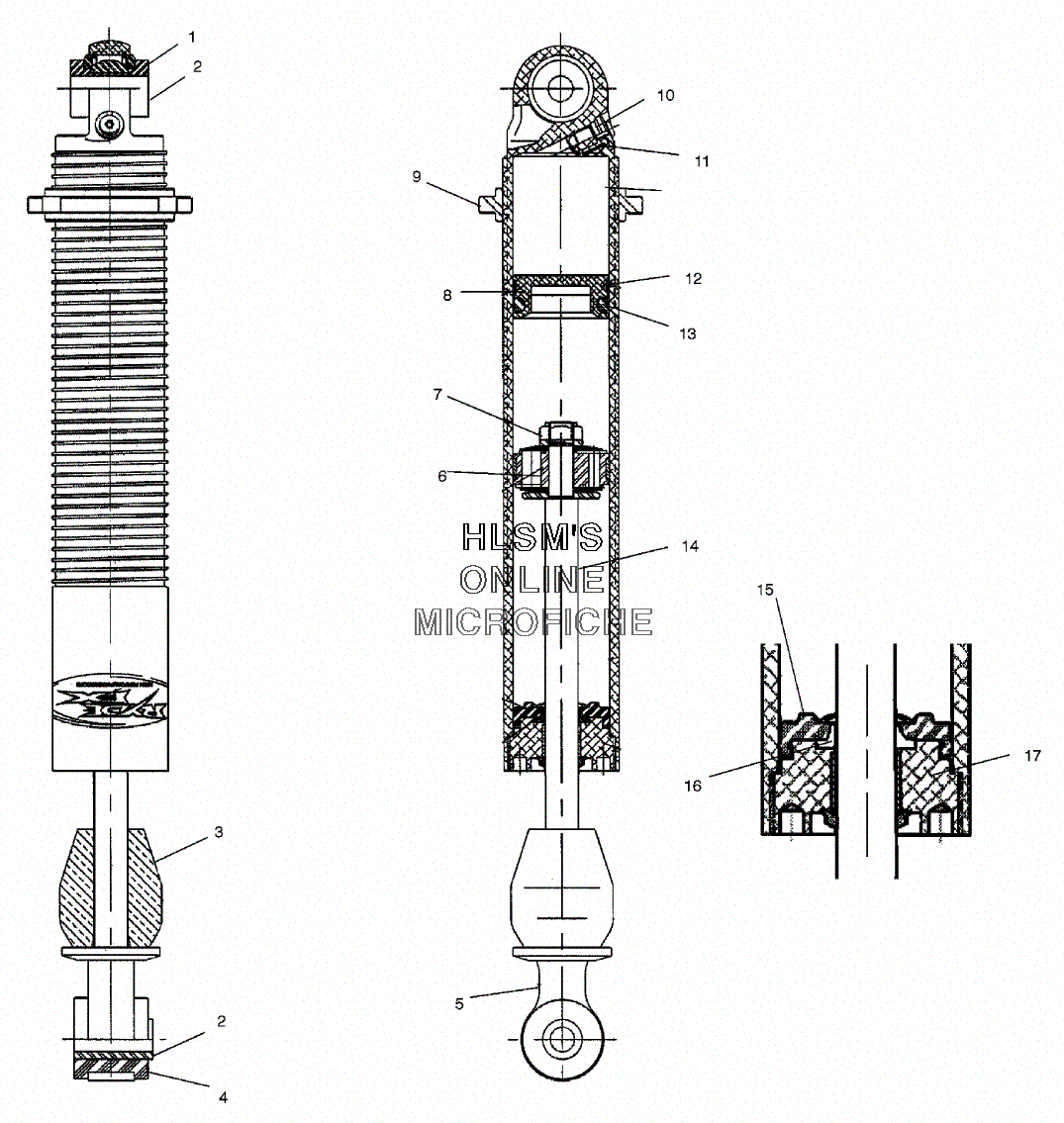

SUSPENSION - RYDE FX - IFS SHOCK для Polaris XCF SP EDGE (S01NX4FS) - 2001 года выпуска
-
№АртикулНазвание
-
147041990 SHOCK, IFS, IFP, ALUMINUM, ARVINSHOCK, IFS, IFP, ALUMINUM, ARVIN
-
142200618 VALVE PISTON KIT (FOX SHOCK)VALVE PISTON KIT (FOX SHOCK)
-
11700036 BUSHINGBUSHING
-
21700037 SLEEVESLEEVE
-
31700042 COMP, BUMPERCOMP, BUMPER
-
41700072 BUSHINGBUSHING
-
51700009 MOUNT (UPPER)MOUNT (UPPER)
-
61700109 BANDED PISTON, ORIFICE (.094'')BANDED PISTON, ORIFICE (.094'')
-
61700031 PISTON WEAR BANDPISTON WEAR BAND
-
61700077 TOP, WASHER (OUTER)TOP, WASHER (OUTER)
-
61700078 BACK, WASHER (UPPER)BACK, WASHER (UPPER)
-
71700057 NUTNUT
-
81700023 IFPIFP
-
91700033 SPRING RET NUTSPRING RET NUT
-
101700056 VALVE SCREWVALVE SCREW
-
111700076 PRESS, VALVE ASSY.PRESS, VALVE ASSY.
-
121700032 IFP WEAR BANDIFP WEAR BAND
-
131700048 IFP, O-RINGIFP, O-RING
-
141700034 SHAFT (1/2'' DIAX8.32''L)SHAFT (1/2'' DIAX8.32''L)
-
151700022 CAP SEALCAP SEAL
-
161700021 ROD SEALROD SEAL
-
171700007 CYLINDER HEAD ASSY. (1/2'' ROD)CYLINDER HEAD ASSY. (1/2'' ROD)
