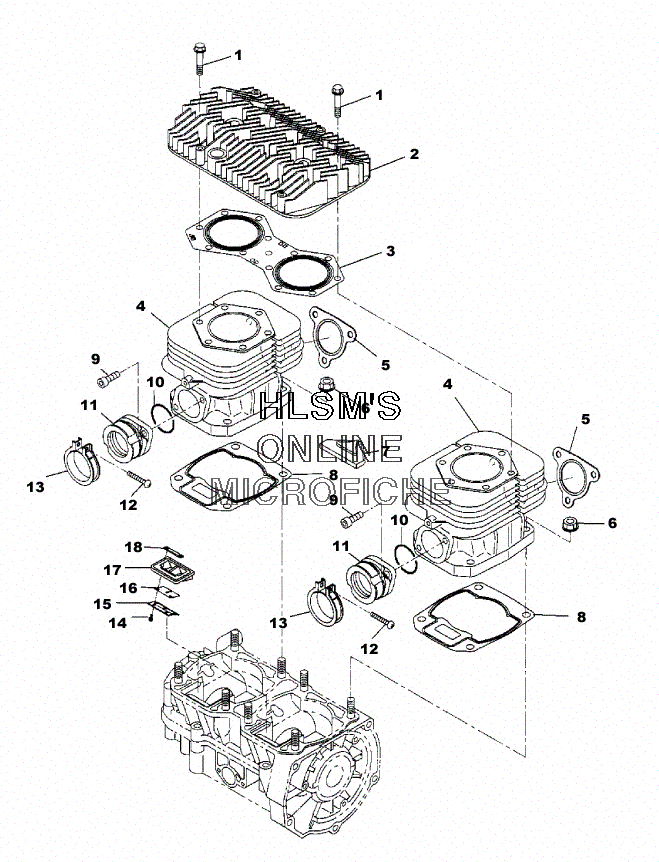

CYLINDER ASSEMBLY для Polaris XCF SP EDGE (S01NX4FS) - 2001 года выпуска
-
№АртикулНазвание
-
13084271 BOLT, FLANGEBOLT, FLANGE
-
23086385 CYLINDER , HEADCYLINDER , HEAD
-
33085668 GASKET, HEADGASKET, HEAD
-
43086974 CYLINDERCYLINDER
-
53085714 GASKET, EXHAUSTGASKET, EXHAUST
-
63082911 NUT, FLANGENUT, FLANGE
-
73085692 COVER, CYLINDER BAFFLECOVER, CYLINDER BAFFLE
-
83085666 GASKET, CYLINDERGASKET, CYLINDER
-
93081330 BOLT, ALLENBOLT, ALLEN
-
103085619 O-RINGO-RING
-
113085670 ADAPTER (INCL. 10)ADAPTER (INCL. 10)
-
123081497 SCREWSCREW
-
133083166 BAND ASSY. (INCL. 12)BAND ASSY. (INCL. 12)
-
143085717 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
153086387 STOPPERSTOPPER
-
163085715 VALVE, REEDVALVE, REED
-
173086386 VALVE, REED ASSY. (INCL. 14, 18)VALVE, REED ASSY. (INCL. 14, 18)
-
183086388 PLATEPLATE
