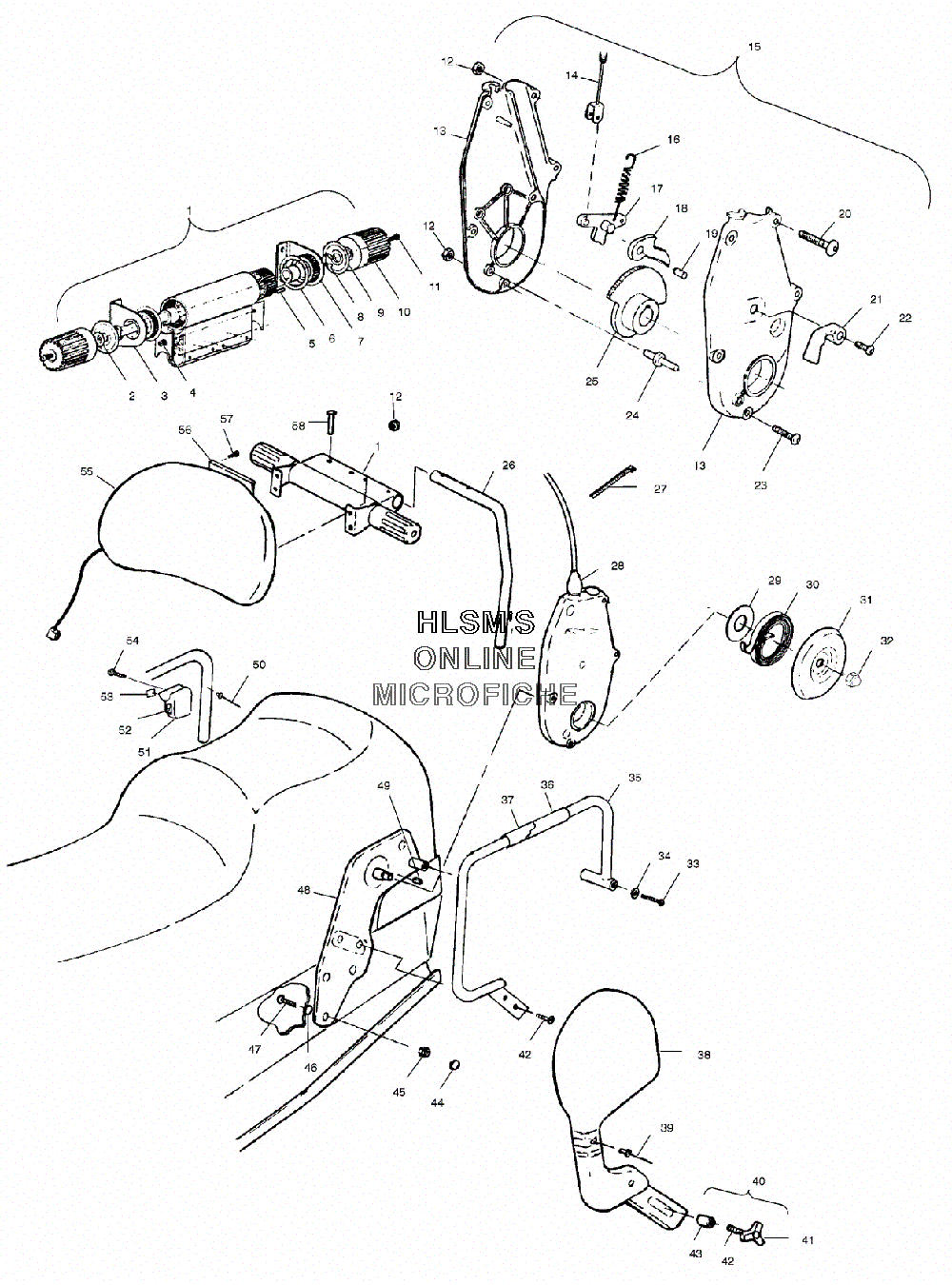

BACKREST ASSEMBLY для Polaris 500 CLASSIC TOURING (S02ST4BS) - 2002 года выпуска
-
№АртикулНазвание
-
11012534 ADJUST ASSY, BACKREST CUSHION (INCL. 2, 5, 8, 9, 11)ADJUST ASSY, BACKREST CUSHION (INCL. 2, 5, 8, 9, 11)
-
27571635 WASHER, WAVEWASHER, WAVE
-
31012535 BRACKET, MOUNTINGBRACKET, MOUNTING
-
47511866 SCREWSCREW
-
57721118 KEY, SQUAREKEY, SQUARE
-
65432113 SEAL, BACKRESTSEAL, BACKREST
-
75131207 ROTORROTOR
-
87710901 E-RINGE-RING
-
97571634 WASHERWASHER
-
105432112 KNOB, ADJUSTKNOB, ADJUST
-
117512087 SCREWSCREW
-
127542122 NUT, LOCKNUT, LOCK
-
135131211 HOUSING, ADJUST BACKREST (LEFT)HOUSING, ADJUST BACKREST (LEFT)
-
135131212 HOUSING, ADJUST BACKREST (RIGHT)HOUSING, ADJUST BACKREST (RIGHT)
-
147080582 CABLE ASSY, ACTUATORCABLE ASSY, ACTUATOR
-
151013409 BACKREST ASSY, ADJUSTER (INCL. 12, 25)BACKREST ASSY, ADJUSTER (INCL. 12, 25)
-
167041411 SPRING, LOCKINGSPRING, LOCKING
-
171013410 LOCKING ASSY, PAWL MASTER (LEFT) (INCL. PIN AND RETAINING RING)LOCKING ASSY, PAWL MASTER (LEFT) (INCL. PIN AND RETAINING RING)
-
171013411 LOCKING ASSY, PAWL (RIGHT) (INCL. PIN AND RETAINING RING)LOCKING ASSY, PAWL (RIGHT) (INCL. PIN AND RETAINING RING)
-
185245042 SECTOR, ENGAGEMENT PMSECTOR, ENGAGEMENT PM
-
195020806 PIN, PIVOTPIN, PIVOT
-
207515171 BOLTBOLT
-
215631126-067 LEVER, LOCKING (BLACK)LEVER, LOCKING (BLACK)
-
227516915 SCREWSCREW
-
237515170 BOLTBOLT
-
245020822 STUD, LIMITERSTUD, LIMITER
-
255245039 GEAR, STATIONARYGEAR, STATIONARY
-
265224761-067 TUBE, BACKREST MOUNT (BLACK)TUBE, BACKREST MOUNT (BLACK)
-
277080138 STRAP PANDUITSTRAP PANDUIT
-
285432259 COVER, CABLE (BLACK)COVER, CABLE (BLACK)
-
297555926 WASHER, THRUSTWASHER, THRUST
-
307041412 SPRING, TORSION, PRELOADSPRING, TORSION, PRELOAD
-
315241935-067 COVER, SPRING (1/2'' ID) (BLACK)COVER, SPRING (1/2'' ID) (BLACK)
-
327547015 NUTNUT
-
337512307 SCREWSCREW
-
347555734 WASHERWASHER
-
351012657-067 HANDLE, GRAB (LEFT/BLACK)HANDLE, GRAB (LEFT/BLACK)
-
351012658-067 HANDLE, GRAB (RIGHT/BLACK)HANDLE, GRAB (RIGHT/BLACK)
-
362460721 GRIP, HEATED PASS.GRIP, HEATED PASS.
-
375811725 TAPE, FOAMTAPE, FOAM
-
385432078 DEFLECTOR, AIR (LEFT)DEFLECTOR, AIR (LEFT)
-
385432079 DEFLECTOR, AIR (RIGHT)DEFLECTOR, AIR (RIGHT)
-
397621341 RIVETRIVET
-
401012385 KNOB, GRAB HANDLE (INCL. 41, 43)KNOB, GRAB HANDLE (INCL. 41, 43)
-
415630386-067 KNOB, BACKRESTKNOB, BACKREST
-
427515328 BOLTBOLT
-
435432123 SPACER, ADJUST KNOBSPACER, ADJUST KNOB
-
447080592 CAPLUG (3/4'')CAPLUG (3/4'')
-
457542324 NUTNUT
-
467547030 PALNUTPALNUT
-
477512377 BOLTBOLT
-
481012539-067 MAINFRAME (LEFT/BLACK)MAINFRAME (LEFT/BLACK)
-
481012540-067 MAINFRAME (RIGHT/BLACK)MAINFRAME (RIGHT/BLACK)
-
497721125 KEY, HI PROKEY, HI PRO
-
507621229 RIVETRIVET
-
515432120 HOUSING, SWITCHHOUSING, SWITCH
-
522460537 HARNESS, PASS. GRIP HEATER SWITCHHARNESS, PASS. GRIP HEATER SWITCH
-
537075418 DECAL (HIGH/LOW/OFF)DECAL (HIGH/LOW/OFF)
-
547527815 SCREW, TAPPINGSCREW, TAPPING
-
552682757 BACKREST CUSHION ASSY., W/LIGHTBACKREST CUSHION ASSY., W/LIGHT
-
552682758 BACKREST, COVER W/LIGHTBACKREST, COVER W/LIGHT
-
562432040 TAILLIGHT ASSY., BACKRESTTAILLIGHT ASSY., BACKREST
-
564030015 BULB TAILLIGHT/TACH/SPEEDOMETERBULB TAILLIGHT/TACH/SPEEDOMETER
-
577512054 SCREWSCREW
-
587661637 RIVET, INTERLOCKRIVET, INTERLOCK
