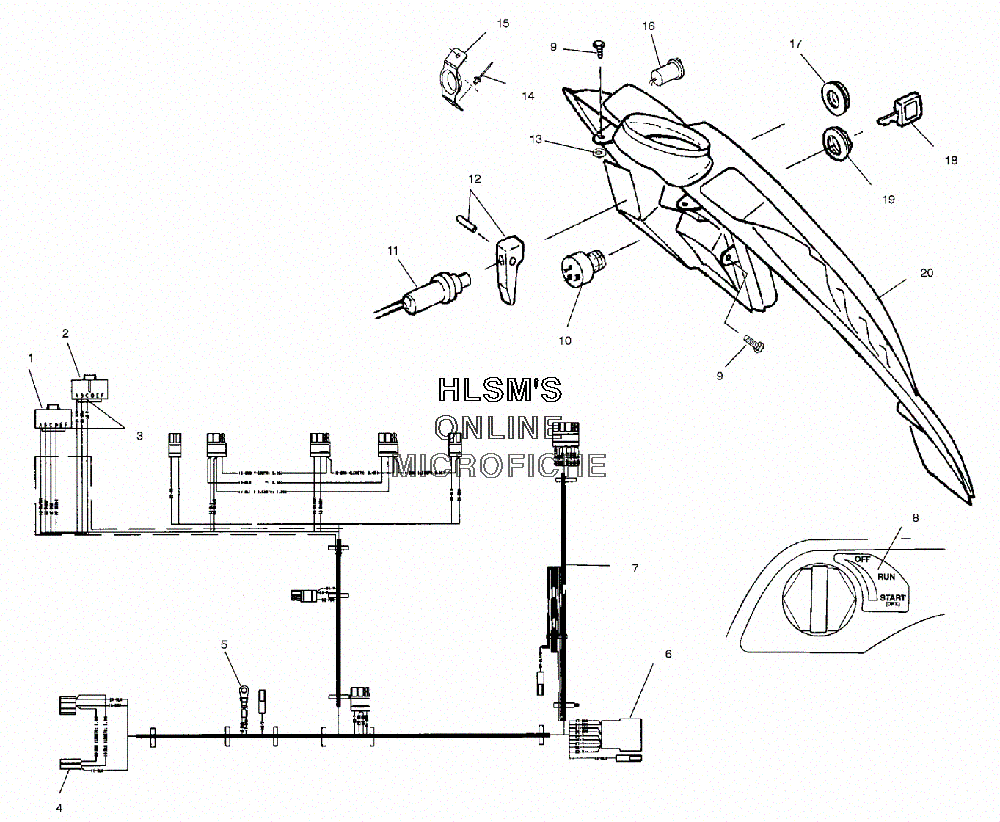

CONSOLE для Polaris 500 CLASSIC TOURING (S02ST4BS) - 2002 года выпуска
-
№АртикулНазвание
-
14010194 HOUSING, CONNECTOR, PAC #12064860HOUSING, CONNECTOR, PAC #12064860
-
24010193 HOUSING, CONNECTOR, PAC #12186213HOUSING, CONNECTOR, PAC #12186213
-
34010192 SOCKET, PACKARD #12047767SOCKET, PACKARD #12047767
-
44020063 HOUSINGHOUSING
-
54020092 TERMINAL, RINGTERMINAL, RING
-
64020057 HOUSING W/RECEPTACLEHOUSING W/RECEPTACLE
-
72460799 HARNESS, MAINWIREHARNESS, MAINWIRE
-
87077367 DECAL, CONSOLE IGNITIONDECAL, CONSOLE IGNITION
-
97515199 SCREWSCREW
-
102200358 IGNITION SWITCHIGNITION SWITCH
-
117080753 CABLE, CHOKE (INCL. 12, 17)CABLE, CHOKE (INCL. 12, 17)
-
122200188 CHOKE CONTROL KIT (INCL. PIN)CHOKE CONTROL KIT (INCL. PIN)
-
137555932 WASHER, NYLONWASHER, NYLON
-
147621330 RIVET, POPRIVET, POP
-
155243049 GUIDE, RECOILGUIDE, RECOIL
-
164010283 RECEPTACLE, POD MNTRECEPTACLE, POD MNT
-
175432944 NUT, CHOKENUT, CHOKE
-
185410611 IGNITION KEYIGNITION KEY
-
197547035 NUT, IGNITIONNUT, IGNITION
-
205434335 CONSOLE, REV POWER PLUGCONSOLE, REV POWER PLUG
