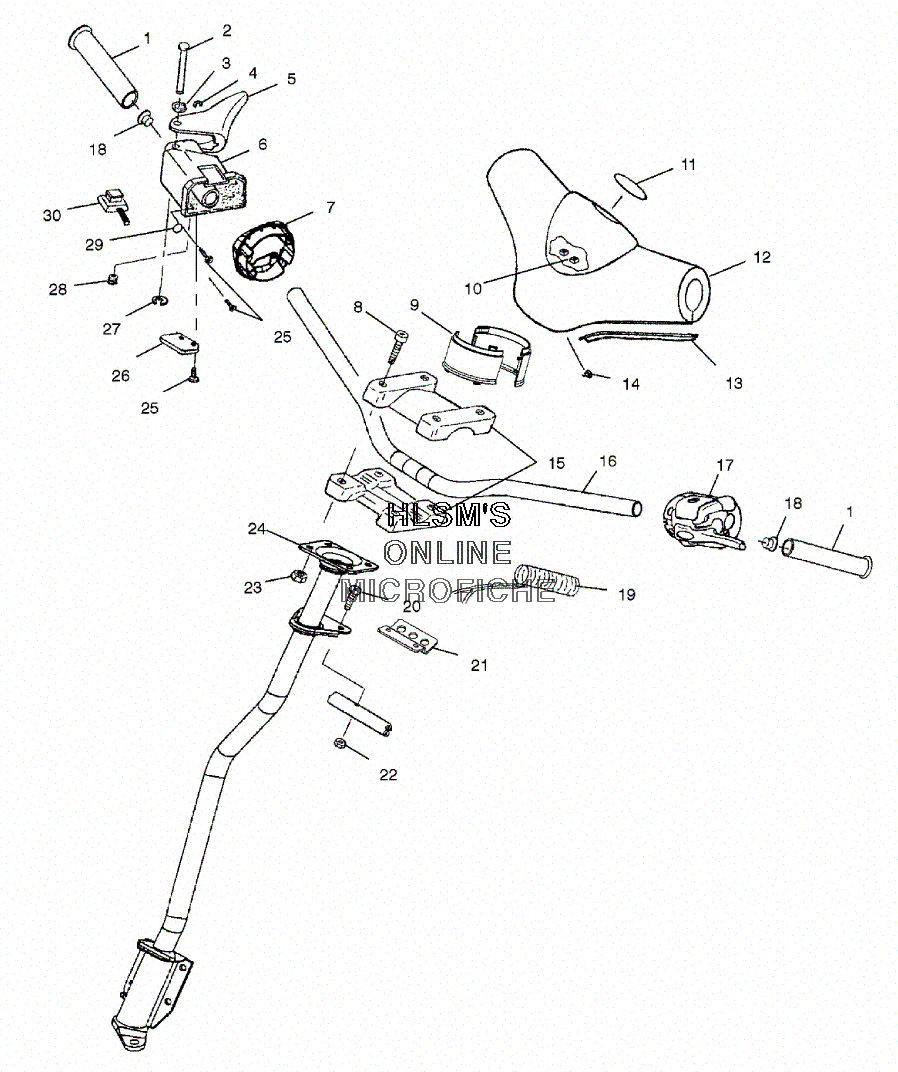

HANDLEBAR ASSEMBLY для Polaris 500 CLASSIC TOURING (S02ST4BS) - 2002 года выпуска
-
№АртикулНазвание
-
15432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
27661624 PIN, HINGEPIN, HINGE
-
37555730 WASHERWASHER
-
47710503 RETAINING, RINGRETAINING, RING
-
55432970 THROTLE, LEVER (35.5MM)THROTLE, LEVER (35.5MM)
-
52010171 LEVER ASSY., HEATER (HI/LO) (35.5MM)LEVER ASSY., HEATER (HI/LO) (35.5MM)
-
65431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
75433345 ADAPTER, BLOCK THROTTLEADAPTER, BLOCK THROTTLE
-
87517238 SCREWSCREW
-
95433331 BOOT, HANDLEBARBOOT, HANDLEBAR
-
107670106 NUT, PUSH ONNUT, PUSH ON
-
115434179 EMBLEM, ''STAR'' HANDLEBAREMBLEM, ''STAR'' HANDLEBAR
-
125433159-070 COVER, HANDLEBAR (BLACK)COVER, HANDLEBAR (BLACK)
-
135433160-070 SLIDE, HANDLEBAR COVER (BLACK)SLIDE, HANDLEBAR COVER (BLACK)
-
144010287 DART, CLIP NYLON (BLACK)DART, CLIP NYLON (BLACK)
-
155630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
165243355-067 HANDLE BAR (BLACK)HANDLE BAR (BLACK)
-
172010167 CONTROL ASSY (LEFT)CONTROL ASSY (LEFT)
-
185431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
192460677 HEATER, GRIP (LO/MED/HI)HEATER, GRIP (LO/MED/HI)
-
207517377 SCREWSCREW
-
215242553-067 BRACKET, RETENTION (BLACK)BRACKET, RETENTION (BLACK)
-
227542103 NUT, LOCKNUT, LOCK
-
237542122 NUT, LOCKNUT, LOCK
-
241820801-067 STEERING POSTSTEERING POST
-
257511848 SCREW SEMSSCREW SEMS
-
265432261 HOLDER, WIREHOLDER, WIRE
-
277710401 E-RINGE-RING
-
287512465 SCREWSCREW
-
297555727 RIVET BURRRIVET BURR
-
304110106 SWITCH, AUX.SHUT OFFSWITCH, AUX.SHUT OFF
