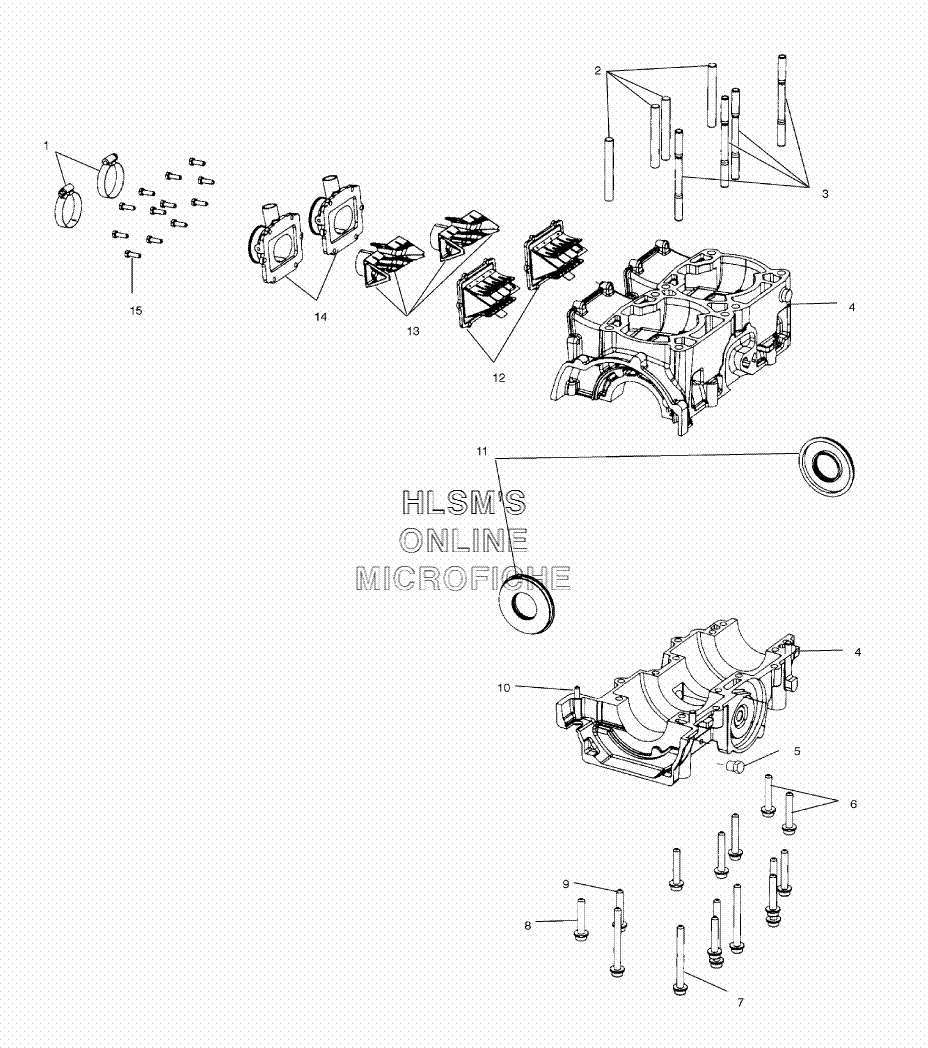

CRANKCASE ASSEMBLY для Polaris 500 RMK 136 (S02SR5AS) - 2002 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSECLAMP, HOSE
-
25132196 STUD, CYLINDER (81 MM)STUD, CYLINDER (81 MM)
-
35132197 STUD, CYLINDER (118 MM)STUD, CYLINDER (118 MM)
-
42201931 CRANKCASE KIT (INCL. 2, 3, 5 10)CRANKCASE KIT (INCL. 2, 3, 5 10)
-
57051529 PLUGPLUG
-
67517785 BOLTBOLT
-
77517784 BOLTBOLT
-
87516825 SCREWSCREW
-
97517786 BOLTBOLT
-
107663001 PIN, DOWELPIN, DOWEL
-
115411394 SEAL, FLANGEDSEAL, FLANGED
-
121202249 REED VALVE ASSY., W/HOLESREED VALVE ASSY., W/HOLES
-
135432852 STUFFER, REED (75.5MM) (38MM.CARB)STUFFER, REED (75.5MM) (38MM.CARB)
-
141253217 ADAPTER, CARBURETORADAPTER, CARBURETOR
-
157516822 SCREWSCREW
