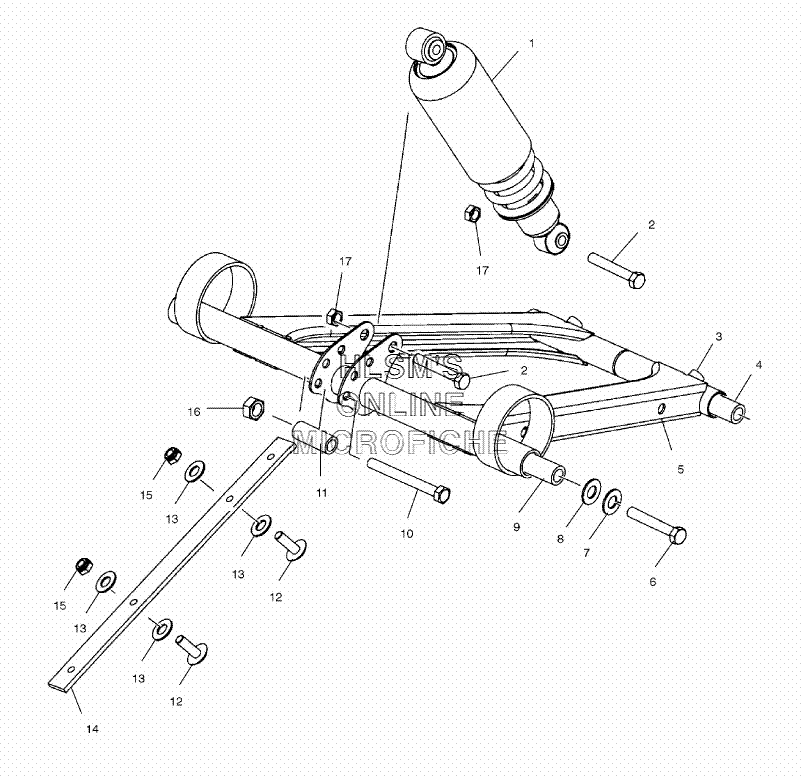

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 500 RMK 136 (S02SR5AS) - 2002 года выпуска
-
№АртикулНазвание
-
17041766 SHOCK, TRACK XL 136 (FRONT)SHOCK, TRACK XL 136 (FRONT)
-
15245067 RETAINER SPRING GAB PLATEDRETAINER SPRING GAB PLATED
-
15430671 SHIELD SPRINGSHIELD SPRING
-
17041253-067 SPRING, COMP (BLACK)SPRING, COMP (BLACK)
-
15630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
27512410 BOLTBOLT
-
37080424 FITTING, LUBEFITTING, LUBE
-
45333511 SHAFTSHAFT
-
51541522-067 ARM, FRONT TORQUE (BLACK)ARM, FRONT TORQUE (BLACK)
-
67517435 BOLTBOLT
-
77552603 WASHERWASHER
-
87555893 WASHERWASHER
-
95020908 SHAFTSHAFT
-
107515319 BOLTBOLT
-
115333897 BUSHINGBUSHING
-
127517313 SCREWSCREW
-
137556175 WASHERWASHER
-
145811655 STRAP, LIMITERSTRAP, LIMITER
-
157542344 NUT, NYLOCNUT, NYLOC
-
167542324 NUTNUT
-
177547025 NUT, NYLOKNUT, NYLOK
