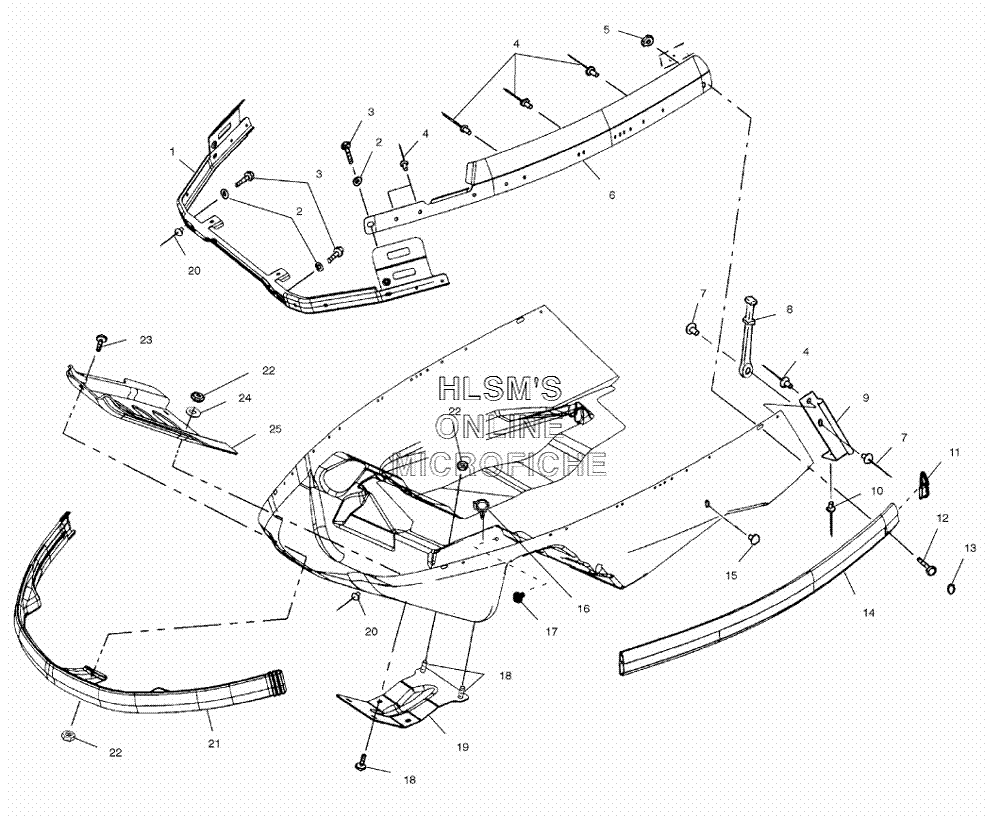

NOSEPAN ASSEMBLY #2 для Polaris 500 RMK 136 (S02SR5AS) - 2002 года выпуска
-
№АртикулНазвание
-
11012783-067 BRACE HINGE (BLACK)BRACE HINGE (BLACK)
-
27552801 LOCK, WASHERLOCK, WASHER
-
37512276 BOLTBOLT
-
47621402 POP, RIVETPOP, RIVET
-
57542103 NUT, LOCKNUT, LOCK
-
65243005 GUIDE, HOOD (LEFT)GUIDE, HOOD (LEFT)
-
65243006 GUIDE, HOOD (RIGHT)GUIDE, HOOD (RIGHT)
-
77621601 RIVETRIVET
-
85410370 STRAP, HOOD LATCHSTRAP, HOOD LATCH
-
95220522-067 BRACE, PAN (LEFT)BRACE, PAN (LEFT)
-
95220523-067 BRACE, PAN (RIGHT)BRACE, PAN (RIGHT)
-
107621433 RIVETRIVET
-
115432887 CAP, BUMPER (LEFT/BLACK)CAP, BUMPER (LEFT/BLACK)
-
115432888 CAP, BUMPER (RIGHTBLACK)CAP, BUMPER (RIGHTBLACK)
-
127515166 SCREWSCREW
-
137080416 PLUG, HOLEPLUG, HOLE
-
145243460-067 EXTRUSION BUMPER, FORMED (LEFT/BLACK)EXTRUSION BUMPER, FORMED (LEFT/BLACK)
-
145243461-067 EXTRUSION BUMPER, FORMED (RIGHT/BLACK)EXTRUSION BUMPER, FORMED (RIGHT/BLACK)
-
155410344 PLUGPLUG
-
164020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
175410820 PLUG, NOSEPAN HOLEPLUG, NOSEPAN HOLE
-
187512193 BOLTBOLT
-
195242575-067 BRACE PAN (LOWER/BLACK)BRACE PAN (LOWER/BLACK)
-
207621463 RIVETRIVET
-
215432891-070 BUMPER (FRONT/BLACK)BUMPER (FRONT/BLACK)
-
227542122 NUT, LOCKNUT, LOCK
-
237515175 BOLTBOLT
-
247558301 WASHERWASHER
-
255243820 BRACE, PAN (UPPER)BRACE, PAN (UPPER)
