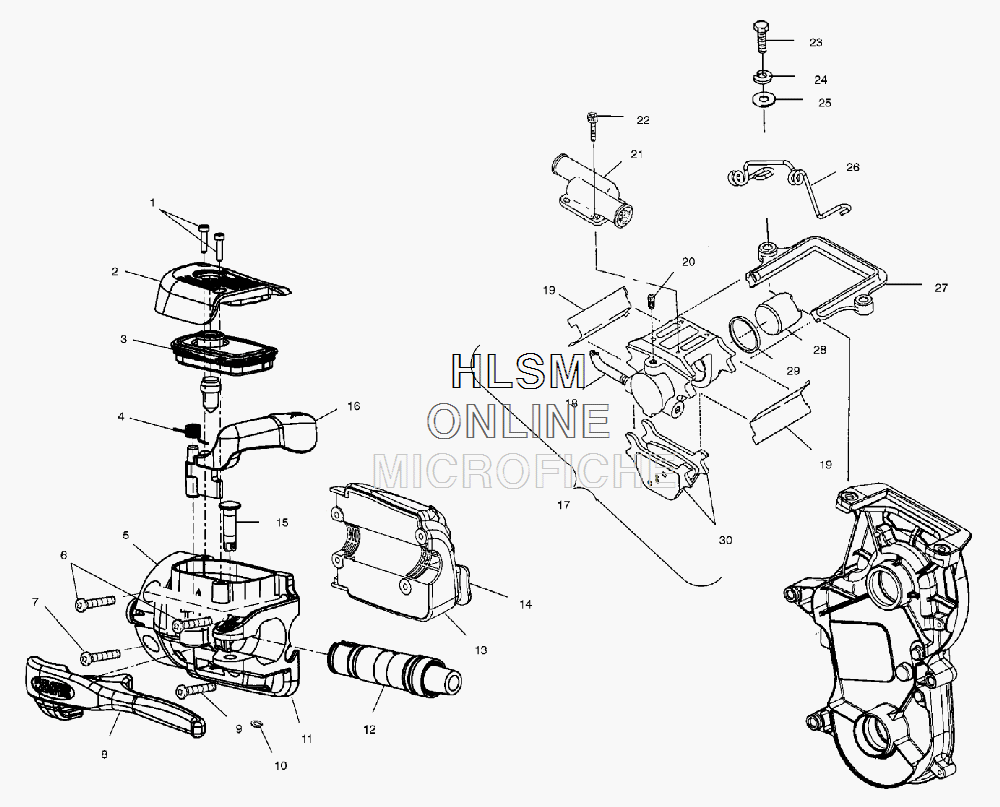

BRAKE ASSEMBLY для Polaris 500 XC SP EDGE (S02NP5CSA) - 2002 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW KITCOVER SCREW KIT
-
22201255 COVER ASSY. (INCL. 1, 3)COVER ASSY. (INCL. 1, 3)
-
42201250 PARKLEVER SPRING KITPARKLEVER SPRING KIT
-
52202146 MASTER CYLINDER ASSY. (INCL. 2, 4, 8, 11, 12, 15)MASTER CYLINDER ASSY. (INCL. 2, 4, 8, 11, 12, 15)
-
67517441 SCREWSCREW
-
77512078 SCREWSCREW
-
82201943 LEVER KIT (3 NOTCH/PIN/RING)LEVER KIT (3 NOTCH/PIN/RING)
-
97517566 SCREWSCREW
-
102201945 SNAP RING KITSNAP RING KIT
-
112202146 MASTER CYLINDER ASSY.MASTER CYLINDER ASSY.
-
114010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
122201944 5/8'' CARTRIDGE SUB ASSY.5/8'' CARTRIDGE SUB ASSY.
-
132010167 CONTROL ASSY. (LEFT)CONTROL ASSY. (LEFT)
-
145433291 BUTTON, SWITCH HI/LOBUTTON, SWITCH HI/LO
-
152201946 PIVOT PIN KIT (W/SNAP RING)PIVOT PIN KIT (W/SNAP RING)
-
162201251 PARKLEVER AND SPRING KIT (INCL. 4)PARKLEVER AND SPRING KIT (INCL. 4)
-
171910344 BRAKE CALIPER (INCL. 28, 29, 30)BRAKE CALIPER (INCL. 28, 29, 30)
-
181910546 LINE, BRAKE EDGELINE, BRAKE EDGE
-
192200467 CLIP SPRING KIT (QTY. 2)CLIP SPRING KIT (QTY. 2)
-
201930735 INLET KITINLET KIT
-
211930728 COOLER, WATER BRAKECOOLER, WATER BRAKE
-
212201024 GASKET, BRAKE COOLERGASKET, BRAKE COOLER
-
221930729 SCREW SET (PKG. OF 4)SCREW SET (PKG. OF 4)
-
237515521 BOLTBOLT
-
247552603 WASHERWASHER
-
257555801 WASHERWASHER
-
265244413 GUIDE, ROPEGUIDE, ROPE
-
271930733 CALIPER BRACKET KITCALIPER BRACKET KIT
-
281930734 PISTON SEAL KIT (INCL. 29)PISTON SEAL KIT (INCL. 29)
-
292200466 SEALSEAL
-
302201430 BRAKE, PAD KIT (INCL. 19)BRAKE, PAD KIT (INCL. 19)
